XPG Easy Updater v0.3 r2(2.0.17150.0 Incl Dashlaunch v3.14) Update your Jtag/RGH in 1-2 Minutes!

hafren · Jan 7, 2015

great

stemuz · Jan 7, 2015

thanks

CharlyBrown1983 · Jan 7, 2015

thx

essam315 · Jan 7, 2015

Thanks, this is a great tool

saymne · Jan 8, 2015

FeralA9X said:

========================================================

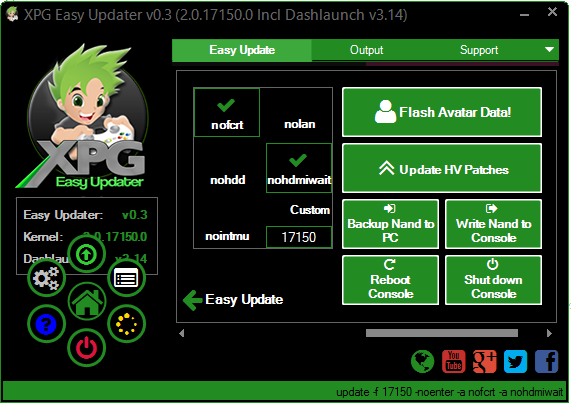

XPG Easy Updater v0.3(2.0.17150.0 Incl Dashlaunch v3.14)
========================================================

This is not a standalone GUI, it uses xebuild to build and update your console. All the options available in this GUI can be done via command line, this was made to be very user friendly and easy to understand.

There are two versions included in this release.
v0.3 lite: A basic updater, no options besides Forced IP.

v0.3: Has almost all options from the xeBuild update and client modes.

Thanks to the xeBuild team for giving us this great easy way to update your console and for updserv, JPizzle @ RMS for the original tutorial and begallegal for the XPG tutorial and original .bat idea Huge thanks also to the Dashlaunch team.

You must be running updsvr_standalone_v1 on your console for this GUI and xebuild to connect and perform maintenance on your console.

Setting up updsvr
==================

1. Extract the updsvr_standalone_v1.zip to a folder and transfer the default.xex to the root of a usb drive.

2. Plug the usb drive into your console and power it up. You should now see updsvr on your console.

Easy Update
=============
1. Open the XPGUpdater.exe and click the Update Now! button.
Yes it is really that simple to update your console.

Once the console powers down after flashing remove the usb drive and it will now load into your dashboard set within your launch.ini

If you have any issues connecting to your console try using the Force IP option.

Advanced options
==================

To perform these advanced options you will also need updsvr_standalone_v1 running on your console, simply switch to the advanced options tab and choose your settings.

------------
Options
------------
Check the appropriate options for your build and then navigate back to the Easy Updater page and click the Update Now! button.

nofcrt - removes fcrt.bin requirement on some drives
nohdd - disables detection of internal SATA HDD
nohdmiwait - HDMI consoles will no longer wait or EXX screen when video is not ready
nolan - disables wired LAN to prevent E75/76/77 on machines with a damaged PHY
nointmu - disables jasper NANDmu, trinity 4G internal USB and corona 4G MMC memory units

There is a Refresh button in the radial menu to clear all options and output window etc, simply click the home button.

-----------------------
Custom Update
-----------------------
This is used if you would like to flash a different kernal to your console, simply put the dash folder(eg. 16767) into the main XPG Updater folder.
Extract the $SystemUpdate.zip (for the specific kernal) into this folder, You should now have a $systemUpdate folder and a bin folder in there.
Check the "Custom" option in XPG Easy Updater and put the name of your folder in the text box (eg. 16767), navigate back to the Easy Update tab and click "Update Now!".

You should now be on your custom kernal instead of the inbuilt 17150 kernal.

------------------------------
Flashing Avatar data
------------------------------
Simply navigate to the advanced options tab again and click the Flash Avatar Data! button, this will ignore any other options selected and flash the 17150 avatar data directly to your console.

----------------------------
Update HV Patches
----------------------------
This option is specifically for updating from older kernels where the HV patches are to old to use the update feature from within xeBuild.
More specifically if you get this error "*****ERROR: console hv patches are not recent enough to support update mode! update console patches and reboot before trying again."

Navigate back to the advanced options tab and click the "Update HV Patches" button, after updating the patches you should now be able to use the app to update your console.

-----------------------------------
Backup your nand to PC
-----------------------------------
Click the "Backup Nand to PC" button from the advanced settings tab and it will backup a copy directly to the XPG Easy Updater folder.

---------------------------------
Write Nand to Console
---------------------------------
Place your updated nand into the XPG Easy Updater folder and rename it to nandflash.bin, click "Write Nand to Console" button to flash your image over ethernet or wifi.

---------------------------------
Reboot and Shut down
---------------------------------
Exactly as it states, click one of these to either reboot or shut down your console directly from your PC.

--------------------
Included Files
--------------------
- xeBuild 1.12
- Dashlaunch v3.14
- updsvr_standalone_v1
- 2.0.17150.0 System update files and patches

-----------------------------------
www.xpgamesaves.com
-----------------------------------

Any questions please ask in this topic.

GUI was built and coded by GoldZ & FeralA9X.
GFX by FeralA9X.
Tested by XPG Star.
Enjoy!

If you have any issues and need to update manually, Please check out XPG Star's thread here:

http://www.xpgamesaves.com/topic/115610-full-release-17150-xebuild-gui-dashlaunch/

Click to expand...

great

jerrold · Jan 8, 2015

awesome tutorial! thank you!

kezza2k14 · Jan 8, 2015

enjoy

yohansm1 · Jan 8, 2015

thanks

ATHANASIOS · Jan 8, 2015

THANKS FOR ALL FOLKS

pimplou22 · Jan 8, 2015

Great Job! Thank you so much!

Ersguterjunge · Jan 8, 2015

Thx

syunukiya · Jan 8, 2015

mave77 said:

Super Tool
Click to expand...

Thanks

syunukiya · Jan 8, 2015

feral please help i'm getting a hv not updated so i tried updating my hv and i get this error:

connected to Corona with updsvr version 3 (peek version 1)
Updating patches in auto mode: 16203\bin\patches_g2Corona.bin

***** ERROR: could not load 16203\bin\patches_g2Corona.bin, aborting

disconnecting from server...OK
---------------------------------------------------------------
xeBuild Finished. Have a nice day.
---------------------------------------------------------------

How can I fix?

syunukiya · Jan 8, 2015

This is my prior error before trying to update hv patches using hv updater:

*****ERROR: console hv patches are not recent enough to support update mode!

update console patches and reboot before trying again.

***** FATAL UPDATE ERROR: unable to parse info reply from console!

Straiker24 · Jan 8, 2015

big thx

trusacrifice · Jan 8, 2015

nice work

sandmatt · Jan 8, 2015

thanks

FeralA9X · Jan 8, 2015

syunukiya said:

feral please help i'm getting a hv not updated so i tried updating my hv and i get this error:

connected to Corona with updsvr version 3 (peek version 1)
Updating patches in auto mode: 16203\bin\patches_g2Corona.bin

***** ERROR: could not load 16203\bin\patches_g2Corona.bin, aborting

disconnecting from server...OK
---------------------------------------------------------------
xeBuild Finished. Have a nice day.
---------------------------------------------------------------

How can I fix?
Click to expand...

you could try copying the 16203 folder from any xebuild release to the XPGUpdater app folder, this will contain the HV patches for the kernel you are on, if it still does not work you can always update manually using the files provided in the support tab and use this program to flash your new nand.

baalderoth · Jan 8, 2015

thx mate. i'll try this plugin asap...

yavsak · Jan 9, 2015

thx so much
