Slim & Phat Replacement Heatsink??

gameroms Apr 19, 2014

  1. gameroms

    gameroms XPG
    55/94

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    Do you guys think I can Mod the bracket of this heatsink and make it work in a slim corona? I know the height of 40mm will be fine, the fan blows down toward the chip so I will have to flip the fan so it blows out the top of the case.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Model Name:
    Kozuti CPU Cooler

    Modell No.:
    SCKZT-1000

    Manufacturer:
    Scythe Co., Ltd. Japan

    Compatibility:
    Intel®:
    Socket LGA775
    Socket LGA1150
    Socket LGA1155
    Socket LGA1156
    Socket LGA1366

    AMD®:
    Socket AM2
    Socket AM2+
    Socket AM3
    Socket AM3+
    Socket FM1
    Socket FM2
    Socket FM2+

    Overall Dimensions:
    110 x 103 x 40 mm / 4.33 x 4.06 x1.58 in

    Weight Including Fan:
    250 g / 8.82 oz

    Accessory:
    Installation Guide, Thermal Grease


    Fan-Spezifications

    Model Name:
    PWM4-pin fan

    Model No.:
    SY8010SL12M-P

    Fan Dimensions:
    80 x 80 x 10 mm / 3.15 x 3.15 x 0.39 in

    Fan Speed:
    800 (±30%) - 3300upm (±10%) - regulated by PWM

    Air Flow:
    6.0CFM ~ 24.82CFM

    Noise Level:
    8.2 ~ 32.5dBA

    Input Power:
    2,4 W

    Input Current:
    0,20 A

    Voltage Range:
    12v


    http://www.scythe-eu.com/en/products/cpu-cooler/kozuti-cooler.html

  2. Renegade

    Renegade Super Special Awesome XPG Developer
    105/188

    Joined:
    Nov 19, 2009
    Messages:
    1,212
    Likes Received:
    894
    Trophy Points:
    105
    Gender:
    Male
    Location:
    United Kingdom
    Console:
    Xbox
    It should be fine to go ahead with, yes.

  3. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    I ordered one and it ships monday, so we will see how much I have to mod it to get it to fit & if it cools any better.

    i think i will have to make the holes a little bigger in the pic below because they are just 80mm x 80mm on the outside edge of the mounting holes. will prob have to dremel about 2mm off at the outer most point of the holes

    http://gyazo.com/eb0544cafcb6e73e76c0b20076ff0543

  4. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    I finally found 2 new Thermalright HR-03 GT (Discontinued) for my pre-nxe xenon jtag, I have been looking for these for awhile & they are hard to find new or used. The seller has 1 more if anyone is interested.

    Will see how much it helps both consoles and post results with a guide.

    I'm sure that I will have to relocate 3-4 caps on the cpu side.

    [​IMG]

    [​IMG]

  5. D33J

    D33J The 1
    45/47

    Joined:
    Sep 3, 2009
    Messages:
    901
    Likes Received:
    256
    Trophy Points:
    45
    Gender:
    Male
    Location:
    Raving Raving Everywhere
    Console:
    Xbox One
    If this fits your slim i might get 1 aswell looks nice ;)

  6. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    I just got it in today and It would require alot of effort to get it mounted. You would have to remove 1 cap & relocate it, mount the 12mm fan on top of the heatsink and make a custom bracket to hold it to the motherboard.
    scheduled a pickup for return to amazon.


    if we can find the thermalright hr-03 or hr-03 plus they will fit perfect & are only 38mm tall without the fan. But the hr-03 gt that I ordered for my phat is 51mm tall.

    All of the hr-03 series are discontinued products but they fit perfect with the included mounting brackets.

    The hr-03 gt will fit in a silm but you would have to mount the fan on the bottom of the heatsink like the scythe in this thread.

    I will continue my search for a replacement for the slim & post if I find anything that will work with minor mods.

  7. BillyBillium

    BillyBillium ϟƘƦƖןןΣ✘ Gold Subscriber
    35/47

    Joined:
    Jul 14, 2011
    Messages:
    285
    Likes Received:
    51
    Trophy Points:
    35
    Gender:
    Male
    Location:
    Tennessee, USA
    Console:
    Xbox
  8. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
  9. D33J

    D33J The 1
    45/47

    Joined:
    Sep 3, 2009
    Messages:
    901
    Likes Received:
    256
    Trophy Points:
    45
    Gender:
    Male
    Location:
    Raving Raving Everywhere
    Console:
    Xbox One
    Nice 1 m8 let me no if you come across 1 that will fit :)
    P.S if you do come across 1 do you think it will fit in a 360 e

  10. apollo3841

    apollo3841 UK JTAG/RGH Suppler ッ Lifetime Gold
    55/94

    Joined:
    Apr 17, 2014
    Messages:
    479
    Likes Received:
    224
    Trophy Points:
    55
    Gender:
    Male
    Location:
    England, Kent
    Home Page:
    Console:
    Other
    be sure to update us with the final review, looks interesting.

  11. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One

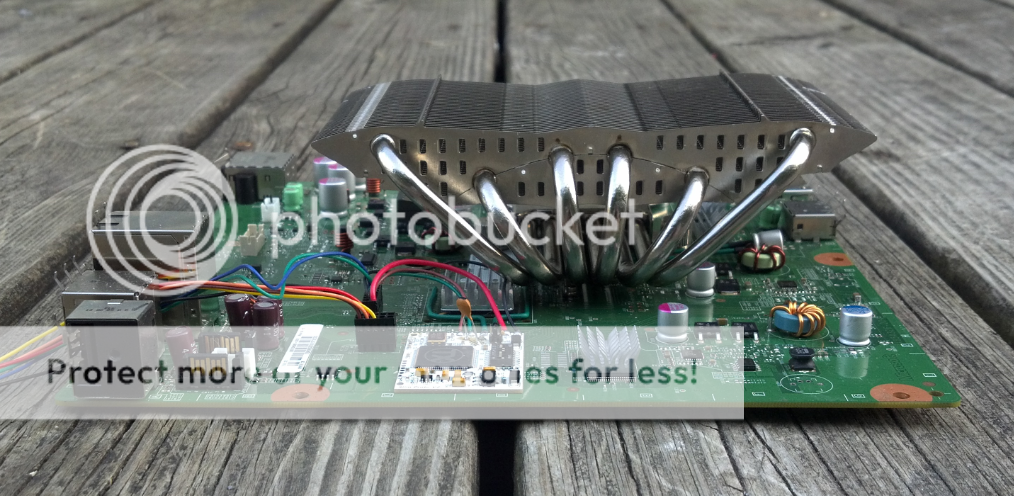

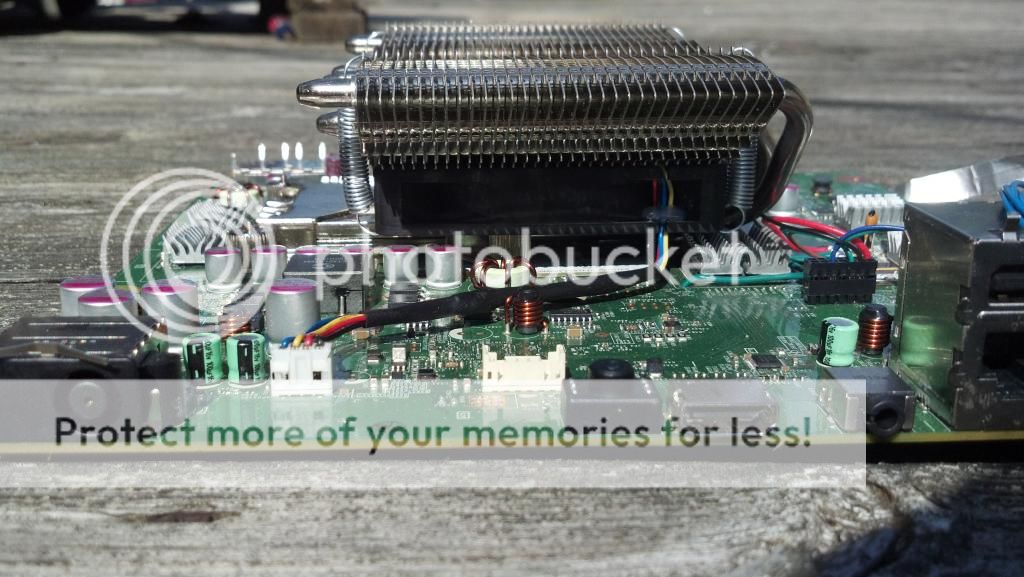

    Here is my pics of the xenon motherboard & 2 Thermalright HR-03 GT heatsinks, I had to relocate a few caps & inductors to get them to fit. Also had to remove the front usb ports to get it to fit on the cpu, I'll be adding the usb ports back when I have time to build the custom case.

    [​IMG]

    In the pic below I had to remove the inductors and replace them with 2 from a falcon board because they lay flat and the originals stood up.
    [​IMG]

    [​IMG]

    [​IMG]

  12. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    dbl post, sorry.

  13. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One

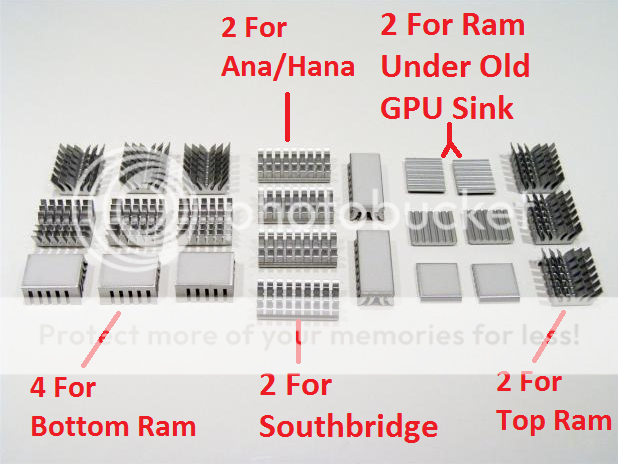

    Adding the other heatsinks today..

    [​IMG]

  14. D33J

    D33J The 1
    45/47

    Joined:
    Sep 3, 2009
    Messages:
    901
    Likes Received:
    256
    Trophy Points:
    45
    Gender:
    Male
    Location:
    Raving Raving Everywhere
    Console:
    Xbox One
    Thought you were doing it on a slim?

  15. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    I am, lol

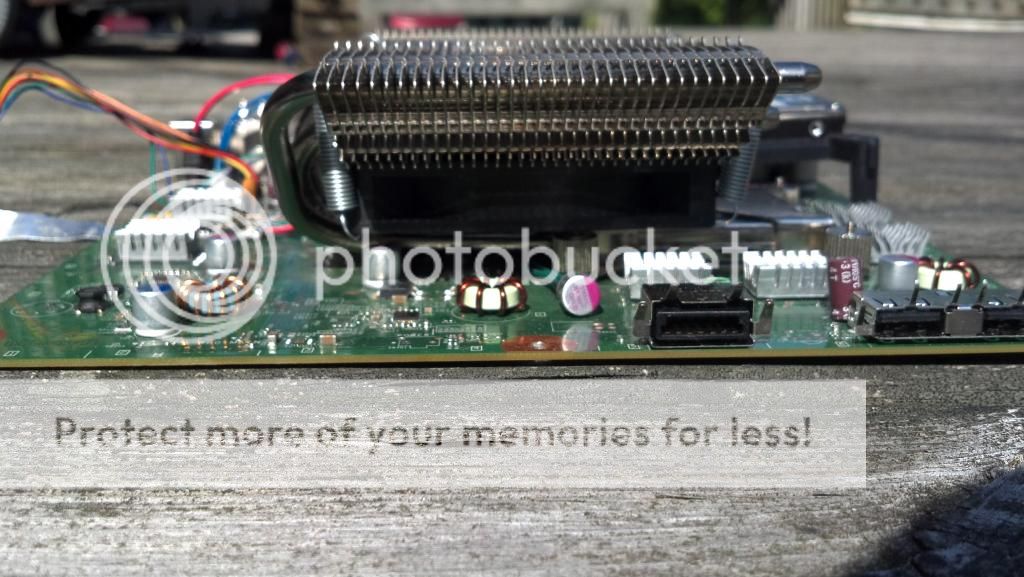

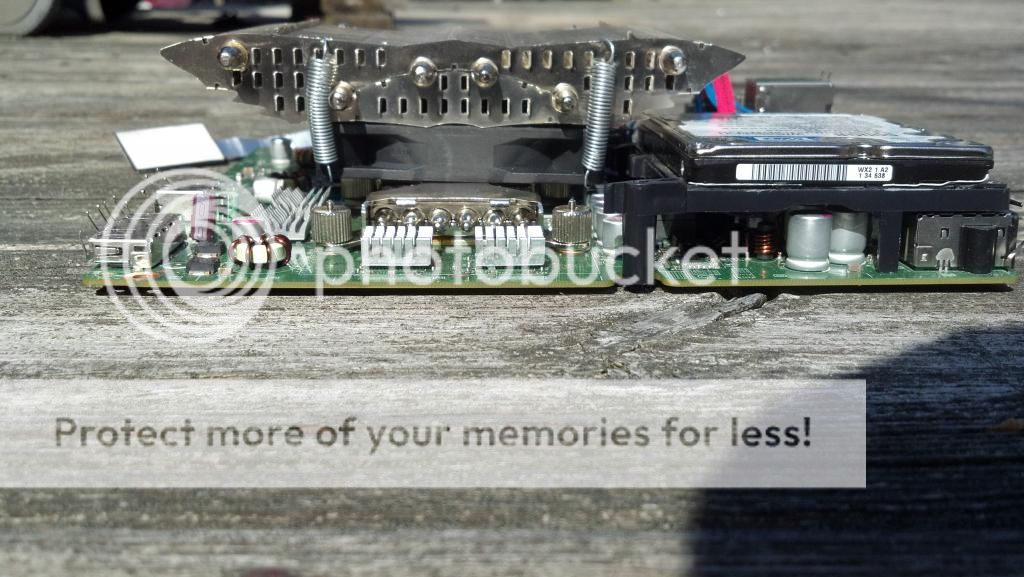

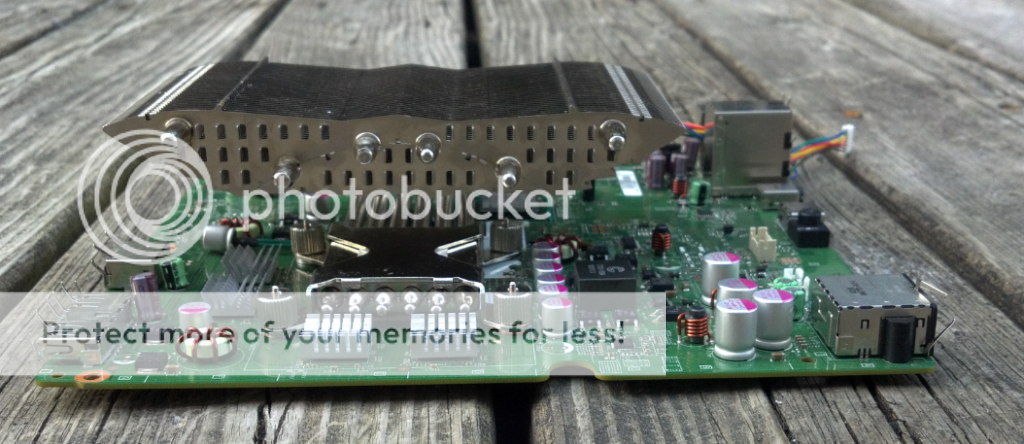

    [​IMG]

    [​IMG]

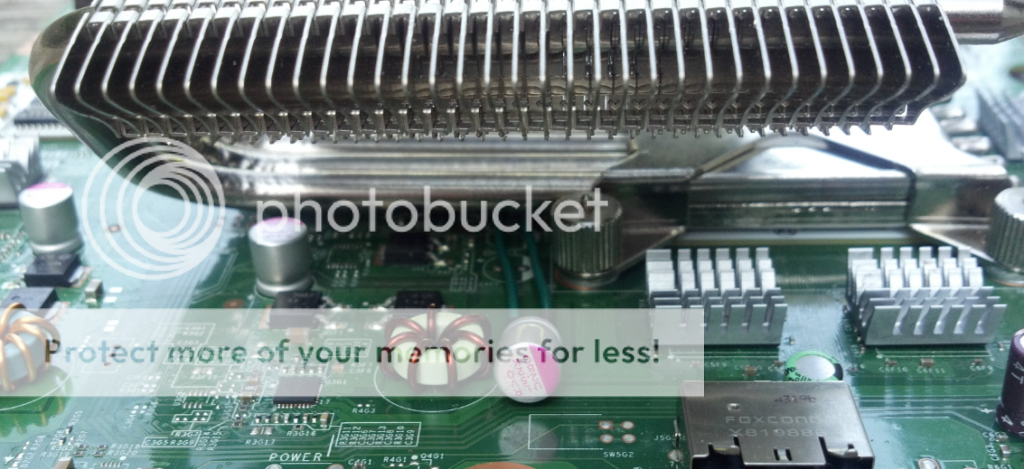

    In the pic below I had to relocate 1 cap to get the heatsink to fit.
    [​IMG]

    This is the temps with the heatsink, Ambient room temp was 24.4c when the img was taken.
    [​IMG]


    I don't use a dvd drive in any of my jtag/rgh's. I did have to customize the stock hdd tray to get it to fit, ill post pics of it soon.

  16. D33J

    D33J The 1
    45/47

    Joined:
    Sep 3, 2009
    Messages:
    901
    Likes Received:
    256
    Trophy Points:
    45
    Gender:
    Male
    Location:
    Raving Raving Everywhere
    Console:
    Xbox One
    OMG m8 it looks a beast :good: keep us updated m8 don't think i will go with something that big lol

  17. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    Anything designed to fit the same gfx card as the ThermalRight HR-03 GT should fit just like mine..

  18. D33J

    D33J The 1
    45/47

    Joined:
    Sep 3, 2009
    Messages:
    901
    Likes Received:
    256
    Trophy Points:
    45
    Gender:
    Male
    Location:
    Raving Raving Everywhere
    Console:
    Xbox One
    Wish i could get the kozuti CPU cooler that looks nice but thanks for the update m8 i will go on the hunt after i get my nandwich sorted out :)

  19. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    Finally found a good fan for the 360 Slim Heatsink Replacement. Still looking for a 92mm x 92mm x 15mm or 100mm x 100mm x15mm fan, but the 80mm will do for now.

    Delta EFC0812DB
    80x80x15mm
    48.8CFM
    41.0dBA
    0.33A
    3800RPM

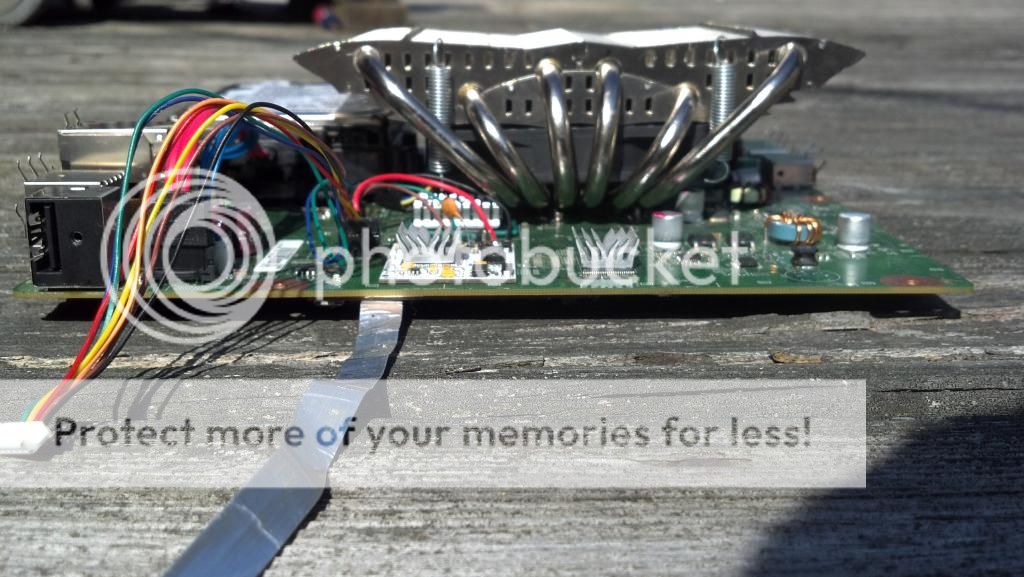

    Here are a few pics of the install.

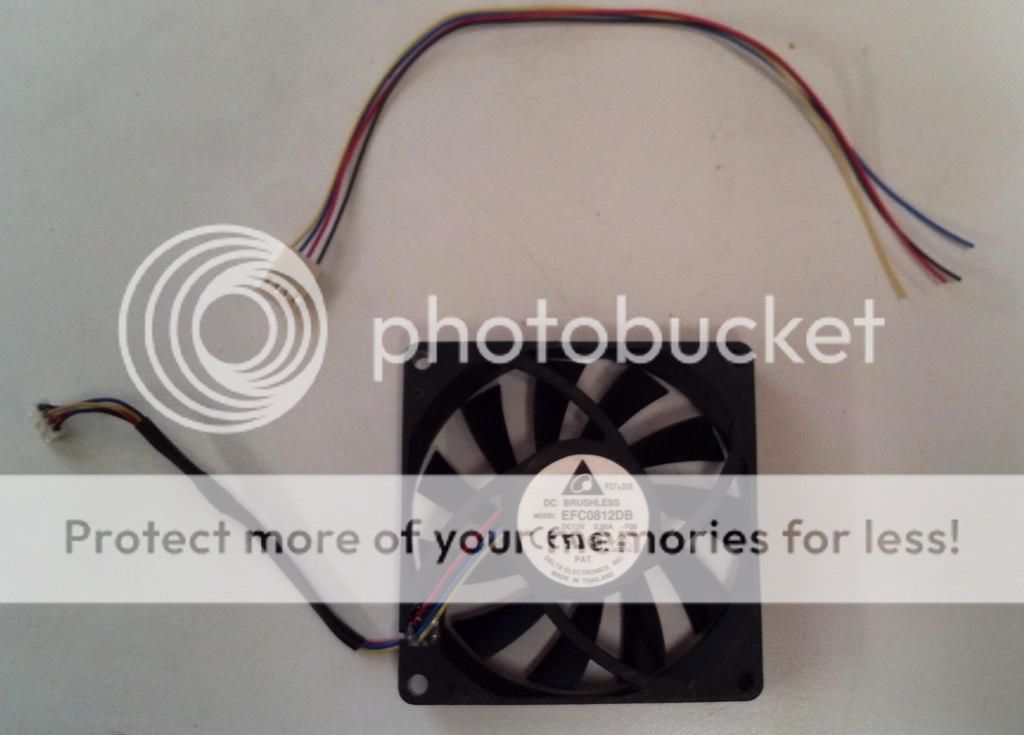

    Cut the pc connector off and replaced it with the slim fan connector.
    [​IMG]

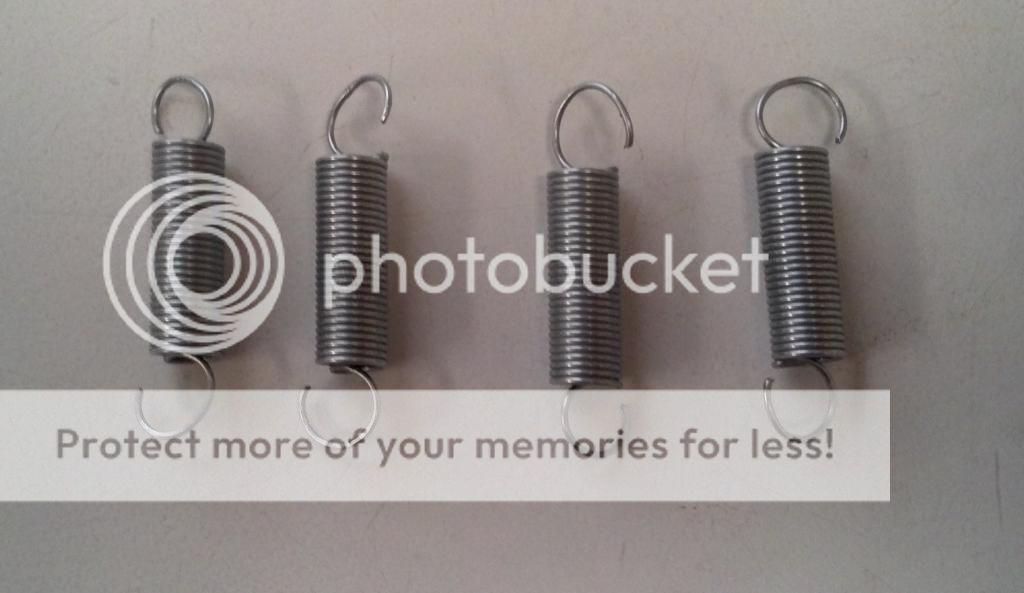

    Custom mounting hardware :)
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    UPDATE: THE YELLOW WIRE ON THE SLIM FAN CONNECTOR MUST BE SOLDERED TO THE BLUE WIRE ON THE FAN & THE BLUE WIRE ON THE SLIM FAN CONNECTOR MUST BE SOLDERED TO THE YELLOW WIRE ON THE FAN FOR IT TO RUN PROPERLY..

  20. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    Also removed the label from my WD5000BPVT 500gb Hdd and then applied some heatsinks to help cool it. Weather it helps or not I have no clue but it can't hurt.

    [​IMG]


    I left a gap in the thermal tape so that the vent hole could breathe if needed.
    [​IMG]
