Looking For A Tutorial For Extra Fan Header On Xenon.

gameroms Apr 6, 2014

  1. gameroms

    gameroms XPG
    205/282

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    Xenon motherboards have a spot to install a 3pin fan header on the motherboard directly behind the rf board and it's been so long since ive seen that tut and now I cant find it.

    If you can help me find it then id appreciate it..

  2. D33J

    D33J The 1
    45/47

    Joined:
    Sep 3, 2009
    Messages:
    901
    Likes Received:
    256
    Trophy Points:
    45
    Gender:
    Male
    Location:
    Raving Raving Everywhere
    Console:
    Xbox One
    I no its not much to go by but if you have the MB upside down with the RF board facing you the left is 12v and the right is 5v sorry if this didint help.

  3. Bu

    Bullet Guest

    I used to wire mine onto the DVD drive wires but that was mostly because i would do case mods for customers that wanted a third cooling fan installed, so it was for ease of install.

    [​IMG]

  4. D33J

    D33J The 1
    45/47

    Joined:
    Sep 3, 2009
    Messages:
    901
    Likes Received:
    256
    Trophy Points:
    45
    Gender:
    Male
    Location:
    Raving Raving Everywhere
    Console:
    Xbox One
    bullet do you no if that is the correct way around on my last post not %100 sure.

  5. MrDack

    MrDack All work, no play. Lifetime Gold
    0/47

    Joined:
    Nov 19, 2011
    Messages:
    1,512
    Likes Received:
    775
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Missouri
    Console:
    Xbox One
    Found this on another site
    [​IMG]

    That it?

  6. Bu

    Bullet Guest

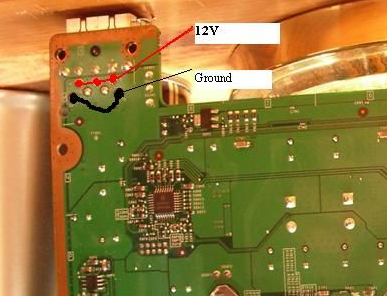

    Use these points:

    [​IMG]

  7. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    not it dack but thanks for trying to help.

    i'll take a pic here in a sec and post it.

  8. sensi420

    sensi420 Contributor TeamXPG
    205/282

    Joined:
    May 20, 2012
    Messages:
    2,531
    Likes Received:
    5,138
    Trophy Points:
    205
    Location:
    In your kitchen drinking your MILK!!!
    Console:
    Xbox

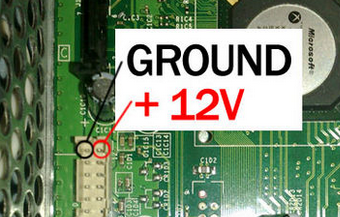

    [​IMG]

    he mean this spot behind the RF board.
    Solder your pin header there.

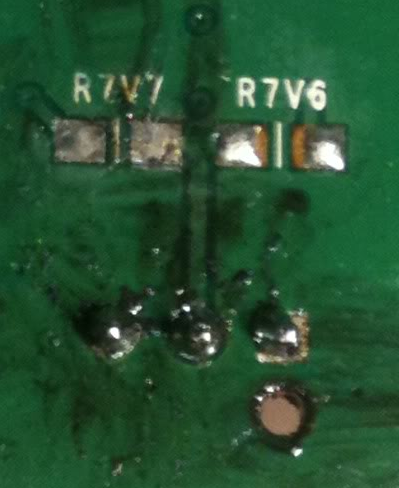

    Flip the board over and solder R7V7
    [​IMG]

  9. D33J

    D33J The 1
    45/47

    Joined:
    Sep 3, 2009
    Messages:
    901
    Likes Received:
    256
    Trophy Points:
    45
    Gender:
    Male
    Location:
    Raving Raving Everywhere
    Console:
    Xbox One
    Is the R7V7 12v or is it the 5v i forgot ?

  10. sensi420

    sensi420 Contributor TeamXPG
    205/282

    Joined:
    May 20, 2012
    Messages:
    2,531
    Likes Received:
    5,138
    Trophy Points:
    205
    Location:
    In your kitchen drinking your MILK!!!
    Console:
    Xbox
    12v

  11. D33J

    D33J The 1
    45/47

    Joined:
    Sep 3, 2009
    Messages:
    901
    Likes Received:
    256
    Trophy Points:
    45
    Gender:
    Male
    Location:
    Raving Raving Everywhere
    Console:
    Xbox One
    Nice 1 thanks m8 i will give this a go on my other 360 wasint sure ;)

  12. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    it's only on xenon consoles

  13. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    here is what i'm looking for, really just need to know if any resistors, caps or bridges are needed in the empty spots under the header or the empty spots under the motherboard.

    [​IMG]

    [​IMG]

  14. D33J

    D33J The 1
    45/47

    Joined:
    Sep 3, 2009
    Messages:
    901
    Likes Received:
    256
    Trophy Points:
    45
    Gender:
    Male
    Location:
    Raving Raving Everywhere
    Console:
    Xbox One
    Yep i no m8 i have one sitting in my room never had rrod av had it about 4-5 year now i think might be longer.
    Just use the pics Sensi420 added i might give this a go l8a or 2morrow

  15. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    Thx to everyone for helping with this..

  16. gameroms

    gameroms XPG
    0/47

    Joined:
    Nov 3, 2013
    Messages:
    2,461
    Likes Received:
    437
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox One
    J7G1 Header
    Aux Power Header
    [​IMG]
    Pin 1: GND
    Pin 2: +12 VDC
    Pin 3: GND
    Note:
    1) This port is not active. A resistor or jumper needs to be added to the bottom side of the motherboard were R7V7 should be.
    Header missing on 360 XDK motherboard Version 9.
    Header missing on 360 Retail motherboard Version 11.
