How to Flash a Unbanned Key-Vault to your console JTAG/RGH

apollo3841 Aug 1, 2014

  1. apollo3841

    apollo3841 UK JTAG/RGH Suppler ッ Lifetime Gold
    0/47

    Joined:
    Apr 17, 2014
    Messages:
    479
    Likes Received:
    224
    Trophy Points:
    55
    Gender:
    Male
    Location:
    England, Kent
    Home Page:
    Console:
    Other
    This tutorial will help and guide you though the steps on how to unban your RGH/JTAG via flashing the Key vault to your console. this makes it impossible for your KV to be stolen and will also make it last a lot longer rather than placing it on the root of your HDD and being lazy...


    Ok before we start you will need the following:
    • Working Jtag/RGH on latest dashboard
    • XboxLive stealth set up of course
    • Unshared, Unbanned KV_dec.bin (Click here)
    • USB Flash Drive (Formatted Fat 32 default)
    • Your Correct consoles CPU & DVD key
    • Flash 360 (Download)
    • Flash 360 Tool (Download)
    • XeX Menu 1.2
    • Clean and updated read of your consoles NAND

    How to get your consoles CPU & DVD key
    1. Make sure you jtag/rgh is fully off
    2. Press the Eject button to power it on
    3. Xell should boot up and your CPU & DVD key should be displayed
    • Should look something like this:
    [​IMG]


    How to get your consoles NAND Image
    1. Extract Flash360 and place the folder into the root of your USB flash drive.
    2. Plug your USB into your jtag/rgh. Launch xexmenu and navigate to your USB and launch flash360.xex
    3. Press X to backup current nand and press A to start the process. Once done press the back button and exit flash360
    4. Your NAND should now be on the root of your USB flash drive named "flashdmp.bin"

    Now that you have everything that is needed to unban your console, lets begin.

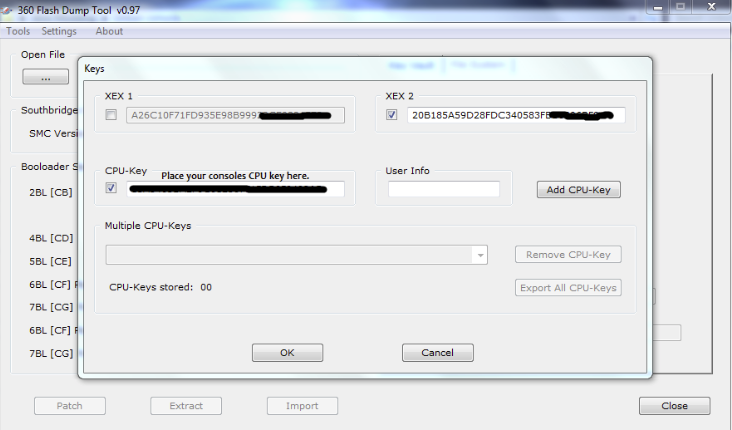

    • Ok, extract and open Flash 360 Tool. Hit setting then select Keys. Hit XEX 2 and then place your CPU key in the text box as shown then hit ok:
      [​IMG]

    • Now hit "Open File" find your flashdmp.bin that we read from the console using flash 360 which should be on your USB drive in that folder. to keep things clean create a folder on your desktop and place you nand & Unbanned KV into that folder.

    • Now you have opened your flashdmp.bin Hit "Import" and locate you KV_dec.bin file then hit ok.
      [​IMG]

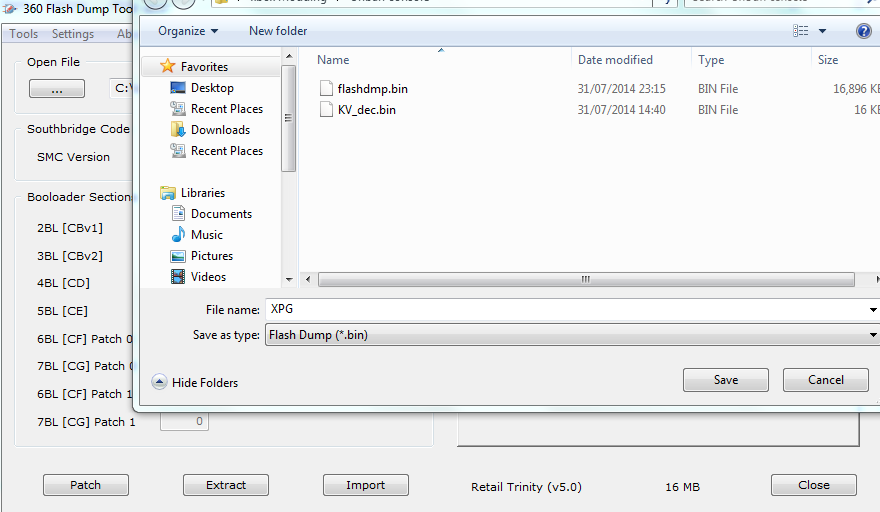

    • Now it will ask you to save the file that you have just imported your unbanned KV to, name the file as XPG as shown then hit save.
      [​IMG]

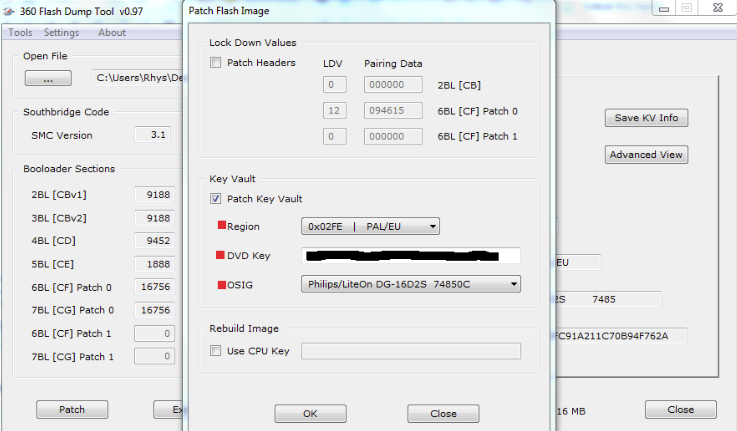

    • Now hit "open file" and select the "XPG.bin" that we just created. Hit "Patch" then check the box "Patch Key vault" Ok now this is very important other wise this could possible brick your console by putting false information! Select your Region, Place your correct DVD key in the text box! and then select witch drive you have, most consoles have the selected as shown in picture. Hit "OK" then save you file named as "updflash.bin"
      [​IMG]

    • Now everything is ready and your new nand image is unbanned with the Key vault we just flashed. place your "updflash.bin" on the root of your USB drive, make sure it is the root and NOT inside any folders otherwise this will not work.

    • Plug your USB into your jtag/rgh. Launch xexmenu and navigate to your USB and launch flash360.xex. Hit the following buttons! A, B, Start, Start, A. Once it has finished writing hit back button until your console shuts down in 5 4 3 2 1. wait 20 seconds then reboot your console.

    If you did everything correctly, you should be done and everything should be working fine. If for any reason there is a issue feel free to drop a comment below and myself or a member will support you with that issue. thanks!

  2. Ro

    Rocky Guest

    Great tutorial ;)

  3. apollo3841

    apollo3841 UK JTAG/RGH Suppler ッ Lifetime Gold
    55/94

    Joined:
    Apr 17, 2014
    Messages:
    479
    Likes Received:
    224
    Trophy Points:
    55
    Gender:
    Male
    Location:
    England, Kent
    Home Page:
    Console:
    Other
    Yes I highly recommend flashing your kv to the console instead of placing it to your HDD for many reasons. :)

  4. ha

    haded28 Newbie
    0/47

    Joined:
    Oct 11, 2014
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    0
    hi
    How do I get Unbanned KV_dec.bin ?

  5. apollo3841

    apollo3841 UK JTAG/RGH Suppler ッ Lifetime Gold
    55/94

    Joined:
    Apr 17, 2014
    Messages:
    479
    Likes Received:
    224
    Trophy Points:
    55
    Gender:
    Male
    Location:
    England, Kent
    Home Page:
    Console:
    Other
  6. isaacgar12345

    isaacgar12345 Lifetime Gold Lifetime Gold
    0/47

    Joined:
    Jun 26, 2011
    Messages:
    306
    Likes Received:
    62
    Trophy Points:
    0
    Gender:
    Male
    Console:
    Xbox
    Why am i given a cpu key for an unbanned KV if i don't need it?
    I tried this last night and i bricked my xbox and i want to be sure i do it right so i don't have to hook up my NAND-X again
    Im trying it again now ill let you guys know.

    EDIT: Bricked my console 2 times using this tutorial exactly...

  7. apollo3841

    apollo3841 UK JTAG/RGH Suppler ッ Lifetime Gold
    55/94

    Joined:
    Apr 17, 2014
    Messages:
    479
    Likes Received:
    224
    Trophy Points:
    55
    Gender:
    Male
    Location:
    England, Kent
    Home Page:
    Console:
    Other
    you have the JTAG & RGH pro badge and you have bricked your console? this tut is nube friendly if you follow my steps.

  8. Ma

    Mariofan2000 Newbie
    0/47

    Joined:
    Mar 13, 2012
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    0
    Console:
    Xbox
    Does it work if the OSIG doesn't match the DVD drive on my console? My DVD Drive is 16D4S!

  9. MiraclezZ

    MiraclezZ Newbie
    0/47

    Joined:
    Apr 12, 2013
    Messages:
    62
    Likes Received:
    4
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Rotherham
    Console:
    Xbox
    i have the same problem dude

  10. dj

    djeber10 Newbie
    0/47

    Joined:
    Sep 14, 2015
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    0
    after flashing my xbox doest start at all
    does any one know how to fix it

  11. apollo3841

    apollo3841 UK JTAG/RGH Suppler ッ Lifetime Gold
    55/94

    Joined:
    Apr 17, 2014
    Messages:
    479
    Likes Received:
    224
    Trophy Points:
    55
    Gender:
    Male
    Location:
    England, Kent
    Home Page:
    Console:
    Other
    Bump ;)

  12. goldenniro

    goldenniro Newbie
    0/47

    Joined:
    Sep 14, 2015
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    0
    Change Dvd Kye , But No UNbanned Console ? Why Man ?

  13. Th

    The RGH Lyfe Newbie
    0/47

    Joined:
    Aug 21, 2015
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    What happens if the region is wrong? I have an rgh2 Slim Trinity, any idea what that might be?

  14. Th

    The RGH Lyfe Newbie
    0/47

    Joined:
    Aug 21, 2015
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Sorry not region OSIG
