    File Name: Unreal Engine Easy Iso Editor
    File Submitter: Bullet
    File Submitted: 12 Aug 2012
    File Updated: 12 Aug 2012
    File Category: Xbox360 Modding Tools

    This tool will allow you to mod Epic games coalesced_int.bin

    Ok first we will start by actually modding the Coalesced_INT.bin its located in StormGameCookedXenon

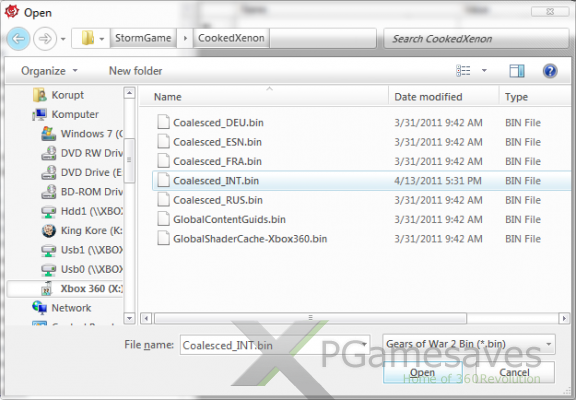

    open up your Coalesced_INT.bin with gearsofwareditor.exe

    [​IMG]

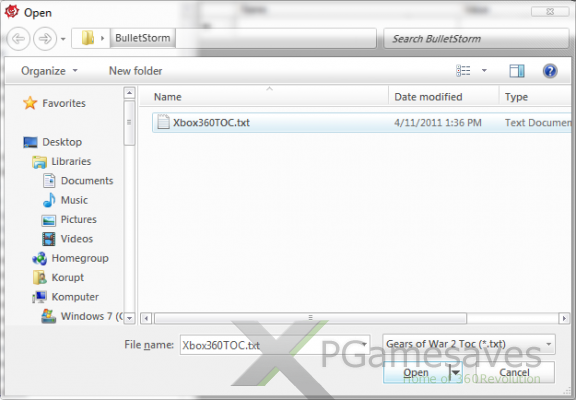

    Now it will ask for your Xbox360TOC.txt (located in the StormGame folder)

    [​IMG]

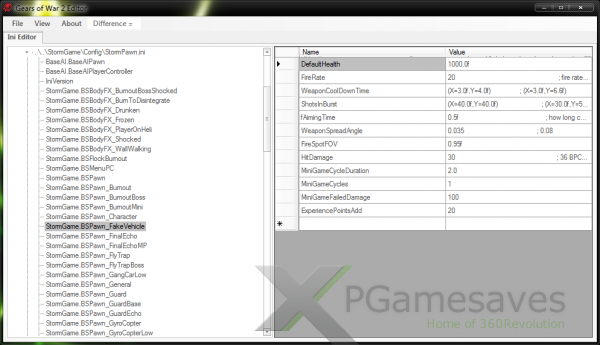

    Do all of your editing in the nice GUI instead of manually hex editing everything.

    [​IMG]

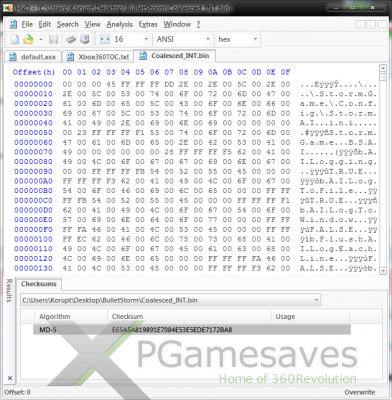

    After your done hit save in gearsofwareditor.exe and open Coalesced_INT.bin
    in a hex editor and get the MD5 checksum (HxD has this option under Analysis)

    [​IMG]

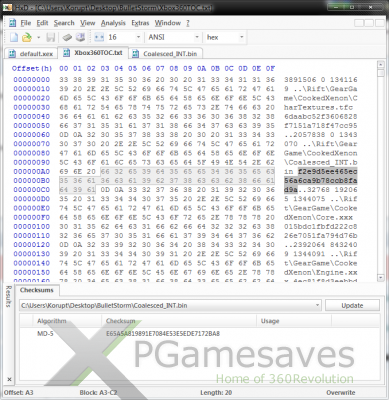

    Now open your Xbox360TOC.txt and replace the checksum under the words Coalesced_INT.bin and save then close

    [​IMG]

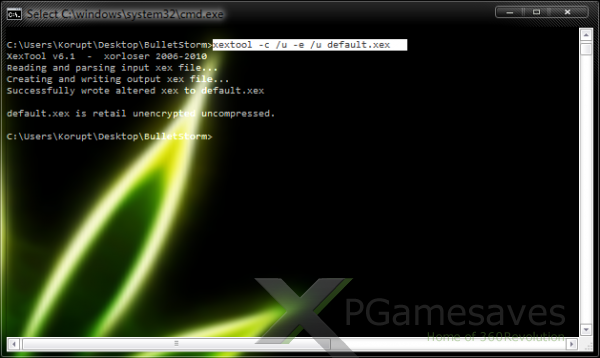

    Now we have to decompress and decrypt the Default.xex using xextool (or any gui variation)
    the command for xextool is xextool.exe -c /u -e /u default.xex

    [​IMG]

    Get the Sha-1 checksum from Coalesced_INT.bin using your hex editor (same as before)

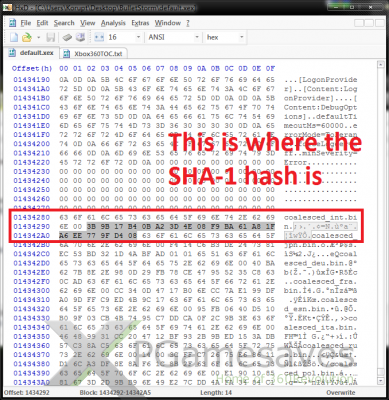

    Finally we open default.xex in our hex editor and search for Coalesced_INT.bin and replace the SHA-1 checksum (becareful to not replace the period after Coalesced_INT.bin)
    and save! your done! your file should be ready to run.
    [​IMG]

    Tutorial by Korupt
    Hidden Content:
    You must reply before you can see the hidden data contained here.

    • Like Like x 10
  2. ADDZ

    ADDZ ( * Y * ) Staff Member XPG Founder
    565/752

    Joined:
    Dec 12, 2010
    Messages:
    15,922
    Likes Received:
    6,684
    Trophy Points:
    565
    Location:
    Behind you sniffing your hair!
    Console:
    Playstation 4
    Used this in the past Bullet really cool tool, learnt a lot from it I prefer hex editing but it's still a great tool ;)

    • Like Like x 3
  3. Bullet

    Bullet XPG Original Founder EST 2000 XPG Administrator XPG Founder
    550/564

    Joined:
    Jul 16, 2009
    Messages:
    20,982
    Likes Received:
    7,959
    Trophy Points:
    550
    Gender:
    Male
    Console:
    Xbox
    Hopefully we may seem some fresh mods when people start playing with this UI

    • Like Like x 1
  4. Dylandy05

    Dylandy05 The Blue Waffle Power Ranger Lifetime Gold
    125/188

    Joined:
    May 30, 2010
    Messages:
    2,374
    Likes Received:
    194
    Trophy Points:
    125
    Gender:
    Male
    Location:
    Rochdale
    Console:
    Playstation 4
    i think i used something like this to mod gears 2

  5. Bullet

    Bullet XPG Original Founder EST 2000 XPG Administrator XPG Founder
    550/564

    Joined:
    Jul 16, 2009
    Messages:
    20,982
    Likes Received:
    7,959
    Trophy Points:
    550
    Gender:
    Male
    Console:
    Xbox
    Yea you probably did, but its not just limited to GOW2 ;)

  6. Dylandy05

    Dylandy05 The Blue Waffle Power Ranger Lifetime Gold
    125/188

    Joined:
    May 30, 2010
    Messages:
    2,374
    Likes Received:
    194
    Trophy Points:
    125
    Gender:
    Male
    Location:
    Rochdale
    Console:
    Playstation 4
    might have a crack at doing this again ;)

    • Like Like x 1
  7. Bullet

    Bullet XPG Original Founder EST 2000 XPG Administrator XPG Founder
    550/564

    Joined:
    Jul 16, 2009
    Messages:
    20,982
    Likes Received:
    7,959
    Trophy Points:
    550
    Gender:
    Male
    Console:
    Xbox
    Go for it mate, see what you can do. Get some Unreal mods out ;)

  8. mrvan

    mrvan Gold Member Gold Subscriber
    0/47

    Joined:
    Feb 5, 2011
    Messages:
    74
    Likes Received:
    3
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Atlanta, Ga.
    Console:
    Xbox
    So this tool allows you to mod the default.xex and it works for iso?

  9. ADDZ

    ADDZ ( * Y * ) Staff Member XPG Founder
    565/752

    Joined:
    Dec 12, 2010
    Messages:
    15,922
    Likes Received:
    6,684
    Trophy Points:
    565
    Location:
    Behind you sniffing your hair!
    Console:
    Playstation 4
    No only the coal.bin and toc will allow it to be an ISO mod, if it has xex checksums (SHA-1) to fix then it's Jtag/RGH mods only as we can't resign the xex after modding.

  10. Vash The Stampede

    Vash The Stampede Developer XPG Developer TeamXPG
    205/282

    Joined:
    Mar 13, 2011
    Messages:
    4,297
    Likes Received:
    2,227
    Trophy Points:
    205
    Gender:
    Male
    Console:
    Xbox
    damn i was looking for this XD you read my damn mind

  11. mrvan

    mrvan Gold Member Gold Subscriber
    0/47

    Joined:
    Feb 5, 2011
    Messages:
    74
    Likes Received:
    3
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Atlanta, Ga.
    Console:
    Xbox
    I know there are a lot of unreal games out there. How can I tell if it has a checksum or not? I don't have a JTAG/RGH so I would have to burn to see if a mod worked.

  12. XPGCaboose

    XPGCaboose XPG Lifer TeamXPG
    0/47

    Joined:
    Aug 26, 2009
    Messages:
    6,016
    Likes Received:
    707
    Trophy Points:
    0
    Gender:
    Male
    Location:
    California, USA
    Console:
    Xbox
    you would grab the sha-1 off of your coal and after you uncompress and decrypt your default.xex do a search for the sha-1 in hex. if there is 1 9/10 it's going to be jtag/rgh only. may work on iso because sometimes the check is broken but it will usually be patched with a day 1 TU.

  13. zu

    zues14 Newbie
    0/47

    Joined:
    Dec 18, 2010
    Messages:
    308
    Likes Received:
    22
    Trophy Points:
    0
    Gender:
    Male
    Console:
    Xbox
    Is this for iso modding games with unreal engine?

    Sorry if it obvious but im half asleep.

  14. XPGCaboose

    XPGCaboose XPG Lifer TeamXPG
    0/47

    Joined:
    Aug 26, 2009
    Messages:
    6,016
    Likes Received:
    707
    Trophy Points:
    0
    Gender:
    Male
    Location:
    California, USA
    Console:
    Xbox
    only if there is no sha-1 in the default.xex then yes it will work for iso mod. If there is sha-1 check then no.

  15. mrvan

    mrvan Gold Member Gold Subscriber
    0/47

    Joined:
    Feb 5, 2011
    Messages:
    74
    Likes Received:
    3
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Atlanta, Ga.
    Console:
    Xbox
    Is there a reason why some int files will open and others won't? Trying to mod spec ops and it puts an error up when I try to open the file.

  16. ag

    agnthvc Newbie
    0/47

    Joined:
    Oct 10, 2012
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    0
    Console:
    Xbox
    ANYONE TRY THIS WITH XCOM?

  17. jonat212

    jonat212 Newbie
    0/47

    Joined:
    Oct 31, 2012
    Messages:
    60
    Likes Received:
    10
    Trophy Points:
    0
    Console:
    Xbox
    yeah

  18. D33J

    D33J The 1
    45/47

    Joined:
    Sep 3, 2009
    Messages:
    899
    Likes Received:
    252
    Trophy Points:
    45
    Gender:
    Male
    Location:
    Raving Raving Everywhere
    Console:
    Xbox One
    Nice tut m8 going to give this a go with a few games ;)

  19. ja

    jamege Banned BANNED
    0/47

    Joined:
    Dec 12, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Console:
    Xbox
    thank you

  20. sa

    sakalak Newbie
    0/47

    Joined:
    Mar 23, 2014
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    thanks for hard work
