    Welcome to Paddys Guide On how to Flash your Latest drives to the latest firmware:)





    This is for PHAT Drives only ! (benq and LITE ON!)
    If you want to know how to open your xbox then follow this guide :)
    http://www.xpgamesav...oob-tut-paddys/
    BEFORE YOU START ANYTHING:
    I WILL NOT BE HELD RESPONSIBLE FOR ANY DAMAGE DONE TO ANY EQUIPMENT THAT MY GUIDE IS USED FOR. IF YOU FOLLOW/USE THIS GUIDE, THEN YOU AGREE TO THIS!

    Before we Start this guide it is for

    Lite on Drives and Benq Drives (Phat)

    Now lets get right on to the tutorial then Aye! ? :)


    Tools Needed!

    Probe v1 (With a PMT Cable) Or a Probe v3."probe v2/mini probe"
    (If your wanting to flash your lite on and retrieve the key)
    (Ck3 Pro/ Xbox/ck3 mini/ ck3 lite
    (Sata cable)

    [​IMG]

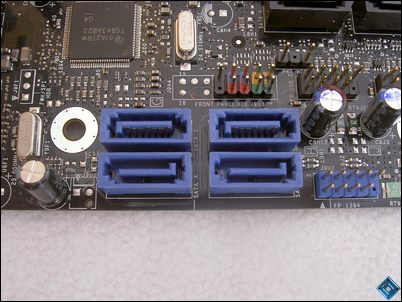

    You Will Need on board sata ports unless you are using a usb pro or any other types of methods out there such as a VIA card which is a PCI Card which you plug into your computers motherboard :)

    [​IMG]

    This is one of the most well known method to use as it is the easiest for picking up your drive as you don't need Port I/O. This is the quickest method and erasing and writing the firmware to your DVD drive. (This is suppose to be the easiest method to flash your dvd drive)
    You can purchase these from 360 parts
    Usb Pro 2
    USB PRO

    Different Methods of powering up your xbox drive!

    [​IMG]

    If your using this method make sure your xbox has its av cable plugged in also or hdmi cable if your console is hdmi otherwise your console with turn off within a couple of mins. Make sure it is plugged in !

    [​IMG]
    Another way is using a CK3 pro Which is imo the best method to use! It makes it more easier to power cycle your disc drives with one of these to and you can also flash a 0800 and hook it up to this :)

    They can be purchased from 360 parts at a great deal to :)
    Here is a link




    [​IMG]


    Tools need!
    This section is for flashing LiteOn 02510c Drives, you will need
    Ck3 / Xbox
    Probe v1 and pmt/ Probe v3
    Lite on Drive
    Firmware pack (Which is found Here)
    Jungle flasher (Which is here)
    Philips Screw Driver
    Open TOOL KIT/Precision Screw driver to open the xbox.
    TORX T10

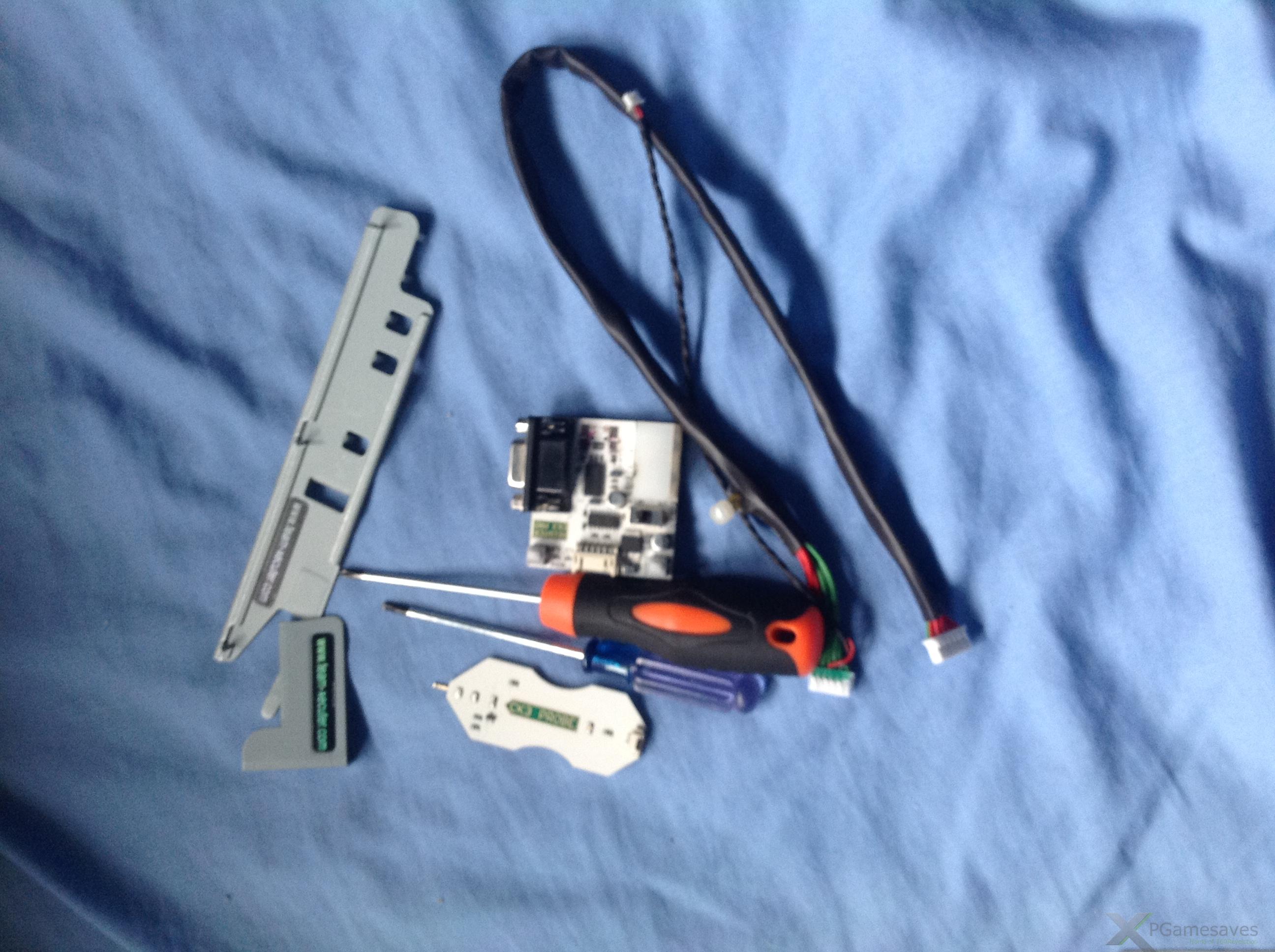

    Here is a pic.
    [​IMG]


    Step 1

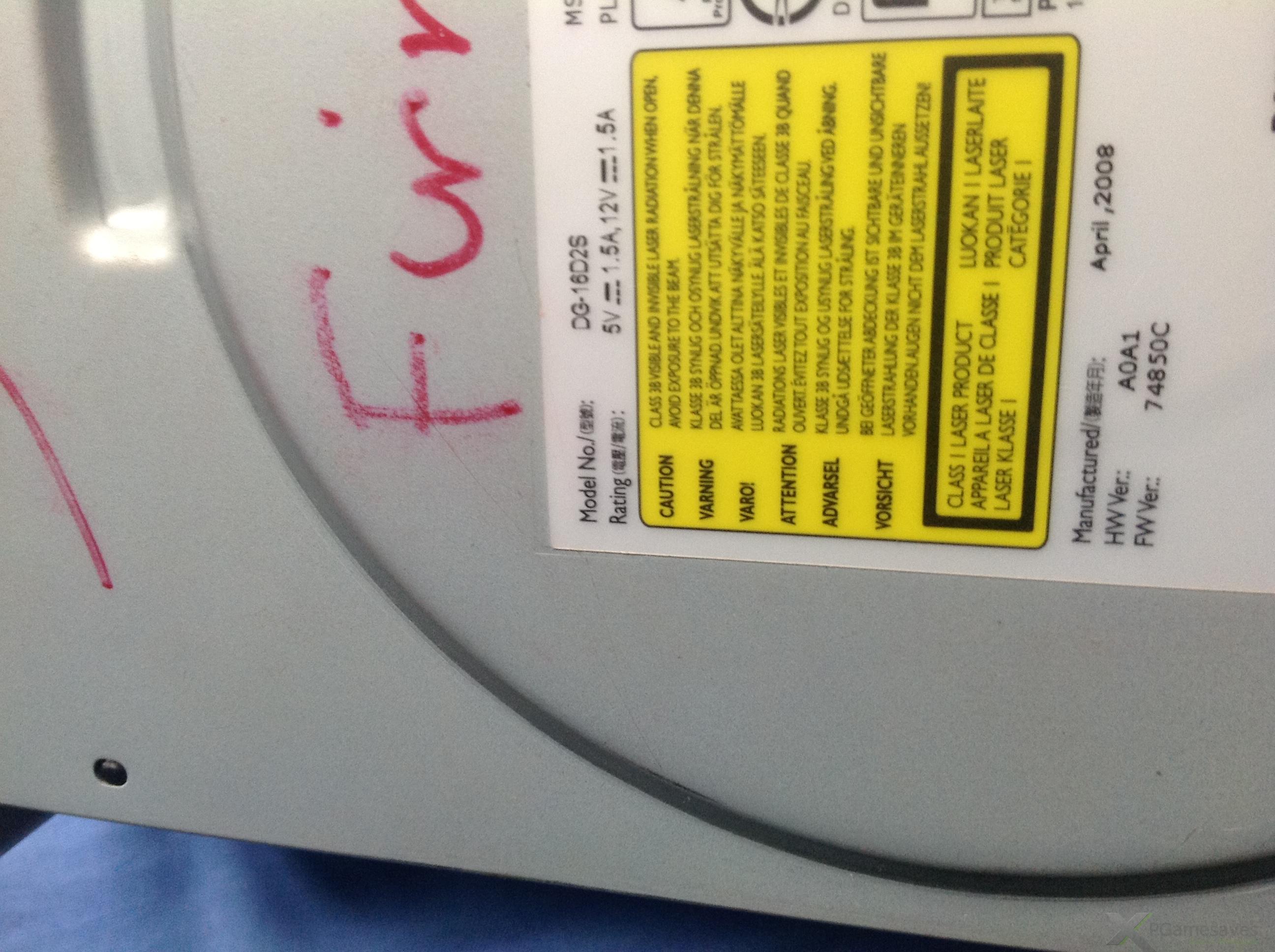

    Ok Now grab your disc drive
    [​IMG]

    Step 2

    Unscrew all four screws shown above with a philips screw drive :)

    [​IMG]

    Step 3

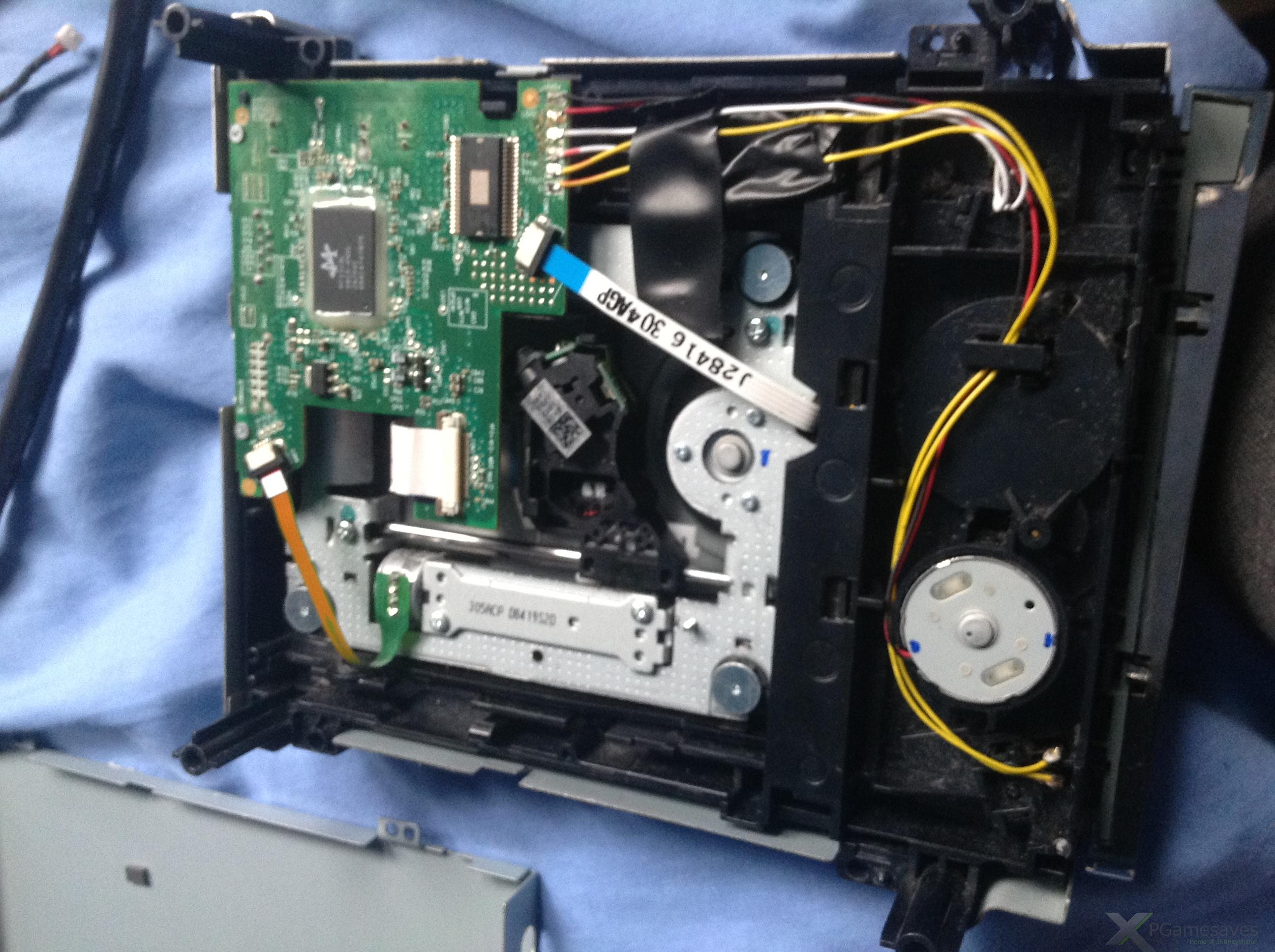

    [​IMG]

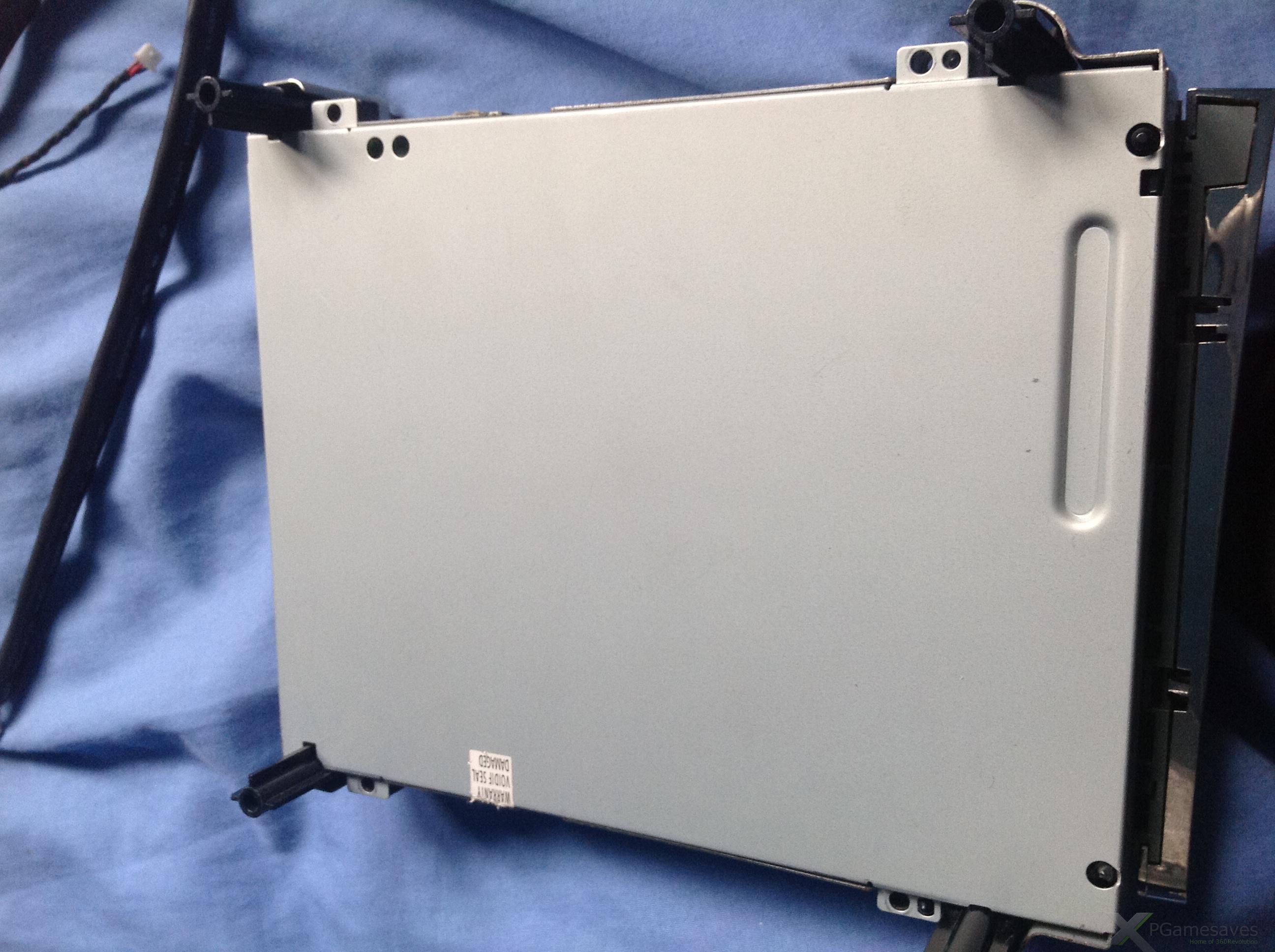

    You will now be able to take the bottom cover off your drive now :)

    Step 4

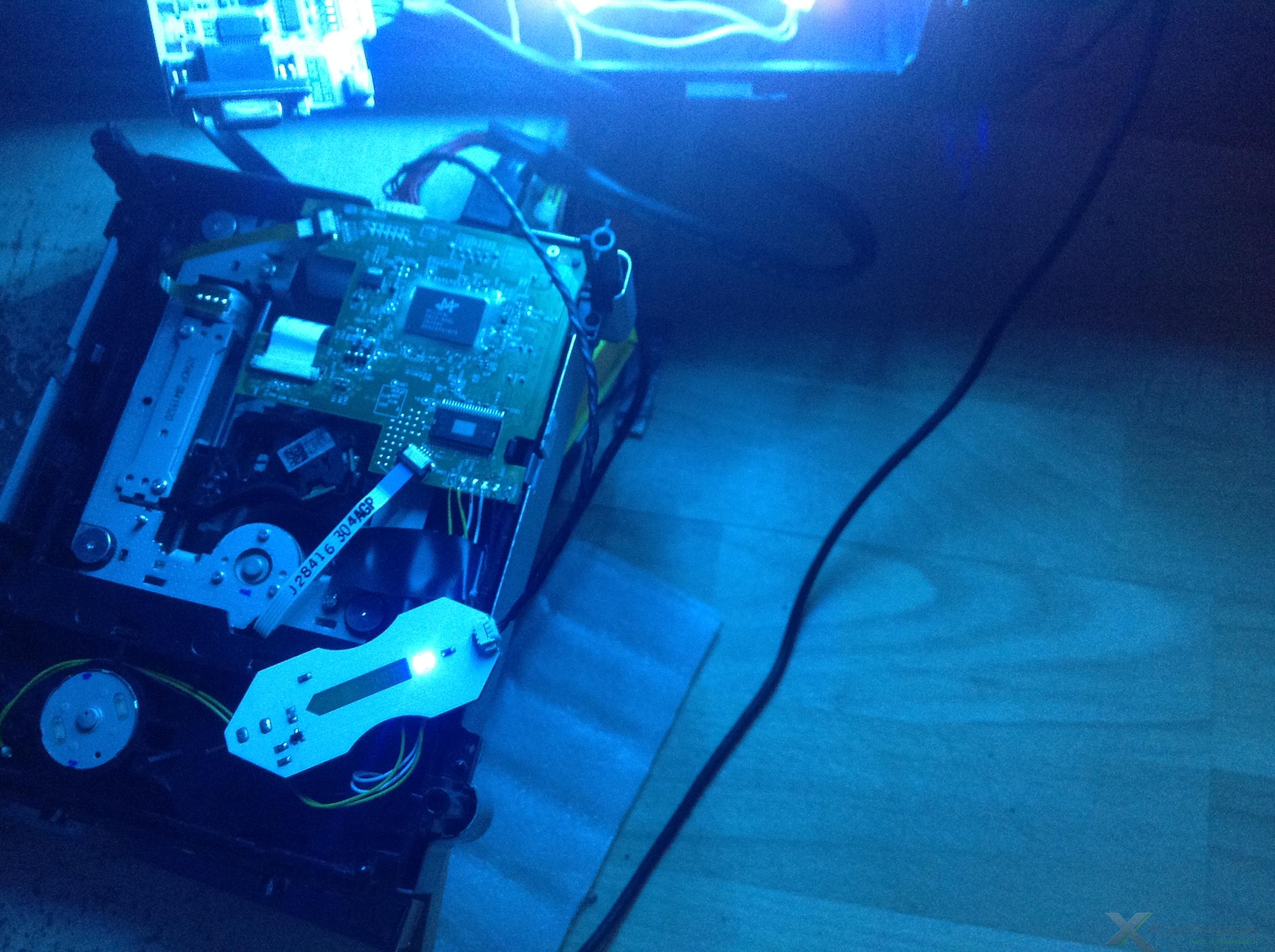

    Hook it all up to your pc :)

    [​IMG]


    Step 5

    Go to DVD Key 32 Tab in Jungle Flasher :)
    [​IMG]

    Now Make sure your drive is selected in the I/O Port Tab You Should see your
    Drive listed below which will be called "PBDS".

    Step 6

    Hit PHAT Key!
    [​IMG]

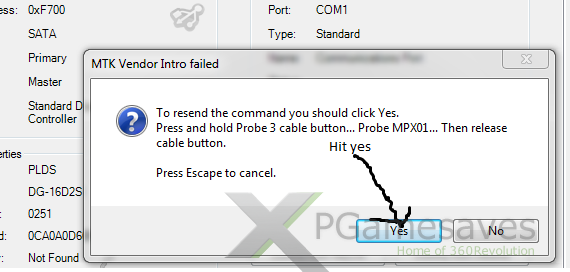

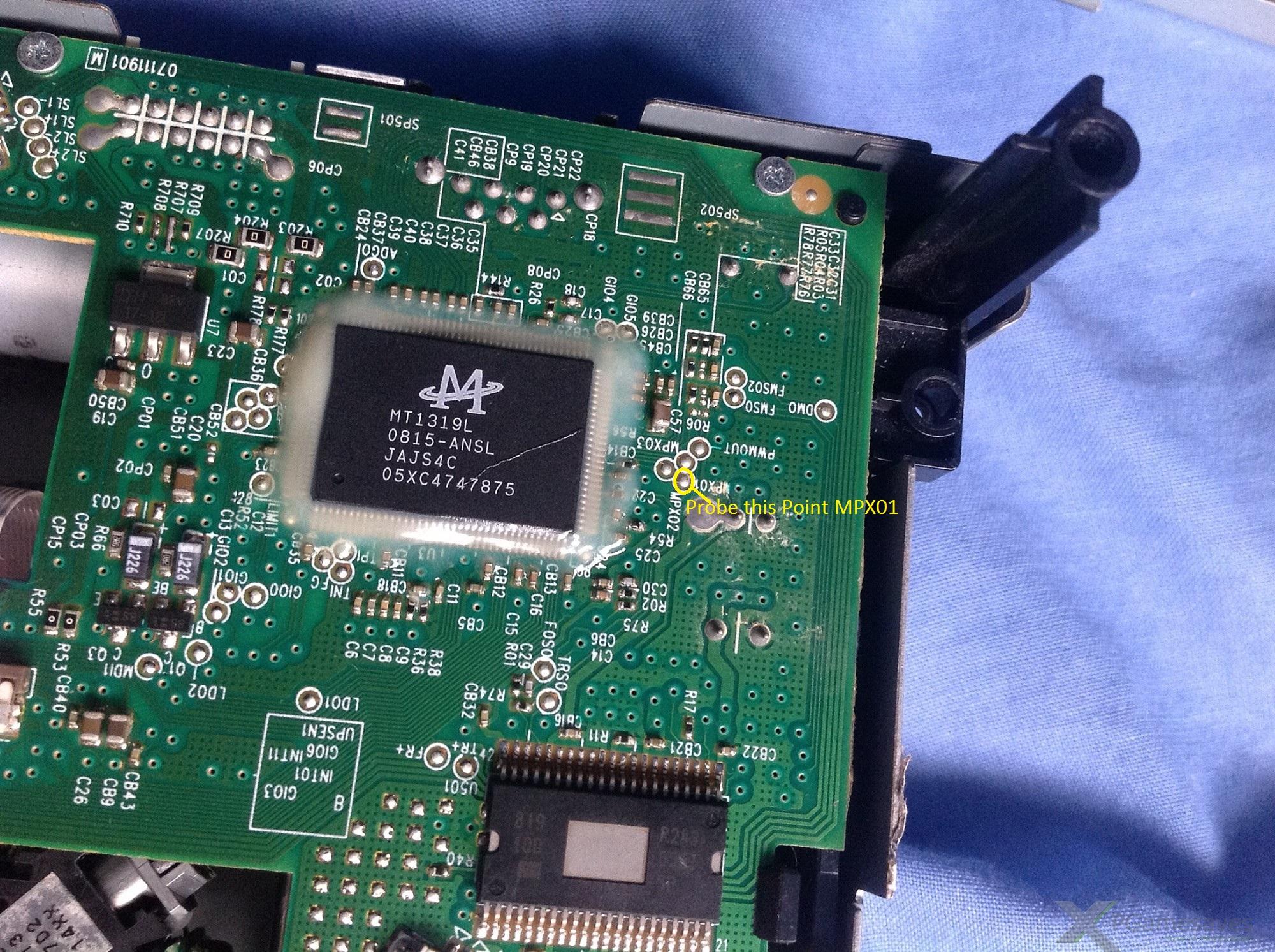

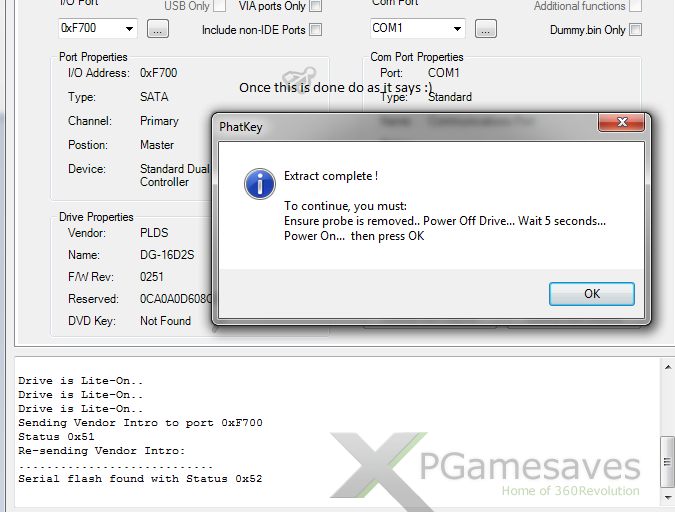

    Hit yes then get your Probe and probe this point which is going to be displayed in a picture below and there will also be a video shown if you still dont get it. You will Need to probe the Point Called MPX01

    [​IMG]




    Heres a video Im taking a while to try and show you as clear as possible as me probing the point and recording with an ipad in the same hand s kinda difficult lol.


    [​IMG]
    After you have done this you should see on your Screen OX52 and then you will see a message come up saying extract complete. If you do not get this and it fails you have not either probed the right port or you need to try again!

    After you have successfully done this ! :)

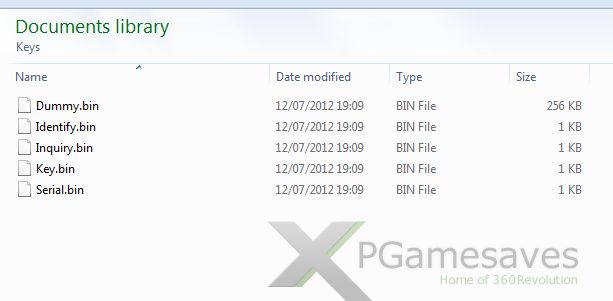

    You Can save your keys which look similar to this :)

    [​IMG]



    After that you Have saved your keys! ( Very Important!) may get a message pop up after you have saved it hit no :)

    Step 7

    You should now be at the firmware 32 tab :)

    Open your target firmware and select "Lite-On 02510c LT+3.0.bin" from the LiteOn folder.

    NOTE- If you want to flash to stock firmware then simply go to the stock firmware folder and choose Lite-On 02510c

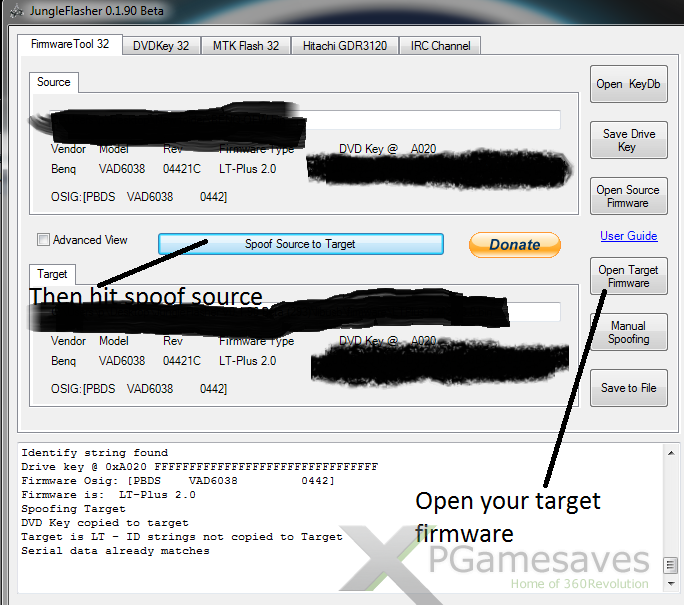

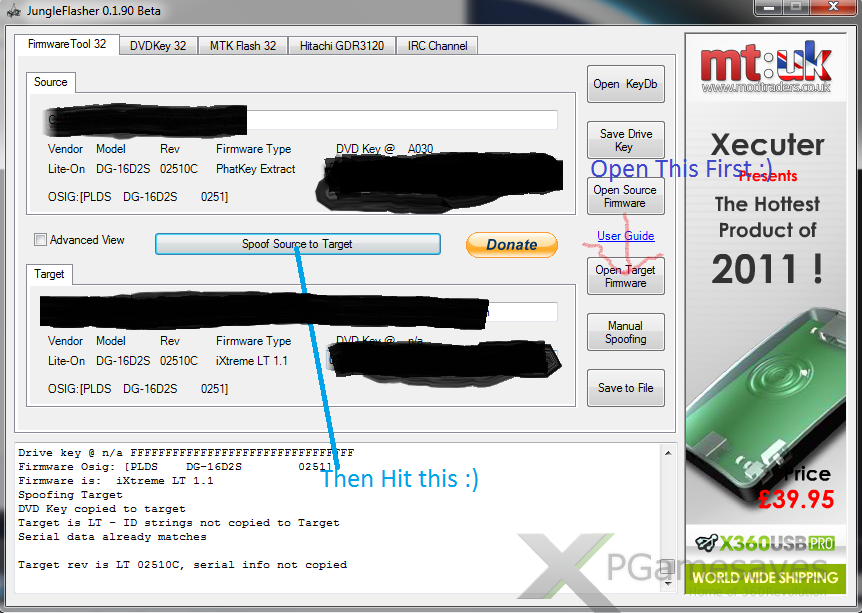

    Click spoof target to Source Look at this picture below
    [​IMG]

    Step 8

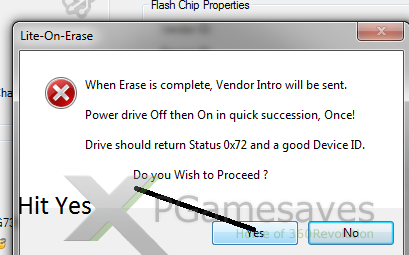

    Go to the MTK Flash32 tab and click Lite-On Erase.

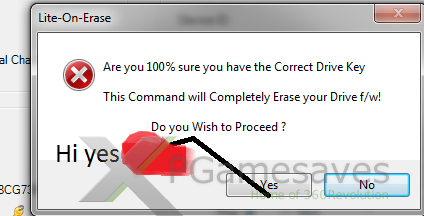

    Press yes.

    [​IMG]

    Hit yes again -

    [​IMG]

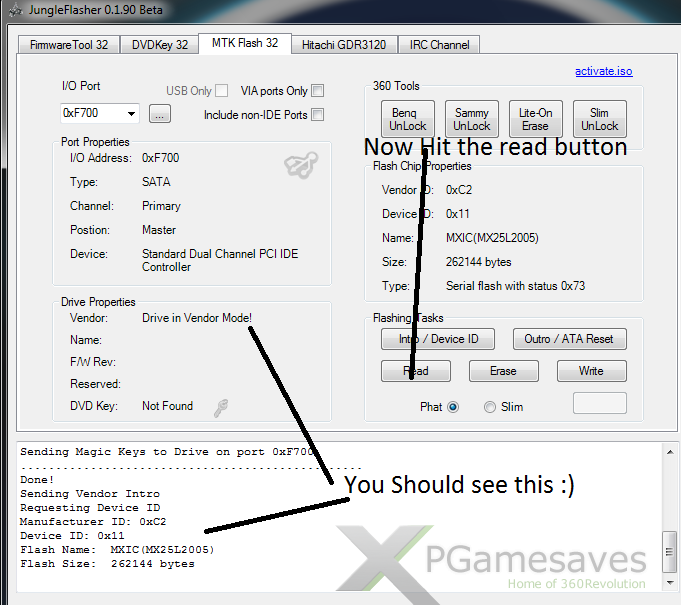

    After you have hit this you are going to need to put it into vendor mode to do this you can simply just power cycle the drive with your ck3 by turning it off and it back on or if your using a xbox you will need to pull out the power cable out of the drive and put it back in within a second. (Power cycle the drive when you see the second line of dots)

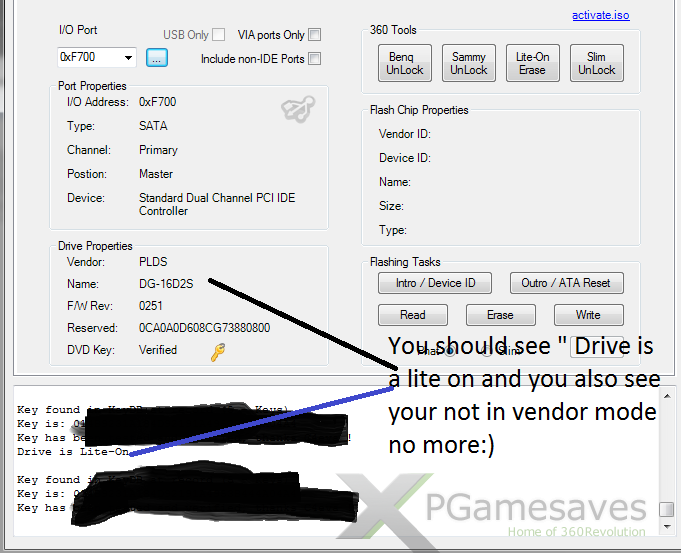

    If you have it successfully you will see this below :)
    [​IMG]

    Now your going to want to hit the write button.

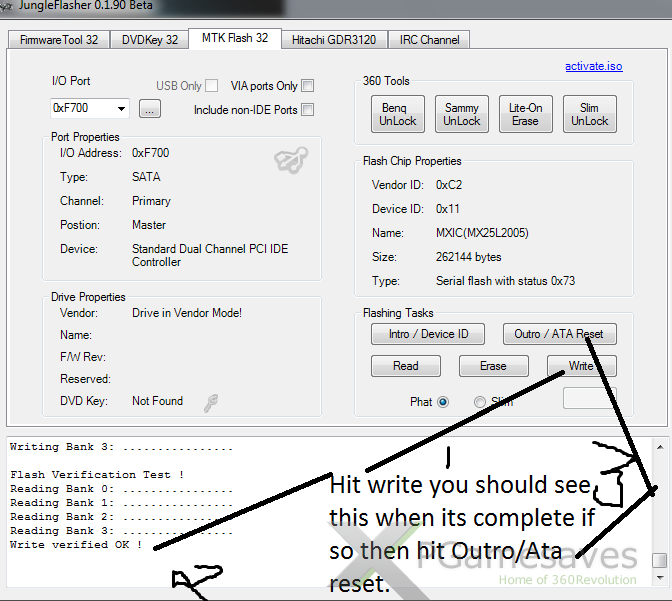

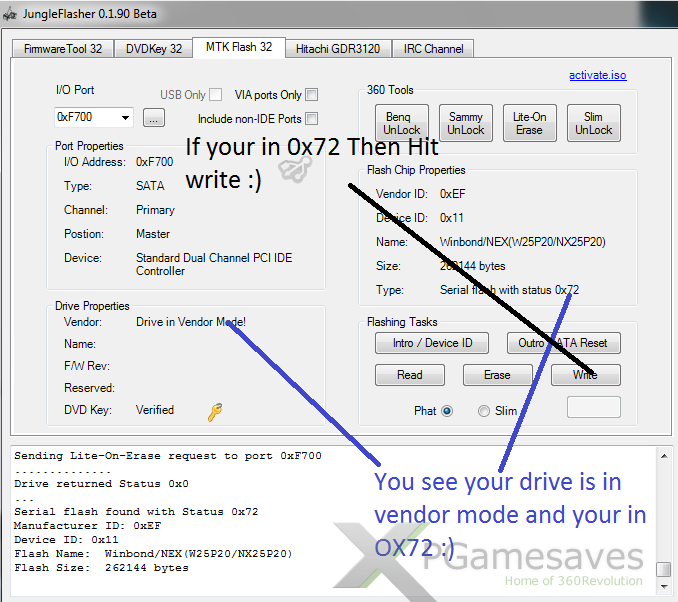

    You should see the log below after that if it is correct hit the Outro/Reset Button.
    [​IMG]


    Step 9

    After this you should see this below and it should say "Your Drive is a liteon"

    [​IMG]

    Now it is safe to unplug your drive and put it back into your xbox enjoy you have successfully flashed a lite on !

    [​IMG]

    This section is for flashing BenQ VAD6038 Drives, you will need
    Ck3 / Xbox
    Benq Drive
    Firmware pack (Which is found Here)
    Jungle flasher (Which is here)
    Open TOOL KIT/Precision Screw driver to open the xbox.
    TORX T10

    Step 1 .

    Connect your benq drive to your pc with a sata cable by using onboard sata ports/Via card or connect it using.

    To power up the drive either use a ck3 or your xbox.


    Step 2
    Open up jungle flasher and go to the the MTK Flash32 Tab
    You should see your drive in the driver properties box and make sure you select the correct I/O port and if you are still not seing this press "Intro Device" After that you still do not see it in the drive peroperties then you have a problem so check all your connections.

    [​IMG]

    After that Hit benq Unlock

    Step 3


    [​IMG]

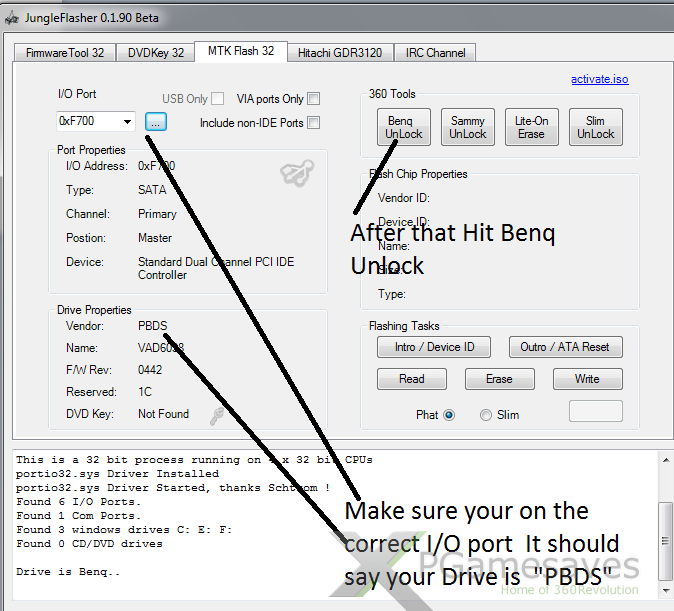

    You should see the following log on your screen as withing this picture if so hit read and save your drive keys!

    [​IMG]

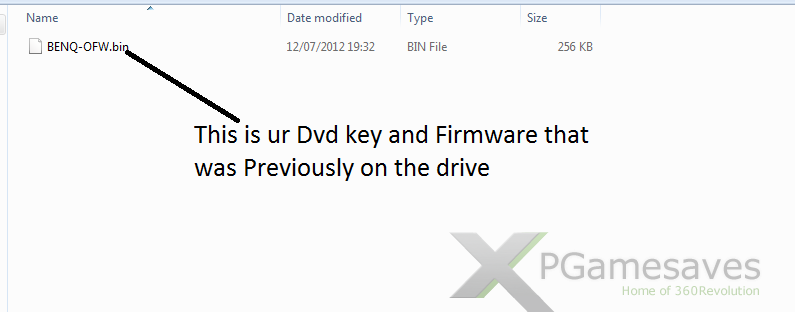

    You will be asked to save a file called "BENQ-OFW"
    Save this to a place you wont forget, it has your drive details within it. Click no to the Autoload message.


    Step 4

    Go to the firmware tab
    [​IMG]
    Now click "Open Target Firmware" And navigate to the firmware folder, chose "LTPlus-0442-v3.0.bin"" select it.
    Click "Spoof Source to Target"


    Step 5




    Go to the MTK Flash32 and click Write

    [​IMG]

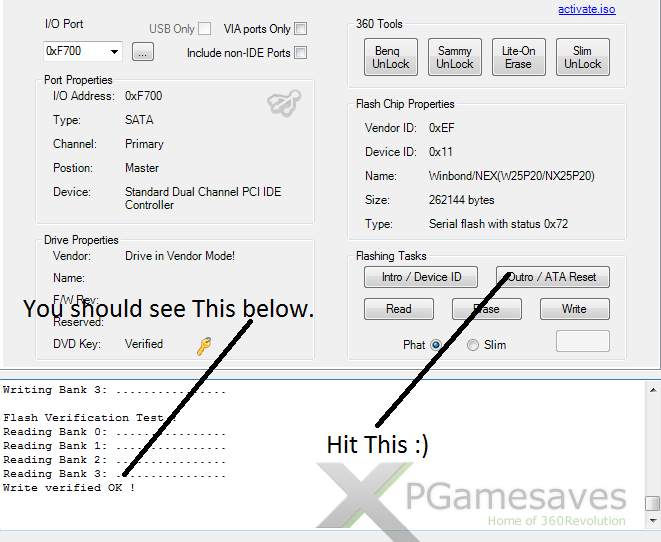

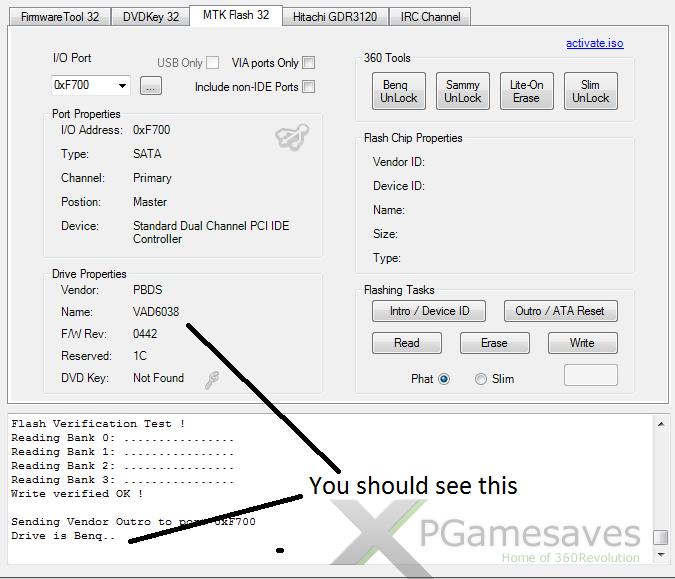

    After it is done it should show the same satus as withing the picture if you see above. After that Click Outro/Ata Reset

    [​IMG]


    You should see this and your done !





    Tutorial Made by paddy!

    XPGAMESAVES.COM

    Hope you have enjoyed this Thanks Paddy!
