How To Fix PS4 Blinking Blue Light.

XPG Darkside Nov 18, 2013

  1. XPG Darkside

    XPG Darkside Eating cake.... Gold Subscriber Lifetime Gold
    0/47

    Joined:
    Oct 20, 2011
    Messages:
    8,906
    Likes Received:
    5,008
    Trophy Points:
    460
    Gender:
    Male
    Occupation:
    Eating cake.
    Location:
    In Rockys Fridge....
    Console:
    Xbox One
    Some reports have been coming in from users with PS4 units blinking blue, but not entering the powered on state indicated by a white light.

    [​IMG]

    Here are some of the symptoms associated with blinking blue lights issue:
    • blue indicator light blinking
    • no video/audio output to television
    • console powering off after blinking blue
    This blinking light issue could indicate any number of causes including but not limited to:
    1. TV compatibility
    2. Issues with PS4 power supply
    3. Issues with PS4 hard drive
    4. Issues with other PS4 hardware

    TV Compatibility Troubleshooting:
    1. Some users have indicated that updating the firmware on their televisions has resolved some cases of no audio/video being displayed.

    Power Supply Troubleshooting:

    1) Turn PS4 off completely
    • Touch the power button on the front of the PS4 for at least 7 seconds (until the system beeps twice).

    2) Disconnect PS4 AC power cord from electrical outlet
    • Only disconnect the plug of the AC power cord from the electrical outlet when the power indicator is turned off. If you disconnect it while the power indicator is lit or blinking, data might be lost or corrupted, and the system might be damaged.

    3) Check parts A, E, and F for any conspicuous damage or anomalies
    • You can try using another compatible AC cord (like a power cord from a PS3) to see if that resolves the issue

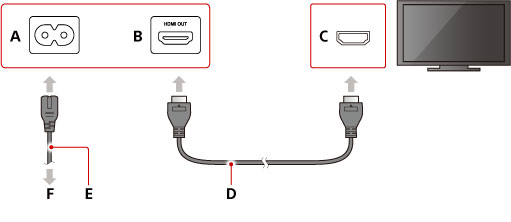

    [​IMG]

    A) AC IN connector
    B )HDMI OUT port
    C )HDMI input port
    D )HDMI cable
    E )AC power cord
    F )To an electric outlet


    Hard Drive Troubleshooting

    1) Turn PS4 off completely
    • Touch the power button on the front of the PS4 for at least 7 seconds (until the system beeps twice).
    2) Disconnect PS4 AC power cord from electrical outlet
    • Only disconnect the plug of the AC power cord from the electrical outlet when the power indicator is turned off. If you disconnect it while the power indicator is lit or blinking, data might be lost or corrupted, and the system might be damaged.
    3) After removing the plug for AC power cord from the electrical outlet, detach the other cables from the PS4.

    4) Slide the HDD bay cover in the direction of the arrow to remove it.
    [​IMG]


    5) Inspect the harddrive to make sure it is properly seated in the HDD bay. A loose hard drive connection can prevent the PS4 from powering on completely. A single screw keeps the assembly in place as shown below.
    [​IMG]

    6) If you suspect possible hard drive damage or would simply like to replace the PS4's hard drive with one of your choosing, please refer to this article for full details
    https://support.us.playstation.com/app/answers/detail/a_id/5107
    • Users can choose to install a new hard drive so long as it complies with these standards, it is no thicker than 9.5mm, and is larger than 160GB.

    Software Installation Troubleshooting;

    1) If your hard drive and power supply appear in good shape, you can try to booting your PS4 into Safe Mode https://support.us.playstation.com/app/answers/detail/a_id/5044
    • The following options are available in Safe Mode:
    1. Restart System - Ends Safe Mode and restarts the PlayStation 4 normally.
    2. Change Resolution - Changes the screen resolution to 480p when the PlayStation 4 is restarted.
    3. Update System Software - Allows the PlayStation 4 to update the system software via Internet, USB Drive, or Disc.
    4. Restore Default Settings - Restores the PlayStation 4 to the default factory settings.
    5. Rebuild Database - Scans the drive and creates a new database of all content.This operation may take a long time depending on the type and number of data items.
    6. Initialize PS4 - IMPORTANT: All data and settings will be lost by performing this step. Deletes all user data and restores the PS4 to as if it just came out of the box. This option is the same as [Initialize PS4 ] in the (Settings) menu. System software (firmware) is not deleted.
    7. Initialize PS4 (Reinstall System Software) - IMPORTANT: Deletes all information on the HDD, including the System Software. A message that states a USB storage device containing the System Software must be connected, is displayed. Then you can confirm the selection. (You will need the full system update installer from http://us.playstation.com/support/systemupdates/ps4/pc_update/index.htm with this option)

    • Like Like x 1
  2. Se

    SexyDev Queen of Darkness
    0/47

    Joined:
    Aug 24, 2012
    Messages:
    588
    Likes Received:
    99
    Trophy Points:
    0
    Gender:
    Female
    Console:
    Xbox
    Very useful! Thanks for the information. :D

  3. Br

    Broncky Newbie
    0/47

    Joined:
    Jul 7, 2013
    Messages:
    29
    Likes Received:
    2
    Trophy Points:
    0
    Console:
    Xbox
    Someone tried this methodes ? and did it work or just for a while and the bleu light is coming back ?

  4. ka

    karem1000 Newbie
    0/47

    Joined:
    Jul 6, 2014
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    Gender:
    Male
    Thank you

  5. theboinker

    theboinker Newbie
    0/47

    Joined:
    Mar 5, 2015
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    0
    very usefull. bookmark worth it! Thanks
