How to boot an Xbox 360 in to Manufacturing Mode with a Memory Card

henry winkler Jun 12, 2011

  1. he

    henry winkler Gold Member Gold Subscriber
    0/47

    Joined:
    Oct 7, 2010
    Messages:
    251
    Likes Received:
    301
    Trophy Points:
    0
    Console:
    Nintendo
    How to boot an Xbox 360 in to Manufacturing Mode with a Memory Card
    Requirements:

    Official Xbox 360 Memory Card
    A way to connect this memory card to the PC, such as the Datel transfer kit
    xplorer360
    Manufacturing mode files

    How to:

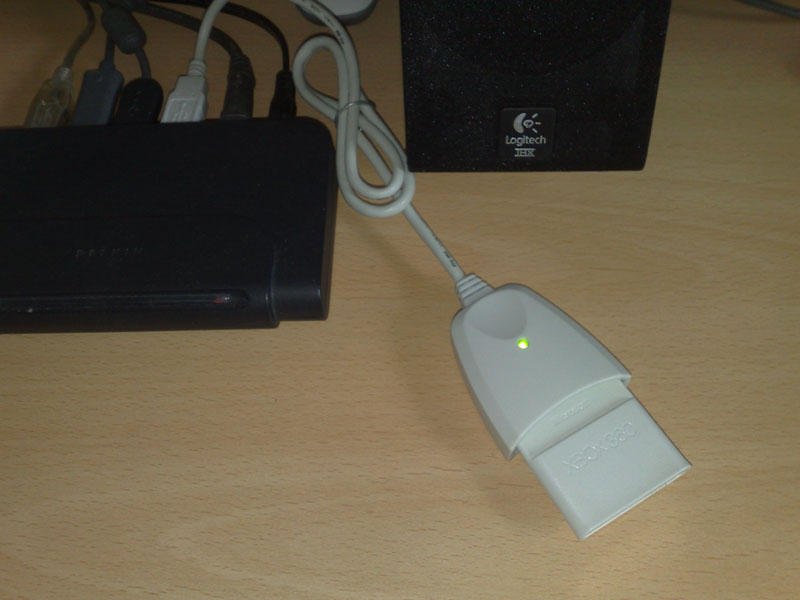

    First connect the 360’s Memory Card to the PC.

    [​IMG]

    Do not format the Memory Card when asked, you will ruin it.

    [​IMG]

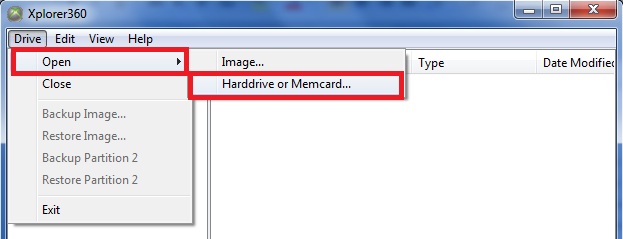

    Load Xplorer 360 up, then select Drive > Open > Hard drive or Memory Card

    [​IMG]

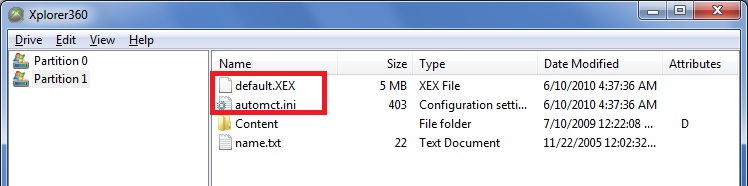

    Now click Partition 1, in the file area right click and select insert file, dump both automct.ini and default.xex in to the root of the memory card.

    [​IMG]

    That’s it, you’re done.

    Just place the memory card in Memory Card Slot A and power your Xbox 360 on, it should then boot in to manufacturing mode.

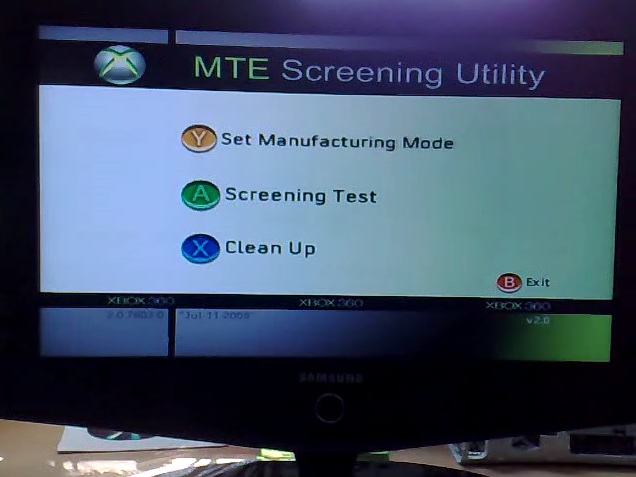

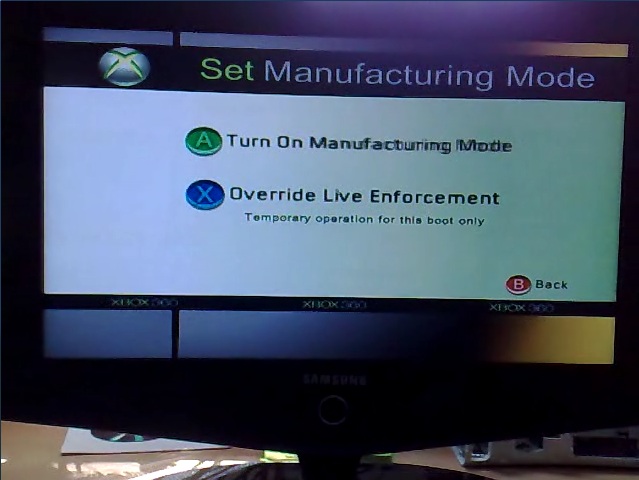

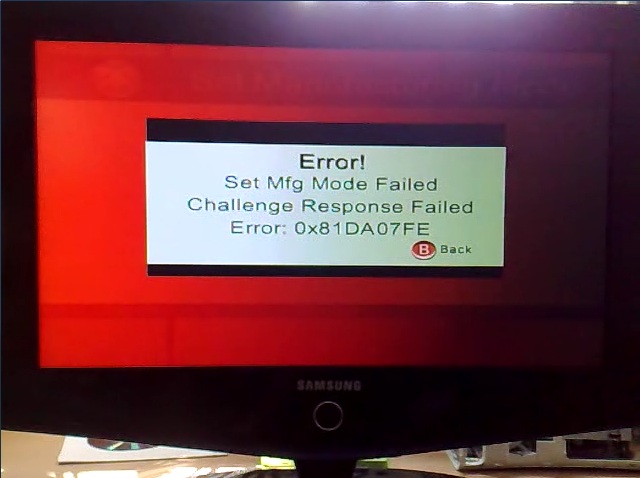

    Screenshots:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    As it can’t connect to a server running on the network it is pretty much usless, although unlikely you might someday be able to explot the Xbox 360 like this… a bit like the Pandora Battery for the PSP, although I wouldn’t hold your breath, apparently the whole thing is a dead end.

    Manufacturing mode is nothing new. Thats what the red/green up/dn blinkers means.
    mfgbootlauncher.xex is on flash, and and can be made to execute a number of different ways.
    Hook up a serial port and you should see the messages about contacting the server etc.
    Naturally if your about to get a new KV, youd need to be in contact with the mothership.
    imho the whole thing is a dead end. Never say never though [​IMG]

    Credit to the guys over at XboxHacker for finding this out.​
    [​IMG] Attached Files

  2. Dash

    Dash Lifetime Gold Lifetime Gold
    0/47

    Joined:
    May 20, 2011
    Messages:
    50
    Likes Received:
    7
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Canada
    Console:
    Xbox
    Nice find :)
