    How To Flash LT+3.0 with
    JungleFlasher 0.1.92.Beta(304)

    I made these step by step guides to help people flash their drives right from the start using the new
    JungleFlasher 0.1.92.Beta(304) and LT+3.0 FW.

    Added
    Step by step How to connect LiteOn with CK3 + Probe and x360USB pro tutorial
    Step by step LiteOn flashing tutorial
    Step by step BenQ flashing Tutorial

    Tools and Firmware
    JungleFlasher 0.1.92.Beta(304) Download
    Latest LT+3.0 & Stock FW Pack:Download

    --------------------------------------------------------------------------------------------------
    Tutorials
    Connecting Lite-On Lite-On 02510C (74850C, 83850Cv1, 83850Cv2, 93450C) DG-16D2S
    + CK3 + X360USB Pro.

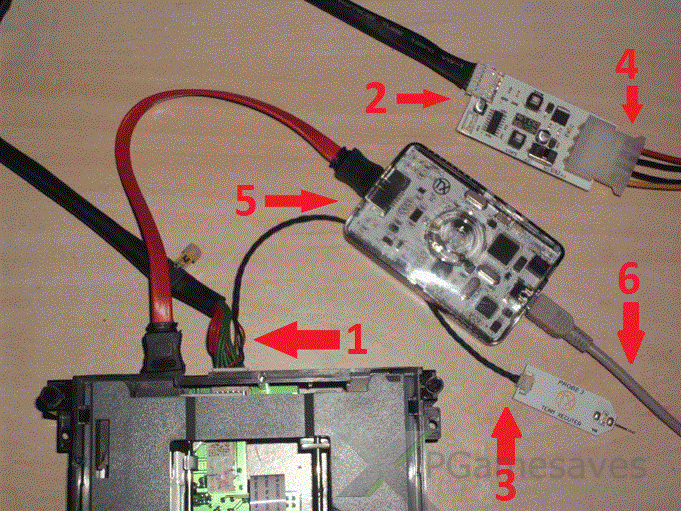

    1. Connect the CK3 PMT Cable to your DVD drive Making sure you have it the right way around.
    The yellow power button on the PMT cable should be closest to the DVD drive
    Connecting the PMT cable the wrong way around can damage your drive.

    2. Connect the other end of the PMT cable to your CK3.

    3. Connect your CK3 Probe to the Probe cable that is attached to the PMT cable.

    4. Connect the Molex power cable from your PC or from an external Molex power supply to your CK3.

    5. Connect the SATA cable from the DVD drive to your X360USB Pro.

    6. Connect the USB cable from your X360USB Pro to a USB port on your computer.

    [​IMG]

    You are now ready to begin flashing your LiteOn

    Flashing with JungleFlasher 0.1.92.Beta(304) & LT+3.0

    Lite-On Lite-On 02510C (74850C, 83850Cv1, 83850Cv2, 93450C) DG-16D2S
    CK3 + Probe and X360USB Pro

    Requirements To Flash LiteOn Drives.
    X360USB Pro
    A DVD Drive Power source (I will be using the CK3 LITE)
    CK3 Probe 3 or a Pogo Mo Thoin DIY Probe (PMT)
    JungleFlasher v0.1.91 Beta (300)
    The latest X360USB PRO firmware (must be at least v18)
    Sata Cable
    USB Cable

    The x360USB pro is not compolsary but does make connecting your drive easier
    If you do not have an x360USB Pro you can connect your drive direct to a sata port on your PC.

    The CK3 and probe however are a must have for LiteOn key extraction
    you do not need the probe for flashing so if you already have your key
    you can still update even without the CK3 and Probe.

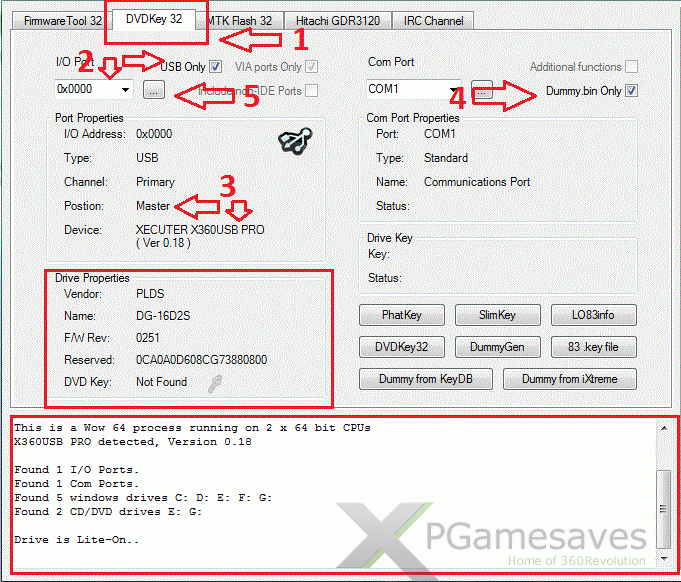

    1. Select the "DVDKey 32" Tab

    2. Make sure the USB only check box is ticked and the I/O port is set to 0x000.

    3. In the Port Properties section The X360USB pro should be detected as Primary Master and the Firmware version will be displayed, It is best to be using the latest X360USB Pro firmware which is currently v1.8.

    4. Check that the "Dummy.bin only" box is ticked
    The Dummy.bin will be the file that will contain all of the extracted information (key, inquiry, identify & serial).

    5. Click the drive refresh buton and JF should now detect and display your drive
    [​IMG]

    6. Click the "Phat Key" button
    [​IMG]

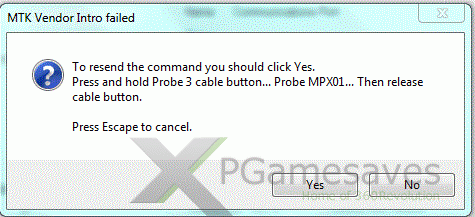

    7. You will now get a pop up message saying
    [​IMG]
    do as the message says and click "yes", JF will begin the extraction process.

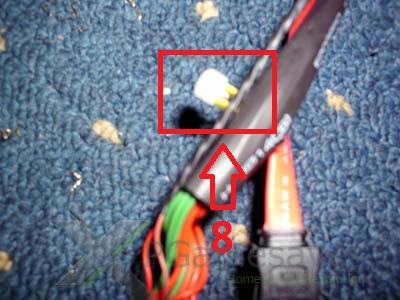

    8. Now press and hold the yellow power button This will cut the power to your drive
    and you will notice that the light on your probe has now turned off
    [​IMG]

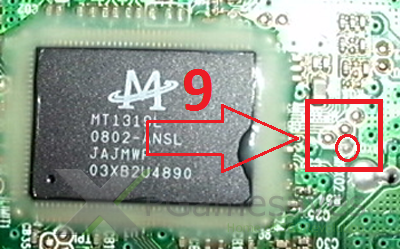

    9. Whilst holding the power button take your CK3 Probe and press it firmly on the MPX01 point
    [​IMG]

    10. Whilst still holding the probe on the MPX01 Release The Power button

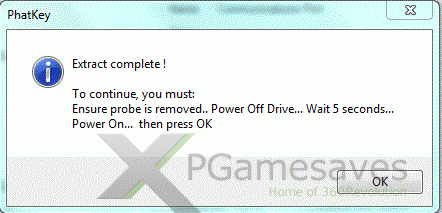

    the CK3 Probe light will come back on and you will now get another pop up saying
    [​IMG]
    Do as the message says
    • Remove the probe from the MPX01
    • Power off the drive again using the yellow power button on the PMT cable
    • Hold the power button in for 5 seconds, then release to power back on
    • Now Press OK

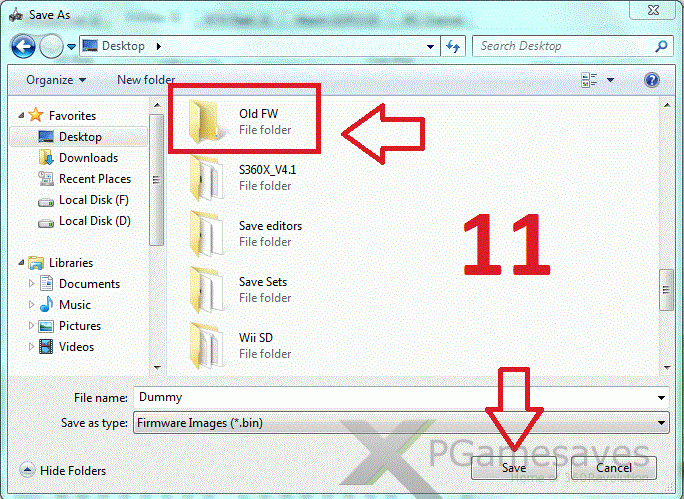

    11. your DVD drives data will now been extracted, You will now be prompted to save the Dummy.bin
    Create a folder on your desktop and save your dummy file there.
    (The dummy file contains your DVD drive key so keep it safe!)
    [​IMG]
    After Clicking save JF will change to the "Firmware 32" tab, auto-load your extracted data
    (The Dummy.bin you saved with your DVD Key) into the source buffer.

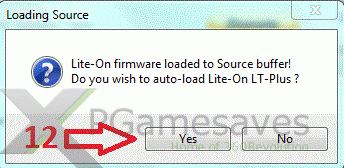

    12. You will now be presented with this message
    [​IMG]
    Click "yes" and JF will auto-load LT+3.0 into the Target Buffer

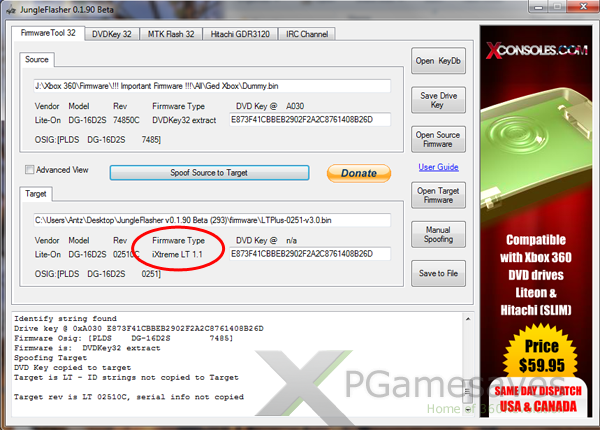

    13. after JF has loaded your dummy file and LT+3.0 be sure to check that the DVD keys match
    [​IMG]

    14. Click the "MTK Flash 32" tab
    15. Click the "Lite-On Erase" Button
    [​IMG]

    16. You will now be presented with the following message
    [​IMG]
    If you are totally sure you wish to continue click "Yes"

    17. You will be presented with a second message that explains that the drive will be erased and when it sends an intro to the drive by continuing this will also put your drive into vendor mode.

    when you are ready click "YES" and JF will begin erasing your drive and send the intro to put it into vendor mode.
    [​IMG]

    18. when the drive status is displayed as 0x90 press the yellow power button on your PMT cable for a second and then release, this will power cycle the drive.

    The status will now change to 0x72 and your drive will switch to vendor mode
    you are now ready to flash your new firmware.
    [​IMG]

    19. Click the "write" button and JF will begin writing the new FW to your drive.
    Once JF has written the FW to the drive it will then verify the flash.
    [​IMG]

    20. Finally click the "Outro / ATA Reset" button, JF will now send the outro command to your drive and take it out of vendor mode.
    [​IMG]
    Congratulations you have just finished flashing your drive with LT+3.0
    happy Gaming! [​IMG]

    Benq VAD6038

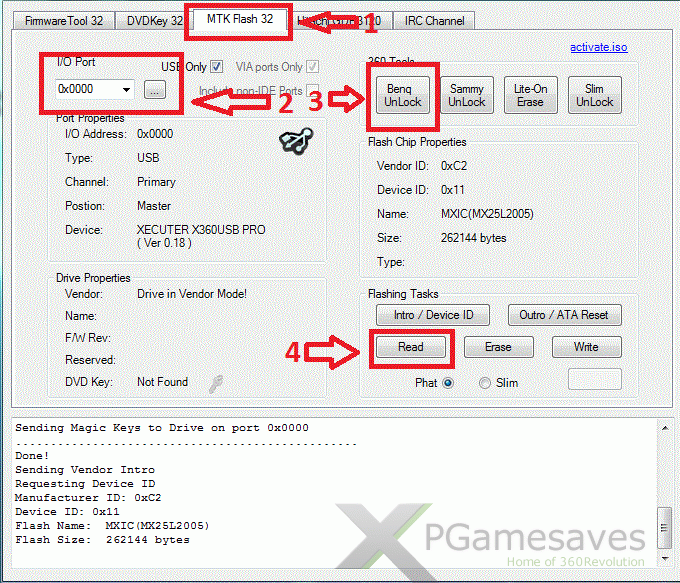

    1. First open JungleFlasher v0.1.90 Beta (293) and select the "MTK Flash 32" Tab.

    2. Scan the I/O Ports for your drive.

    If you are using the X360USB Pro to connect the drive be sure you have clicked the USB only check box and the I/O port is set to 0x000.

    3. Click the "BenQ Unlock" Tab and JF will send the magic key to your drive and then intro the device too
    Once done your BenQ drive should be in vendor mode.

    4. Now hit the "Read" button to read your drives Old FW and DVD key.

    [​IMG]

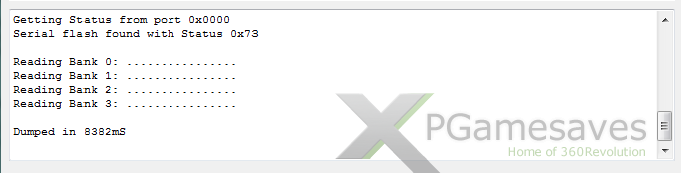

    Reading
    [​IMG]

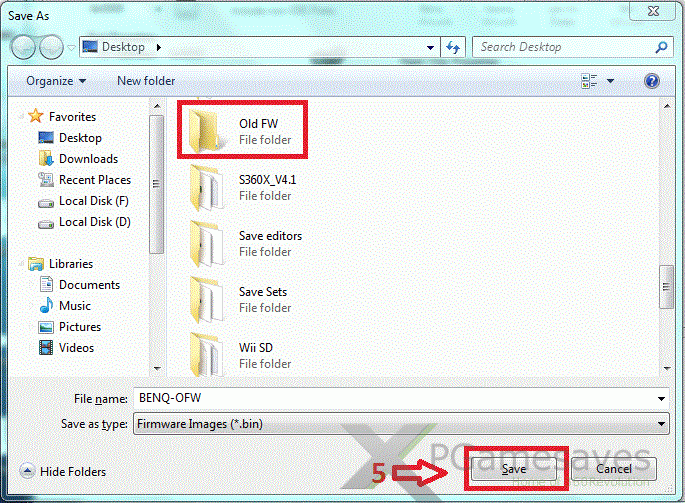

    5. Once JF has finished reading the drive it will open a window and ask you to save your Old FW
    simply make a folder in a location of your choosing and save the Old FW there.
    [​IMG]

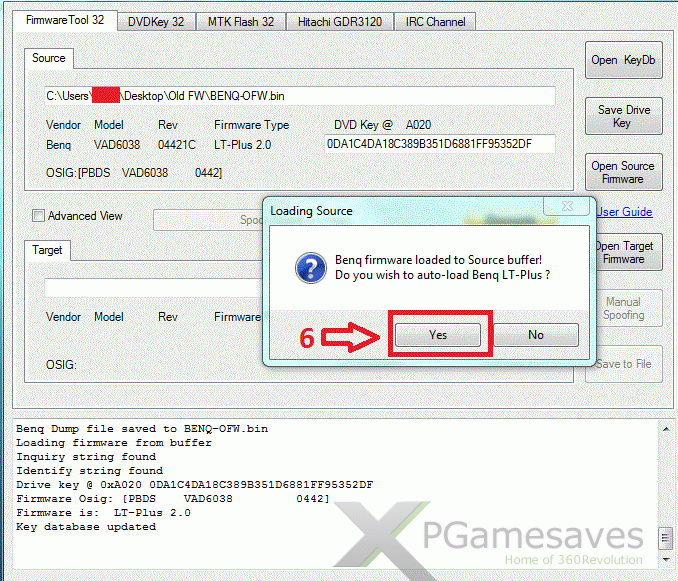

    6. Now JF will now automatically switch to the "Firmware Tool 32" Tab
    You will notice it has auto loaded your old FW into the Source Buffer along with your DVD key
    it will also ask if you wish to auto-load the Benq LT-Plus FW, Click "Yes".
    [​IMG]

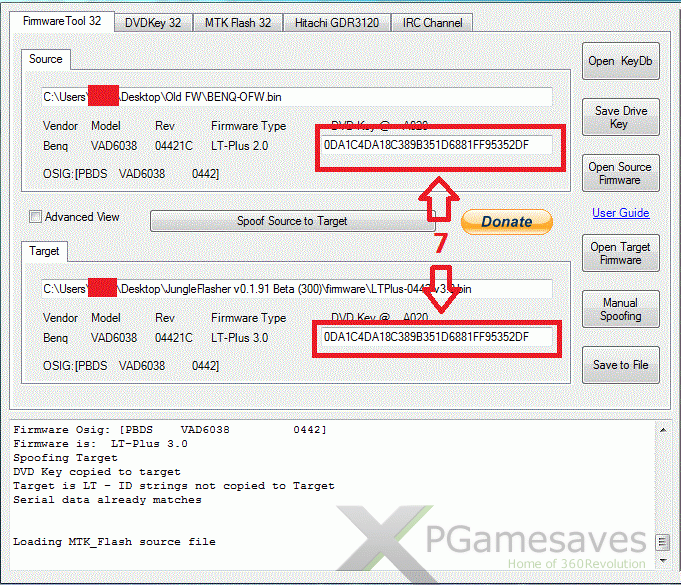

    7. Once JF has finished loading LT+3.0 into the Target Buffer make sure to check that the DVD keys Match
    and be sure you have the right version of LT+ loaded.[​IMG]
    [​IMG]

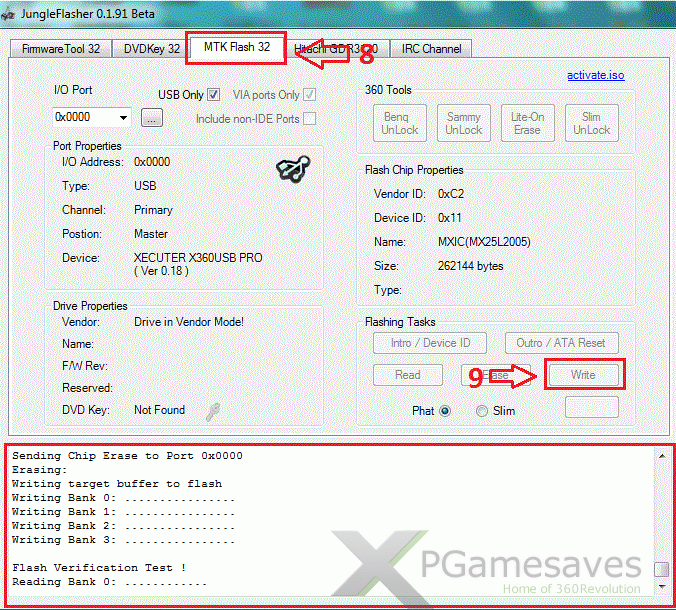

    8. Now click back to the "MTK Flash 32" Tab.
    9. click the "Write" button, JF will now start writing the new FW to the drive
    [​IMG]

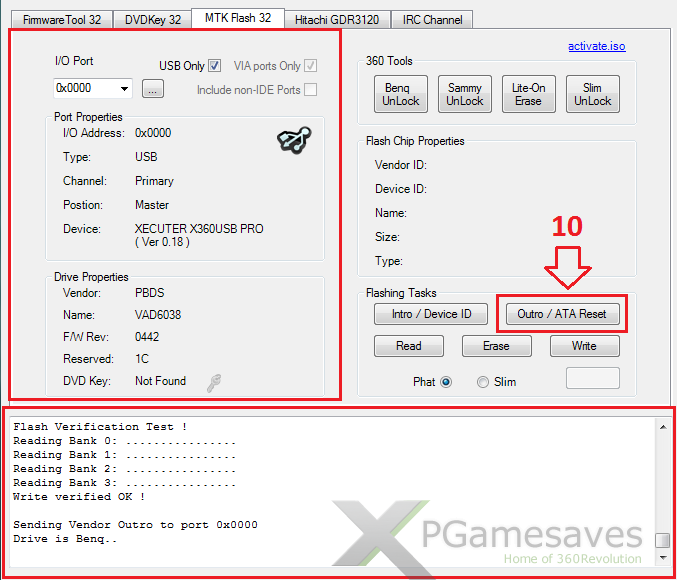

    10. Once JF has finished Writing the new FW to the drive simply click the "Outro / ATA Reset" Button
    and JF will close the drive and report back that it has once again detected your Benq drive.
    [​IMG]

    congratulations! you have just flashed your BenQ drive with LT+3.0
    Happy Gaming [​IMG]

    I hope this helps [​IMG]

    Tutorial Made By: Ccaveman84
    Property Of: www.xpgamesaves.com

    • Like Like x 20
  2. Bullet

    Bullet XPG Original Founder EST 2000 XPG Administrator XPG Founder
    550/564

    Joined:
    Jul 16, 2009
    Messages:
    20,982
    Likes Received:
    7,959
    Trophy Points:
    550
    Gender:
    Male
    Console:
    Xbox
    Great tutorial Cavey, exactly the sort of thing XPG needs.

    Plus rep+

    • Like Like x 1
  3. XPG Paddy

    XPG Paddy FTP Staff Lifetime Gold
    185/188

    Joined:
    Sep 18, 2011
    Messages:
    6,408
    Likes Received:
    903
    Trophy Points:
    185
    Gender:
    Male
    Location:
    UK
    Console:
    Xbox
    I like it! Nice

  4. ccaveman84

    ccaveman84 XPG Mod Freak XPG Developer
    0/47

    Joined:
    Sep 18, 2011
    Messages:
    4,308
    Likes Received:
    1,077
    Trophy Points:
    0
    Gender:
    Male
    Location:
    UK
    Console:
    Xbox
    Thanks guys
    When I have time I'm going to try and make one to show how to patch the XGD3's next
    I hope this one is not to confusing as it was a rush but as I say I will update it soon :)

    • Like Like x 1
  5. turlutu

    turlutu Newbie
    0/47

    Joined:
    Feb 5, 2011
    Messages:
    332
    Likes Received:
    34
    Trophy Points:
    0
    Console:
    Xbox
    thank nice tut

  6. FeralA9X

    FeralA9X The EX-Terminator Staff Member XPG Administrator
    0/47

    Joined:
    Apr 29, 2011
    Messages:
    4,368
    Likes Received:
    2,570
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Australia
    Console:
    Xbox
    nice work Ccaveman, great tut ;)

  7. DO

    DOPEBOI Gold Member Gold Subscriber
    0/47

    Joined:
    Oct 21, 2011
    Messages:
    1,884
    Likes Received:
    586
    Trophy Points:
    0
    Gender:
    Male
    Console:
    Other
    nice tut thanks!

  8. ccaveman84

    ccaveman84 XPG Mod Freak XPG Developer
    0/47

    Joined:
    Sep 18, 2011
    Messages:
    4,308
    Likes Received:
    1,077
    Trophy Points:
    0
    Gender:
    Male
    Location:
    UK
    Console:
    Xbox
    yeh mate I added that to the tut this morning as I noticed the same thing :p

    Thanks guys hope it was helpful, I made it as it confused me a but to when I flashed my BenQ lol :p

  9. go

    gooseville Newbie
    0/47

    Joined:
    Dec 27, 2011
    Messages:
    8
    Likes Received:
    3
    Trophy Points:
    0
    Console:
    Xbox
    Hi.

    I've had my drive flashed by somebody else a couple of times (currently on lt+ 2.0) but i'm going to have a go myself this time.

    Your guide is very clear and well put together, but my problem is where to actually start from.

    You assume that we already know how to extract old firmware and dvd key, and that is where i'm stuck. I do not know how to do this but my dvd key was given to me the first time I had my drive flashed (it is written in a .txt file).

    None of the guides I've seen start from this point. They either start with .bin files or from the very beginning with the extraction of information from the drive using probes etc.

    Would you be able to help me out with a short guide that shows how start the flashing process when all you have is the dvd key?

    Thanks ;)

  10. ccaveman84

    ccaveman84 XPG Mod Freak XPG Developer
    0/47

    Joined:
    Sep 18, 2011
    Messages:
    4,308
    Likes Received:
    1,077
    Trophy Points:
    0
    Gender:
    Male
    Location:
    UK
    Console:
    Xbox
    For sure mate I only done this quick guide as it was Christmas day and I was a little drunk lol

    I will update this guide for you for use with the new JungleFlasher.0.1.91.Beta(300)
    which can be found here http://www.xpgamesav...ta300-released/

    The new JF adds support for LT+3.0 BenQ and LiteOn

    What drive do you have?

  11. go

    gooseville Newbie
    0/47

    Joined:
    Dec 27, 2011
    Messages:
    8
    Likes Received:
    3
    Trophy Points:
    0
    Console:
    Xbox
    Brilliant guide, considering you were drunk, lol.

    I have a phat liteon 93450c, which is now 02510c following the dashboard update.

    I haven't updated the dashboard to the very latest version yet as I know it's recommended to flash back to stock before doing this.

    I'm assuming I'll be able to download stock firmware for my drive, correct me if i'm wrong.

    Thanks for the help ;)

  12. XPGCaboose

    XPGCaboose XPG Lifer TeamXPG
    0/47

    Joined:
    Aug 26, 2009
    Messages:
    6,016
    Likes Received:
    707
    Trophy Points:
    0
    Gender:
    Male
    Location:
    California, USA
    Console:
    Xbox
    Great little TuT Caveman. Keep it up m8.

  13. ccaveman84

    ccaveman84 XPG Mod Freak XPG Developer
    0/47

    Joined:
    Sep 18, 2011
    Messages:
    4,308
    Likes Received:
    1,077
    Trophy Points:
    0
    Gender:
    Male
    Location:
    UK
    Console:
    Xbox
    I have finished the guide for benq and will be starting on the LiteOn tut shortly
    you will need to flash to stock, update to the new dash then flash LT+3.0
    You can download the latest LT+ fw pack from the first post which contains all stock FW needed for all drives

    Check back in a while/tomorrow for the LiteOn tut
    To extract your LiteOn key you will need a CK3 and CK3 probe
    If you already have the key backup you will not need to worry about the probe :)

  14. ccaveman84

    ccaveman84 XPG Mod Freak XPG Developer
    0/47

    Joined:
    Sep 18, 2011
    Messages:
    4,308
    Likes Received:
    1,077
    Trophy Points:
    0
    Gender:
    Male
    Location:
    UK
    Console:
    Xbox
    UPDATED! 28/12/11

    I changed the guide to be a more in depth step by step tutorial
    I also added 2 extra tutorials.

    Each tutorial is in a spoiler as not to take up to much space. :)

    Added
    Step by step How to connect LiteOn with CK3 + Probe and x360USB pro tutorial
    Step by step LiteOn flashing tutorial
    Step by step BenQ flashing Tutorial


    I would very much appreciate it if you guys could read through these as I would like to hear your feedback
    to to see if there is anything I could change or improve on in these tutorials. :p

    http://www.xpgamesav...dpost__p__84482

  15. ccaveman84

    ccaveman84 XPG Mod Freak XPG Developer
    0/47

    Joined:
    Sep 18, 2011
    Messages:
    4,308
    Likes Received:
    1,077
    Trophy Points:
    0
    Gender:
    Male
    Location:
    UK
    Console:
    Xbox
    I have updated the LiteOn guide mate

    and I have also added the guide in this post just for you :)
    as you already have the key you will not need to use the probe as this is only needed for key extraction.

    Ignore the numbers on the pictures as I pulled the pics from the main guide
    you only need to follow the steps given and arrows on the pics

    Remember to flash back to stock first and update if you are not on the latest dashbord and then flash to LT+3.0

    Flashing LiteOn When you already have the DVD key
    If you don't have a CK3 you can power your drive using the Xbox console for power
    If you don't have an X360USB pro you can connect the sata cable to one on your PC

    1. Open JF go to the "Firmware Tool 32" tab

    2. Click open source FW and load your old FW/DVD key into the source buffer

    3. JF should ask if you wish to auto load the LT+ 3.0 FW

    4.Click yes and JF should load LT+ 3.0 into the Target Buffer
    Make sure your source DVD key matches the one in the target buffer
    if they don't then click spoof source to target and this will copy your DVD key to the new FW
    [​IMG]


    5. Click the MTK Flash tab
    6. Click the LiteOn erase button
    [​IMG]

    7. you will get 2 warning messages simply explaining that JF is about to erase your drive and intro it into vendor mode, click yes to continue
    [​IMG][​IMG]

    8. when the drive status is displayed as 0x90 press the yellow power button on your PMT cable for a second and then release, this will power cycle the drive.

    If your not using a CK3 with PMT cable you will need to pull the power cable from the drive at this point
    and re-attach it within a few seconds in order to power cycle.


    Dont rush when doing this as you do not want to damage the pins in the drives power port.

    8.If done correctly the status will now change to 0x72 and your drive will switch to vendor mode
    you are now ready to flash your new firmware.
    [​IMG]

    9. Click the "write" button and JF will begin writing the new FW to your drive.
    Once JF has written the FW to the drive it will then verify the flash.
    [​IMG]

    10. Finally click the "Outro / ATA Reset" button, JF will now send the outro command to your drive and take it out of vendor mode.
    [​IMG]
    Congratulations you have just finished flashing your drive with LT+3.0
    happy Gaming! :)

    • Like Like x 1
  16. ADDZ

    ADDZ ( * Y * ) Staff Member XPG Founder
    565/752

    Joined:
    Dec 12, 2010
    Messages:
    15,917
    Likes Received:
    6,683
    Trophy Points:
    565
    Location:
    Behind you sniffing your hair!
    Console:
    Playstation 4
    Great looking tut, nice and simple. Spot on Caveman.

  17. ccaveman84

    ccaveman84 XPG Mod Freak XPG Developer
    0/47

    Joined:
    Sep 18, 2011
    Messages:
    4,308
    Likes Received:
    1,077
    Trophy Points:
    0
    Gender:
    Male
    Location:
    UK
    Console:
    Xbox
    Thanks man always glad to help where I can I will update the tutorials in the OP soon
    to include the guide I just added for goosville with updated pics :)

    • Like Like x 1
  18. go

    gooseville Newbie
    0/47

    Joined:
    Dec 27, 2011
    Messages:
    8
    Likes Received:
    3
    Trophy Points:
    0
    Console:
    Xbox
    Thanks a lot for the guide Ccaveman84, very much appreciated :D

    On point 2 where you say to 'click open source FW and load your old FW/DVD key into the source buffer' it looks as though you have loaded a .bin file. As I only have the dvd key written down in a .txt file is this the file I should load, or will I have to manually input this instead?

  19. ccaveman84

    ccaveman84 XPG Mod Freak XPG Developer
    0/47

    Joined:
    Sep 18, 2011
    Messages:
    4,308
    Likes Received:
    1,077
    Trophy Points:
    0
    Gender:
    Male
    Location:
    UK
    Console:
    Xbox
    Nice OK in this case you will want to skip loading to the source buffer

    instead click "open target" and load LT+3.0 for LiteOn (LTPlus-0251-v3.0.bin)

    once you have loaded 3.0 into the target buffer click "manual spoofing" and you will be presented with this window
    [​IMG]

    Now click "load key.bin" and locate your key.bin and click "OK"

    you should now have LT+3.0 for LiteOn in the target buffer with your key loaded and spoofed to the firmware

    Now continue with the tutorial I gave you from step 5 and you should be all good
    I hope this helps mate :)

    Also I have noticed we have not seen anything in the forums from you
    why not introoduce yourself in the intro section
    http://www.xpgamesav...-introductions/

    • Like Like x 1
  20. go

    gooseville Newbie
    0/47

    Joined:
    Dec 27, 2011
    Messages:
    8
    Likes Received:
    3
    Trophy Points:
    0
    Console:
    Xbox
    I don't have a key.bin file, all i have is the dvd key written in a .txt file that I created.


Share This Page

Close
