[TuT] How to play Original Xbox Games On a JTAG/RGH.

XPG Darkside Mar 9, 2014

  1. XPG Darkside

    XPG Darkside Eating cake.... Gold Subscriber Lifetime Gold
    25/47

    Joined:
    Oct 20, 2011
    Messages:
    8,905
    Likes Received:
    5,012
    Trophy Points:
    460
    Gender:
    Male
    Occupation:
    Eating cake.
    Location:
    In Rockys Fridge....
    Console:
    Xbox One
    Hello all simple tut on how to play orignal xbox games on a JTAG/RGH.

    First of all you're going to need a few things.

    • Xbox1 Hacked Compatability Files provided by Caveman. Download Links Below.
    • A FTP program such as Flash FXP, Cute FTP Ect.
    • A orignal xbox game of your choice for this I'm using black.
    • exiso-GUI
    Ok so first you need to download the files by clicking me.

    Now connect your Xbox 360 HDD to your PC this can be done in a few ways either via FTP, SATA, or transfer cable.

    Once connected you will see this.

    [​IMG]

    Open Hdd1 and go to this folder.

    [​IMG]
    Now put the files what you downloaded into here.

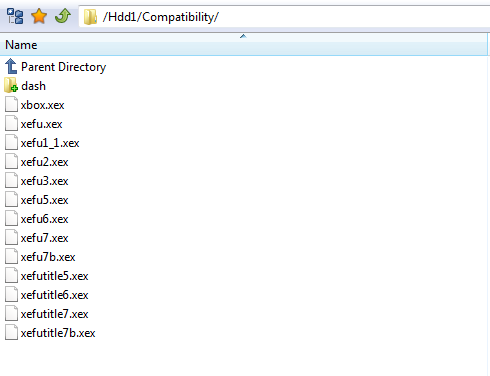

    Once you have done that it should look like this.

    [​IMG]

    Now in the root of HDD1 make a folder and name it Xbox1 so it looks like this.

    [​IMG]

    This is where you will put all off your Xbox Original games.

    Now we need the ISO,

    [​IMG]

    For this do as you would with any Xbox 360 ISO JTAG rip it using exiso-GUI.

    Open exiso-GUI and locate the folder you want to RIP the ISO to.

    [​IMG]

    Next click add ISO. And click copy $ystem update folder.

    Then click the big GO button at the bottom.

    [​IMG]

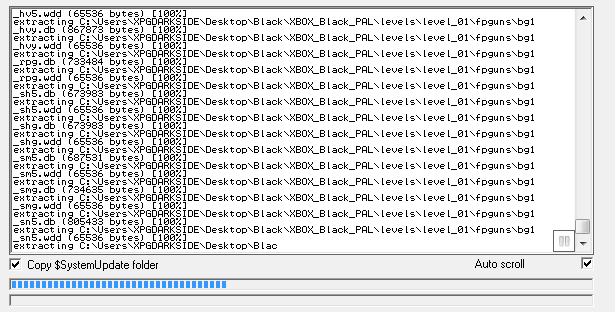

    Once you have pressed that you should see something like this.

    [​IMG]

    Wait for the ISO to rip this shoudn't take that long usualy around 5mins depending on how many files the game has and your pc/laptop.

    Once it has done you will see a window like this.

    [​IMG]

    Note there is no notifaction sound to say it has completed so keep a eye on it.

    Now all we need to do is copy the game over to the folder we made eariler on your HDD like you would with any other game you rip.

    This can be done via USB or FTP. I prefare to use FTP as it's faster.

    Once the game has finshed transfering close down your FTP program and reboot your JTAG/RGH.

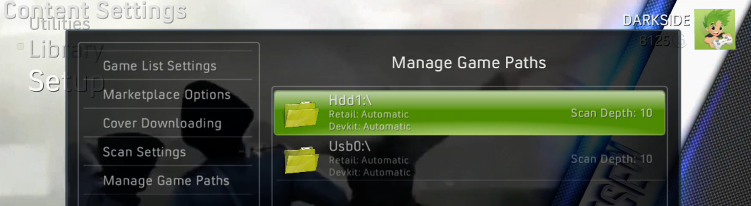

    Now once you have rebooted make a new game path to the Xbox1 loacation on your HDD and set the scan to 10 so it looks like this.

    [​IMG]

    Once you have got this setup go to your Xbox Classic tab.

    [​IMG]

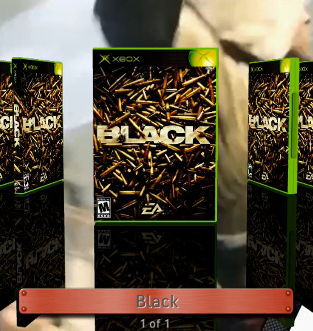

    Once your in here you should now see your game like this.

    [​IMG]

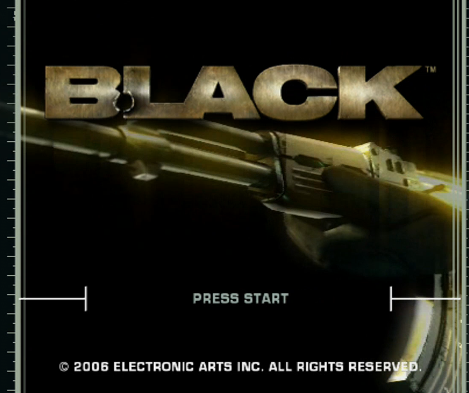

    Now simply press play like any other game and your done.

    [​IMG]

    Now you can enjoy all your orignal xbox classics all over again.

    Enjoy Dark ;)

  2. no

    nobody1148 i like rocks Lifetime Gold
    55/94

    Joined:
    Mar 10, 2013
    Messages:
    443
    Likes Received:
    59
    Trophy Points:
    55
    Gender:
    Male
    Location:
    Germany
    Console:
    Xbox One
    sweet TUT thanks for sharing

  3. Ro

    Rocky Guest

    Amazing DS ;)

  4. Renegade

    Renegade Super Special Awesome XPG Developer
    105/188

    Joined:
    Nov 19, 2009
    Messages:
    1,212
    Likes Received:
    894
    Trophy Points:
    105
    Gender:
    Male
    Location:
    United Kingdom
    Console:
    Xbox
    Except only a handful of games work unfortunately.

  5. HOKKUSPOKKUS

    HOKKUSPOKKUS XPG
    105/188

    Joined:
    Jan 4, 2013
    Messages:
    1,211
    Likes Received:
    564
    Trophy Points:
    105
    Gender:
    Female
    Location:
    French /Paris :-)
    Console:
    Xbox
    Great !!! <XPGDARKSIDE> Thnks m8:)

  6. reloadmydeagle

    reloadmydeagle I LoVe GoldZ Lifetime Gold XPG Retired Staff
    135/188

    Joined:
    Oct 30, 2013
    Messages:
    1,608
    Likes Received:
    656
    Trophy Points:
    135
    Gender:
    Male
    Location:
    Texas
    Console:
    Xbox One
    Sweet hopefully this will work on a USB. Right now it's saying I need an HDD to play Spongebob :(

  7. Aqzea

    Aqzea Banned
    0/47

    Joined:
    Aug 16, 2013
    Messages:
    1,562
    Likes Received:
    256
    Trophy Points:
    0
    Gender:
    Male
    Location:
    666
    Console:
    Xbox
    So much work :mad:

  8. darkhiyoo

    darkhiyoo Developer XPG Developer
    25/47

    Joined:
    May 22, 2012
    Messages:
    68
    Likes Received:
    197
    Trophy Points:
    25
    Console:
    Xbox
    Thank you , great tut ;)

  9. OfficialSilas

    OfficialSilas The PC Wizard
    105/188

    Joined:
    Jan 11, 2014
    Messages:
    1,578
    Likes Received:
    507
    Trophy Points:
    105
    Gender:
    Male
    Location:
    Australia
    Console:
    Other
    Thanks DS, Will be doing this sometime soon ;)

  10. ba

    badsmell101 Member
    25/47

    Joined:
    Mar 11, 2011
    Messages:
    41
    Likes Received:
    0
    Trophy Points:
    25
    Console:
    Xbox
    awesome thanks

  11. thefinalwolf

    thefinalwolf Rookie
    15/47

    Joined:
    Nov 25, 2012
    Messages:
    17
    Likes Received:
    1
    Trophy Points:
    15
    Gender:
    Male
    Location:
    USA
    Console:
    Xbox
    Darn, didn't work for me.
    "The game couldn't start. Try downloading the game again."

    They work fine on my modded Xbox Original...

  12. st

    startreker Newbie
    0/47

    Joined:
    Nov 26, 2010
    Messages:
    1
    Likes Received:
    1
    Trophy Points:
    0
    Console:
    Playstation 3
    The biggest issue with this tutorial is that you should be replacing the compatibility inside hddx. If you are under freestyle dash just go into settings and find the checkbox that says something about developer options for hddx and that kind of stuff. Once you check that you should be able to FTP into the box and replace the compatibility folder. Worked like a charm for me.

  13. mickey79

    mickey79 Developer XPG Developer
    0/47

    Joined:
    Jan 26, 2012
    Messages:
    892
    Likes Received:
    189
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Burbank, California
    Console:
    Xbox
    First of all a major thanks to XPGDarkside for this fantastic tutorial; especially for posting the necessary files. Thank you so much!

    I have to agree with startreker; this works if you post the files in the 'Compatibility' folder in the hddx folder, not the hdd1 folder. Perhaps it does work with hdd1 under some systems, I'm not sure. hddx worked for me.

    Perhaps we could add this to Original post.

    Thank both!

  14. Wh

    WhatuMadBroXD Member
    25/47

    Joined:
    Feb 12, 2012
    Messages:
    72
    Likes Received:
    32
    Trophy Points:
    25
    Console:
    Xbox
    This tut is slightly wrong, The compatibility files go in HDDX, which is partition 2, if your hdd does not have a hddx you will need the partion2 fix for modded console, with the xex that enables the fix, once the partition2 /hddx is there you put the compatibility files there, the way this tut is wrote it might work for some and not all, but the correct way is to put the files in HDDX Not HDD1

  15. smokedabeatbox

    smokedabeatbox Newbie
    0/47

    Joined:
    Jan 8, 2015
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Somewhere.
    Console:
    Xbox
    It says : The game couldn't start. Try downloading the game again.

  16. muhab

    muhab Newbie
    5/47

    Joined:
    Feb 20, 2017
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Gender:
    Male
    Console:
    Xbox

  17. ga

    games805 Rookie
    20/47

    Joined:
    Aug 14, 2014
    Messages:
    66
    Likes Received:
    1
    Trophy Points:
    20
    you need the 2011 files
    these are the old 2007

  18. ja

    jam9414 Newbie
    5/47

    Joined:
    Feb 9, 2011
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Console:
    Xbox
    So I downloaded a modded gamesave for one of the classic games I downloaded but I can't seem to find the actual save location for xbox original games. Anyway to do this ?

  19. sonygoup

    sonygoup Member
    25/47

    Joined:
    Jan 21, 2014
    Messages:
    190
    Likes Received:
    13
    Trophy Points:
    25
    Gender:
    Male
    Location:
    Trinidad and Tobago
    Console:
    Xbox
    not working for me at all...sigh
