{TUT} How to update JTAG/RGH Dash To 16747.

XPG Darkside Apr 9, 2014

  1. XPG Darkside

    XPG Darkside Eating cake.... Gold Subscriber Lifetime Gold
    0/47

    Joined:
    Oct 20, 2011
    Messages:
    8,905
    Likes Received:
    5,012
    Trophy Points:
    460
    Gender:
    Male
    Occupation:
    Eating cake.
    Location:
    In Rockys Fridge....
    Console:
    Xbox One
    Hey all quick tutorial on how to update JTAG/RGH Dash To 16747.

    First off all you will need a few things.
    1. A usb drive.
    2. Flash 360
    3. 16747 files.
    4. XEX Menu.
    First off all plug your USB into PC/Laptop and copy over the Flash 360 Folder.

    Once copied unplug and plug it into your xbox.

    Boot to FSD and locate the Flash 360 folder by using the filemanager.

    Once booted you will see this.

    [​IMG]

    Now press X to backup your nand img.

    Then press A to start backing up the nand.

    You will see something like this.

    [​IMG]

    Once done press any button to continue.

    Now press your back button to exit out of flash 360.

    Now go to your retail dash and into XEX Menu.

    Change your device to the location where flash 360 can be found and you should now have a flashdmp.bin file.

    Now turn the xbox off and remove the USB and plug it back into your PC/Laptop.

    Now you’re back on your pc extract the 16747 files using win rar.

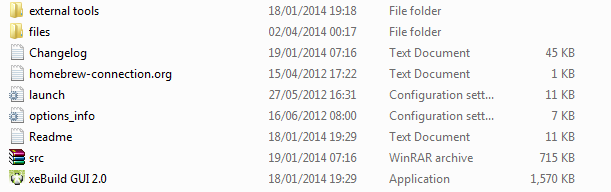

    You should now have a folder what looks like this.

    [​IMG]

    Now open xeBuild GUI 2.0

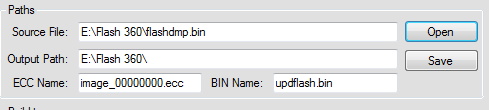

    Now click SOURCE FILE and open your nand img from your USB.

    So it looks like this.

    [​IMG]

    Now select where to save your output image I always use my desktop for this.

    [​IMG]

    Now in kernel version type in 16747 so it looks like this.

    [​IMG]

    You now need your CPU key this can be found by booting to Xell or in dashlaunch in console information.

    Enter this into this box.

    [​IMG]

    Now click generate hacked image.

    Once done it will say xebuild finished have a nice day and ask you to close the program click yes.

    Now go back to your USB and find your flashdmp and back it up first as you need to delete it.

    Now simply copy the updflash.bin file onto the USB.

    Now eject the USB and plug it back into your JTAG/RGH.

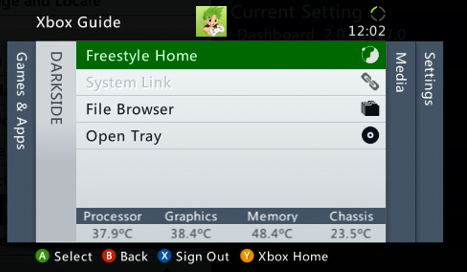

    This is Proof that I’m on 16457 before doing this.

    [​IMG]

    [​IMG]

    Now boot into xexmenu and go to the flash360 location like this.

    [​IMG]

    Once you are in here press the flash360.xex.

    You should now have a blue screen what looks like this.

    [​IMG]

    Now Press A twice.

    Now press start.

    Then A once again.

    You should now see it’s writing the new nand.

    [​IMG]

    [​IMG]

    Once done press any button.

    Now you should be back to this menu.

    [​IMG]

    This is the IMPORNANT PART.

    Once you press back the screen will countdown to 0 once it has turned off unplug EVERYTHING from the console this means ALL USB’S HDMI POWER AND THE MAIN HDD.

    LEAVE THESE UNLPGED FOR 30 SECONDS THEN PLUG THEM BACK IN.

    Once 30seconds are up plug everything back into the console and you should have your new dash 16747.

    Note please.

    If you boot up and your console freezes when you power on,hold the eject button untill the console loads up the dashboard then go to dashlaunch and take the xblse.xex plugin off and save your launch.ini

    Once you are now booted go into console settings and check your dash.

    [​IMG]

    BOOM you are now on 2.0.16747.0

    Enjoy Thanks Darkside ;)

  2. Ro

    Rocky Guest

    Nice tut DS, This should help alot of members out ;)

  3. AD

    ADDZ Guest

    Nice step by step there DS, spot on ;)

  4. g19smoker

    g19smoker RGH Proness Lifetime Gold
    125/188

    Joined:
    Jan 17, 2011
    Messages:
    2,031
    Likes Received:
    391
    Trophy Points:
    125
    Gender:
    Male
    Console:
    Xbox
    ohh yes this works a treat thank you sooooo much for your help great tut man..

  5. Aa

    Aaron 0x539
    0/47

    Joined:
    Jun 18, 2010
    Messages:
    447
    Likes Received:
    64
    Trophy Points:
    0
    Gender:
    Male
    Location:
    UK.
    Console:
    Xbox
    Does anyone have the 16747 files? Can't find them :(

  6. Signed

    Signed Newbie
    0/47

    Joined:
    Jan 26, 2014
    Messages:
    96
    Likes Received:
    12
    Trophy Points:
    0
    Gender:
    Male
    Console:
    Xbox
    Yeah, where do you get the 16747 files?

  7. al

    alijafri Rookie
    10/47

    Joined:
    Nov 14, 2012
    Messages:
    9
    Likes Received:
    1
    Trophy Points:
    10
    Console:
    Xbox
    Thank you this was really easy to follow! updated my xbox to 16756 ^_^

  8. EPiiC x TEAM

    EPiiC x TEAM 404 Not Found Lifetime Gold
    55/94

    Joined:
    Aug 30, 2012
    Messages:
    327
    Likes Received:
    212
    Trophy Points:
    55
    Gender:
    Male
    Location:
    Belgium
    Console:
    Xbox One
    Or if u have stealth on just download the update from xbl 16756 works fine for me :D if i do it this way my avatars dont work anymore and are plain white anyway... Good tut tho btw

    U can get the latest dashboard update from the xbox main website/support: Here

  9. maquee

    maquee Newbie
    0/47

    Joined:
    Jan 11, 2013
    Messages:
    40
    Likes Received:
    0
    Trophy Points:
    0
    Gender:
    Male
    Location:
    bangkok
    Console:
    Xbox
    I updated it and since then my avatar is blank... so what the solutions to fixing it???? I tried to put the $systemupdate folder on a stick and still it aint working?

  10. alex32

    alex32 Newbie
    0/47

    Joined:
    May 17, 2012
    Messages:
    346
    Likes Received:
    28
    Trophy Points:
    0
    Gender:
    Male
    Location:
    spain
    Console:
    Xbox One
    nice tut :gamer4:

  11. lp

    lpansat222 Newbie
    0/47

    Joined:
    Jan 2, 2015
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    it work perfect because I can now play far cry 4 without error
