    Xecuter CoolRunner - Phat Install (QSB)



    We recommend that the CoolRunner is programmed first with the correct jed/xsvf file before installation.
    ( Found here: CLICK HERE )

    Use the wires that are included with the CoolRunner kit. They are cut to optimum length. Make sure the switch is set to PHAT (Yes I had to say this as you'd be surprised as to how many people would ask lol)

    [​IMG]

    This is how the position of the CoolRunner looks like when installed to a phat.

    [​IMG]

    Here are how the bottom wires are positioned. I used a hot glue gun to make a nice neat job.

    [​IMG]

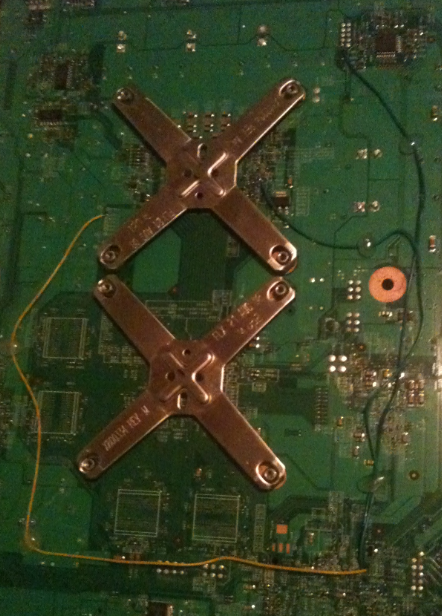

    UPDATE: It has been reported that some consoles have trouble booting or boot fine but freeze frequently. One of our members, Westbox found that if he routed the wires a little differently on the back of his board he get perfect boots every time with no freezing. here is his diagram (you can see the difference from the above picture):

    [​IMG]

    Troubleshooting

    If you have a Big Block Jasper (256/512) and your boot times are very slow (Over 30 seconds) then we suggest you add a 68nF 100V Ceramic Capacitor across PLL_BYPASS (A) & GND like the following picture (thanks to SeanR28).

    [​IMG]

    Another troubleshooting tip: Switch the CoolRunner to Slim and see if the times improved - this works for some [​IMG]

    This tut was by the amazing Uber Geek from T-X.

    • Like Like x 3
  2. Bullet

    Bullet XPG Original Founder EST 2000 XPG Administrator XPG Founder
    550/564

    Joined:
    Jul 16, 2009
    Messages:
    20,982
    Likes Received:
    7,961
    Trophy Points:
    550
    Gender:
    Male
    Console:
    Xbox
    Fantastic tutorial ADDZ.

    Cant wait to have a crack at this myself.

  3. X9Cinema

    X9Cinema Resident GFX Guru Lifetime Gold
    0/47

    Joined:
    Dec 9, 2011
    Messages:
    2,596
    Likes Received:
    476
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox
    I would love to do this, but I'm kinda a noob at soldering, and I don't wanna screw up so I'm going to have a friend RGH it for me. :D

  4. ADDZ

    ADDZ ( * Y * ) Lifetime Gold XPG Retired Staff TeamXPG
    595/752

    Joined:
    Dec 12, 2010
    Messages:
    15,936
    Likes Received:
    6,686
    Trophy Points:
    595
    Location:
    Behind you sniffing your hair!
    Console:
    Playstation 4

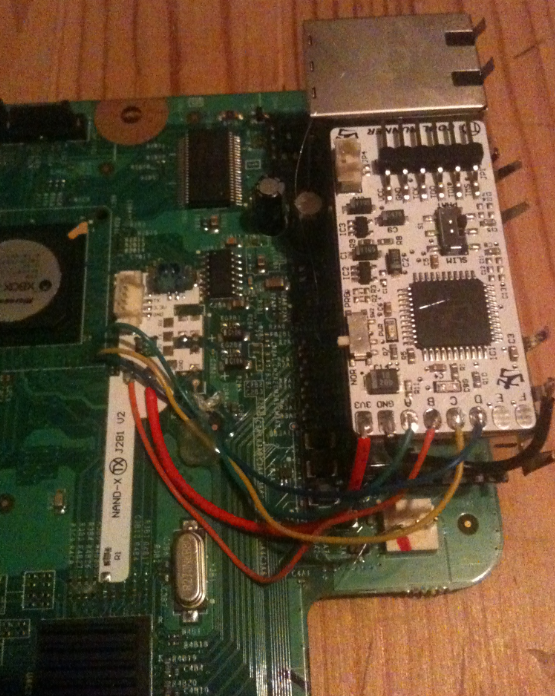

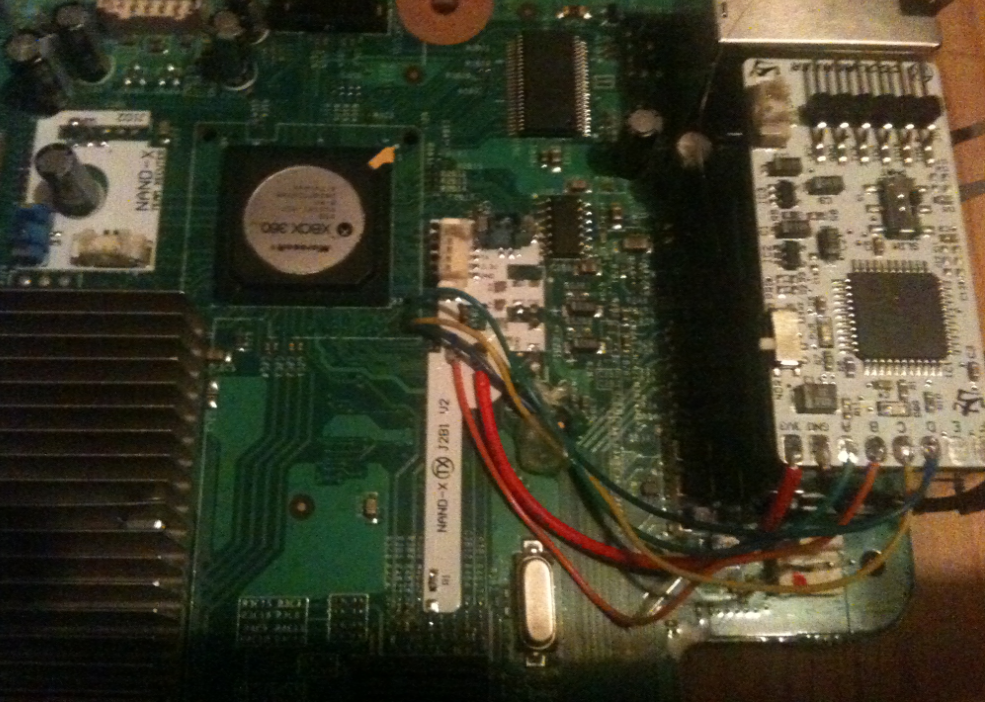

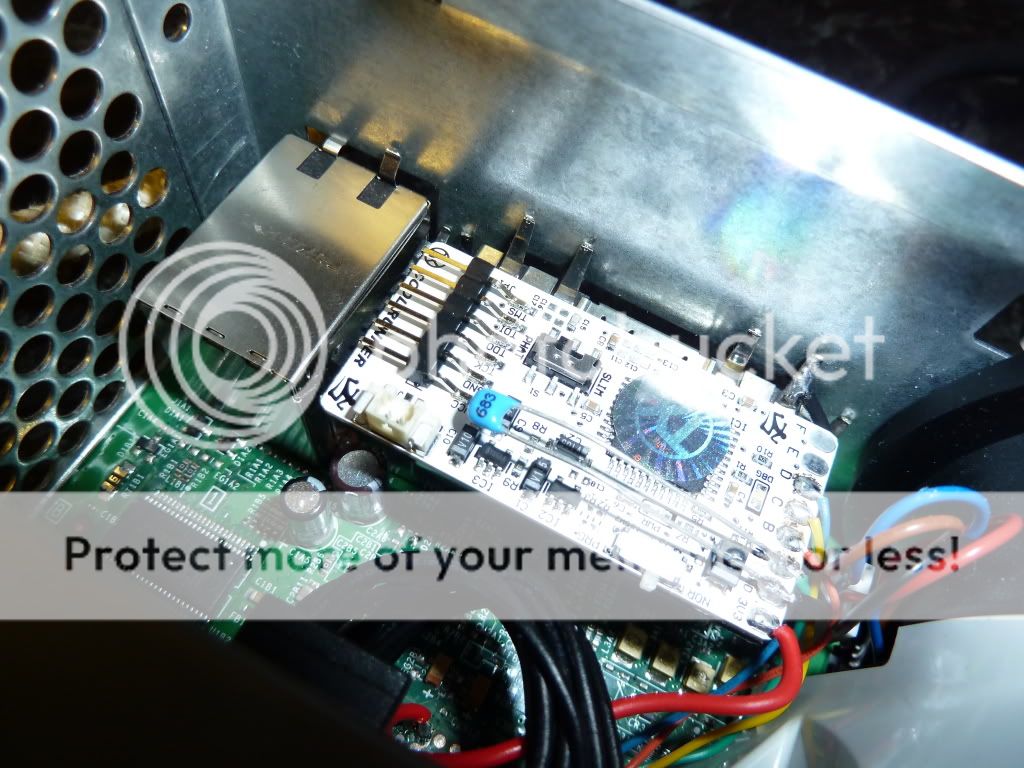

    This is my 1st attempt, I enjoyed it if I'm honest :p

    [​IMG]

    [​IMG]

    [​IMG]

    • Like Like x 1
  5. splatsters

    splatsters PS3 Section Mod Gold Subscriber
    155/188

    Joined:
    Jan 27, 2010
    Messages:
    4,876
    Likes Received:
    376
    Trophy Points:
    155
    Location:
    In the bush like a pepping tom
    Console:
    Xbox
    Thats not bad mate i'll shout you asap

  6. ADDZ

    ADDZ ( * Y * ) Lifetime Gold XPG Retired Staff TeamXPG
    595/752

    Joined:
    Dec 12, 2010
    Messages:
    15,936
    Likes Received:
    6,686
    Trophy Points:
    595
    Location:
    Behind you sniffing your hair!
    Console:
    Playstation 4
    I'm screwed though mate, I never knew I needed a Nand-X to dump the nand so I'll need to order on and it'll not get here until after Xmas :(

  7. madasahat

    madasahat Official XPG Spastic
    155/188

    Joined:
    Jul 21, 2009
    Messages:
    6,089
    Likes Received:
    558
    Trophy Points:
    155
    Gender:
    Male
    Location:
    LUFC
    Console:
    Computer
    nice job there addz, just need a nand dump now eh! (cant u get it old school??)

  8. ADDZ

    ADDZ ( * Y * ) Lifetime Gold XPG Retired Staff TeamXPG
    595/752

    Joined:
    Dec 12, 2010
    Messages:
    15,936
    Likes Received:
    6,686
    Trophy Points:
    595
    Location:
    Behind you sniffing your hair!
    Console:
    Playstation 4
    I could old school it mate but I just got my QSB's in place :( I'll buy a Nand-X now and get drunk until the 28th when the post comes back to life lol

  9. madasahat

    madasahat Official XPG Spastic
    155/188

    Joined:
    Jul 21, 2009
    Messages:
    6,089
    Likes Received:
    558
    Trophy Points:
    155
    Gender:
    Male
    Location:
    LUFC
    Console:
    Computer
    OK Sir ADDZ, I love you BTW and will you please stop beating me like a ginger stepson?! :(

  10. ADDZ

    ADDZ ( * Y * ) Lifetime Gold XPG Retired Staff TeamXPG
    595/752

    Joined:
    Dec 12, 2010
    Messages:
    15,936
    Likes Received:
    6,686
    Trophy Points:
    595
    Location:
    Behind you sniffing your hair!
    Console:
    Playstation 4
    Yes, no probs mate :D

  11. madasahat

    madasahat Official XPG Spastic
    155/188

    Joined:
    Jul 21, 2009
    Messages:
    6,089
    Likes Received:
    558
    Trophy Points:
    155
    Gender:
    Male
    Location:
    LUFC
    Console:
    Computer
    I am actally chuckling here m8 at that

    "bullet, bullet addz is cheeeeeeeeeeeeeeeeeeeeeeting [insert whiny voice]"

  12. ADDZ

    ADDZ ( * Y * ) Lifetime Gold XPG Retired Staff TeamXPG
    595/752

    Joined:
    Dec 12, 2010
    Messages:
    15,936
    Likes Received:
    6,686
    Trophy Points:
    595
    Location:
    Behind you sniffing your hair!
    Console:
    Playstation 4
    Lmao x :kiss:

  13. bg

    bgareballer Newbie
    0/47

    Joined:
    Jan 2, 2012
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    0
    Console:
    Xbox
    does anyone have a pic of solder points without the qsb as i dont like using them thanks

  14. iXiPerfXtionZx

    iXiPerfXtionZx Newbie
    0/47

    Joined:
    Apr 16, 2012
    Messages:
    32
    Likes Received:
    3
    Trophy Points:
    0
    Gender:
    Male
    Location:
    United States
    Console:
    Xbox
    Excellent Post, Very Helpful

  15. ha

    harej Newbie
    0/47

    Joined:
    May 24, 2010
    Messages:
    24
    Likes Received:
    2
    Trophy Points:
    0
    Console:
    Xbox
    very helpful...great tut

  16. ThaGhost

    ThaGhost Producer/CEO GetMoneyCrewZ Studios Lifetime Gold
    0/47

    Joined:
    Jan 19, 2012
    Messages:
    787
    Likes Received:
    61
    Trophy Points:
    0
    Gender:
    Male
    Location:
    MurdaLand,USA
    Console:
    Xbox
    Ok I trying to install the nand x but wat to cables connect to it from coolrunner to nand x?

  17. ADDZ

    ADDZ ( * Y * ) Lifetime Gold XPG Retired Staff TeamXPG
    595/752

    Joined:
    Dec 12, 2010
    Messages:
    15,936
    Likes Received:
    6,686
    Trophy Points:
    595
    Location:
    Behind you sniffing your hair!
    Console:
    Playstation 4

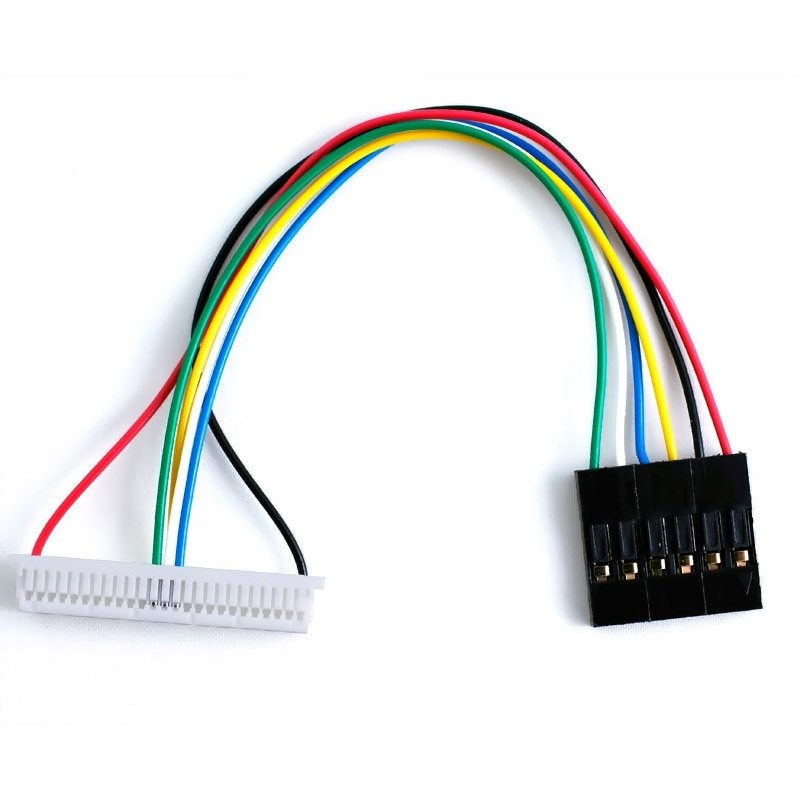

    You need the one that slots in the side, not 100% sure that comes with the Nand-X!!


    [​IMG]

  18. X9Cinema

    X9Cinema Resident GFX Guru Lifetime Gold
    0/47

    Joined:
    Dec 9, 2011
    Messages:
    2,596
    Likes Received:
    476
    Trophy Points:
    0
    Gender:
    Male
    Location:
    US
    Console:
    Xbox
    Why would he flash his coolrunner, it's his nand that needs flashing... :eek:

  19. ADDZ

    ADDZ ( * Y * ) Lifetime Gold XPG Retired Staff TeamXPG
    595/752

    Joined:
    Dec 12, 2010
    Messages:
    15,936
    Likes Received:
    6,686
    Trophy Points:
    595
    Location:
    Behind you sniffing your hair!
    Console:
    Playstation 4
    WHAT?!

    You need to flash the right timing setting to the coolrunner 1st!

  20. ThaGhost

    ThaGhost Producer/CEO GetMoneyCrewZ Studios Lifetime Gold
    0/47

    Joined:
    Jan 19, 2012
    Messages:
    787
    Likes Received:
    61
    Trophy Points:
    0
    Gender:
    Male
    Location:
    MurdaLand,USA
    Console:
    Xbox
    Cool runner already set up and installed I got nand x soldered but wat cords run to where from cool runner to nand x?
