    /! \ Myself and Logic-sunrise.com accept any liability in case of bad handling of your hand when removing your console. /! \

    I also want to say that to disassemble your XBOX ONE will blow the guarantee thereof

    II. Prerequisites:

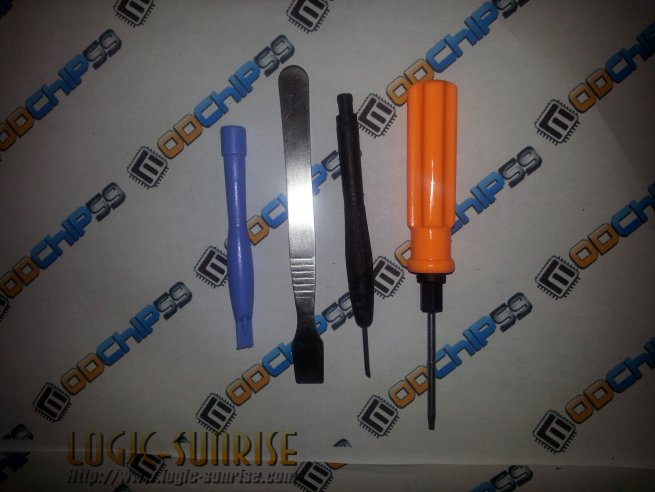

    - Torx T8
    - Tool de-clips (eg the iphone)
    - Scraper BGA to de-clip
    - Turn screw small dish (the sharpest possible)

    III. instructions:

    For starters, small score on what we need:

    [​IMG]

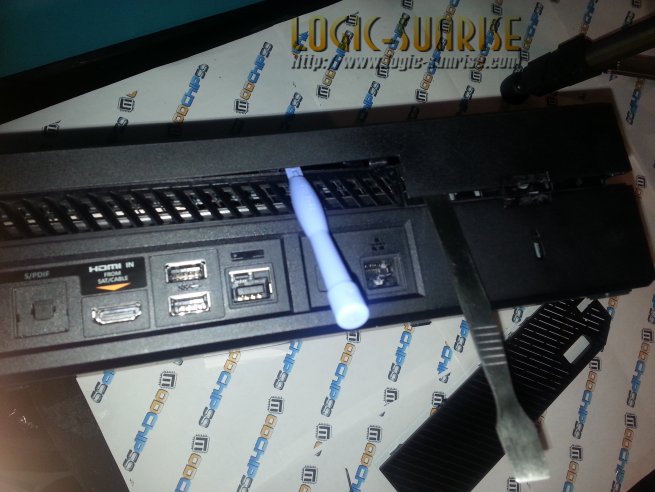

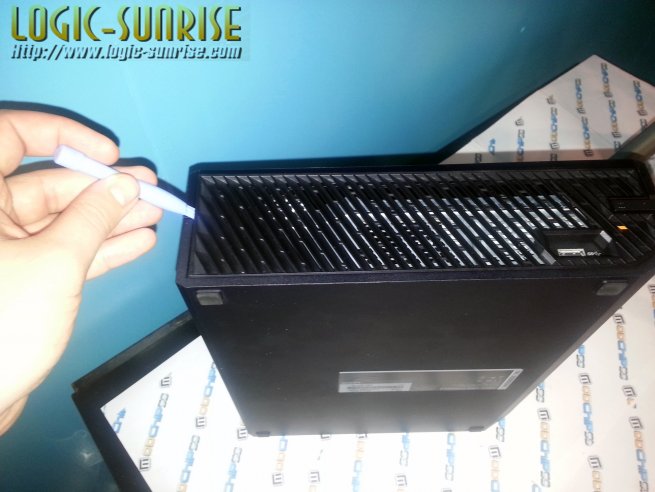

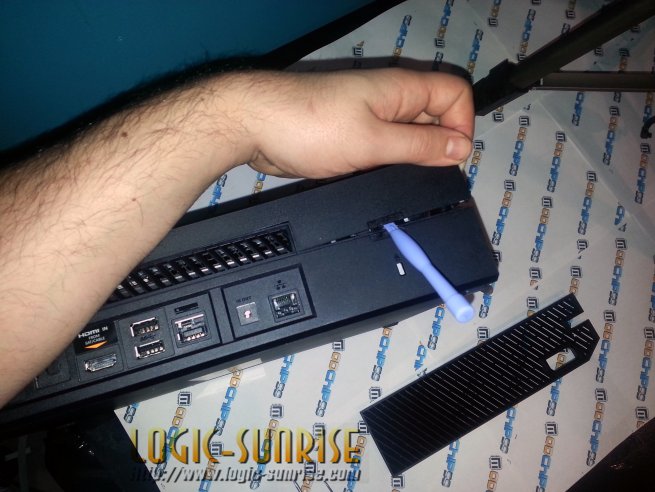

    The 1st step will happen on the left side, putting himself in the face with the tool de-plastic clips gently peel off the plastic cage from the left side, then once loosened, pull it toward you, it should come alone.

    [​IMG]

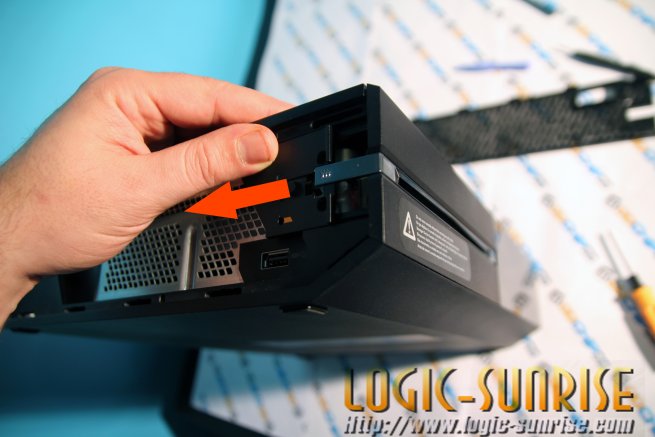

    Remove the plastic piece that holds the Eject button.
    [​IMG]

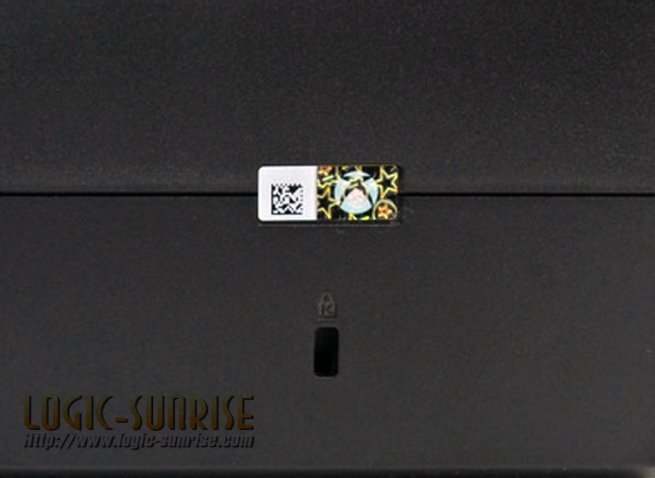

    Then remove the stickers warranty:

    [​IMG]

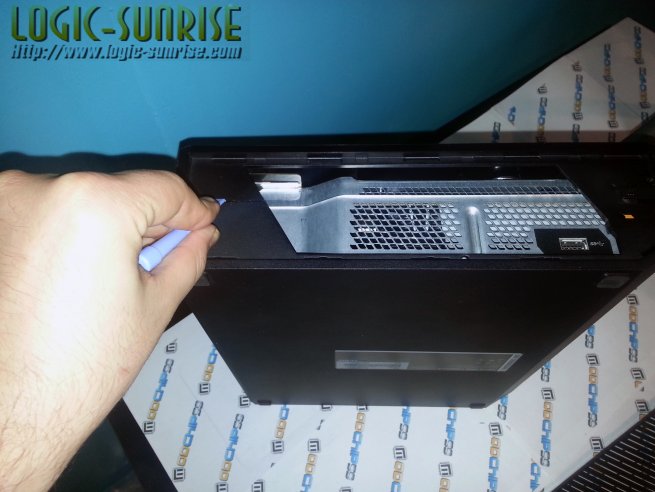

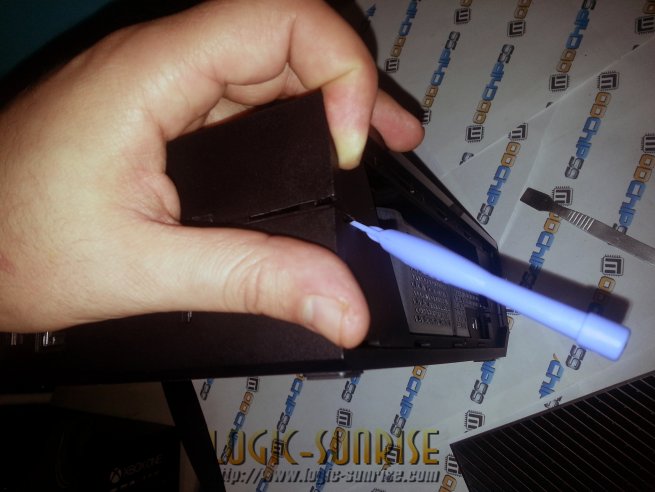

    Once that is done, you have to alternate between the plastic tool de-clips and scraper BGA, to separate the two parts of the shell, little by little, starting from one side to the other.
    Warning, do not use force to spread if nothing is de-clipped.

    [​IMG]


    [​IMG]

    [​IMG]

    [​IMG]

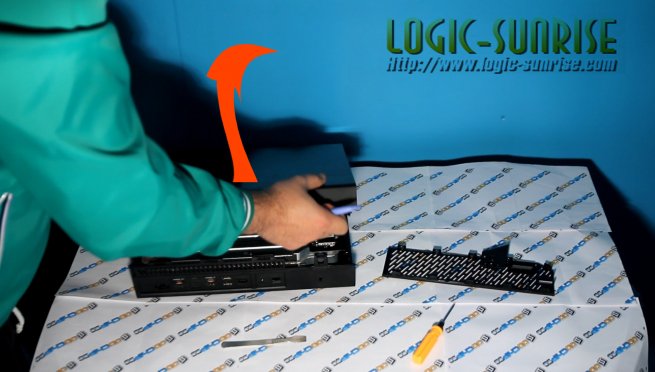

    Once you have toured all die-attach, it now suffices to note the upper part up, then forwards to separate it from the bottom of the hull.

    [​IMG]

    [​IMG]

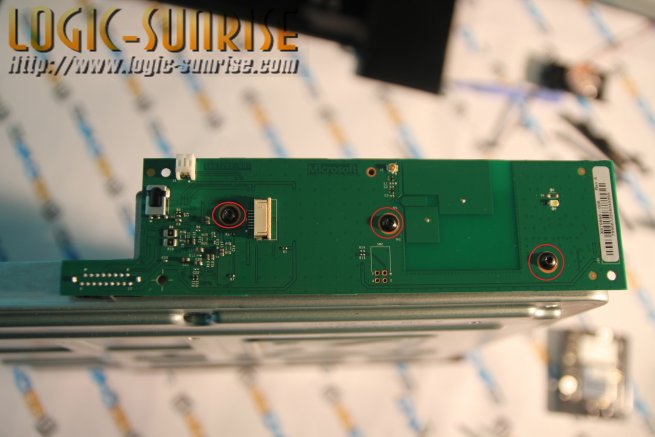

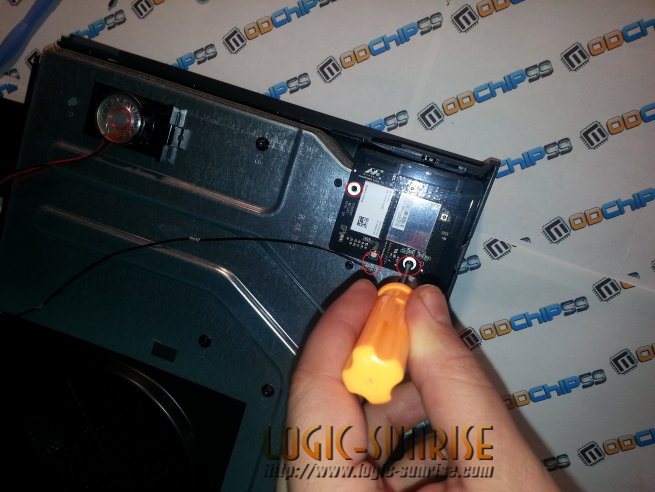

    Then, with the T8 screwdriver unscrew the black screws that hold the wireless module, and disconnect the small black wire by pulling gently.
    [​IMG]

    Once the screws removed, you can unplug the unit by pulling it toward you.
    Now you can continue to unscrew the screws that hold the metal upper receiver.
    Once finished, take thence you, below you will find the wireless module connector that simply disconnect power to completely detach from the rest of the carcass console
    [​IMG]

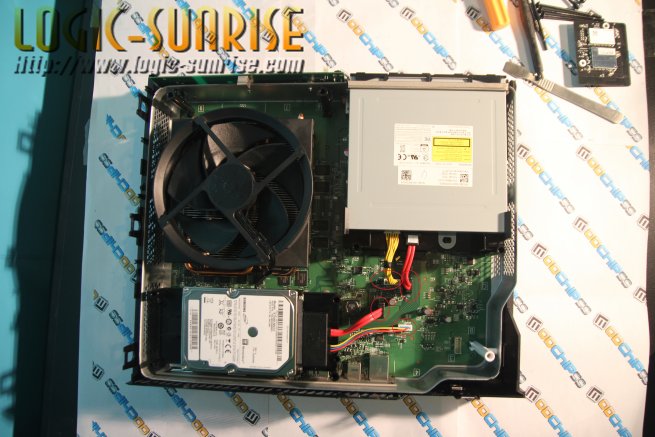

    Once the casing is removed, you will have the access to the inside of the console, so you can unplug the connectors quietly drive and HDD.

    [​IMG]

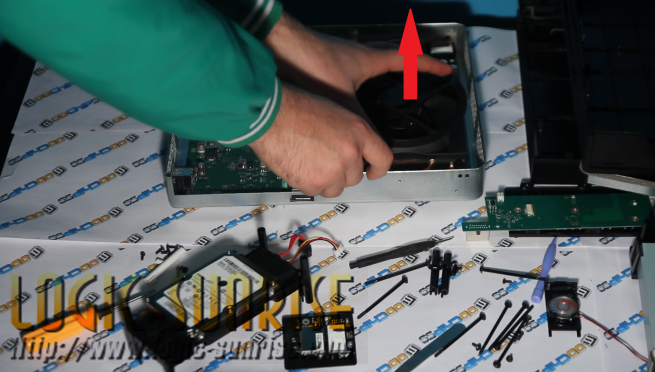

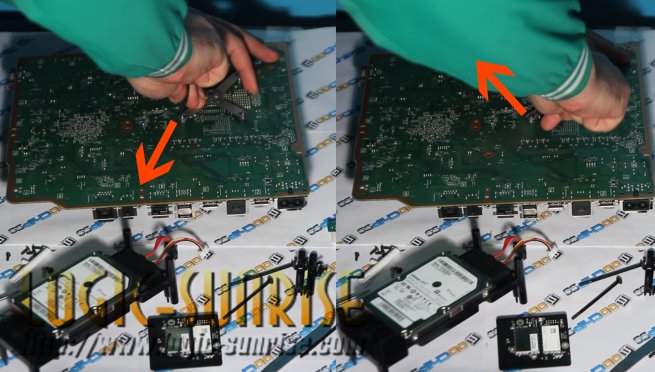

    Separate the metal cage containing the motherboard of the lower portion of the plastic hull.
    back there and unscrew the screws holding the motherboard with the T8.

    [​IMG]


    Unscrew also those of the facade module, so you can remove it.
    [​IMG]

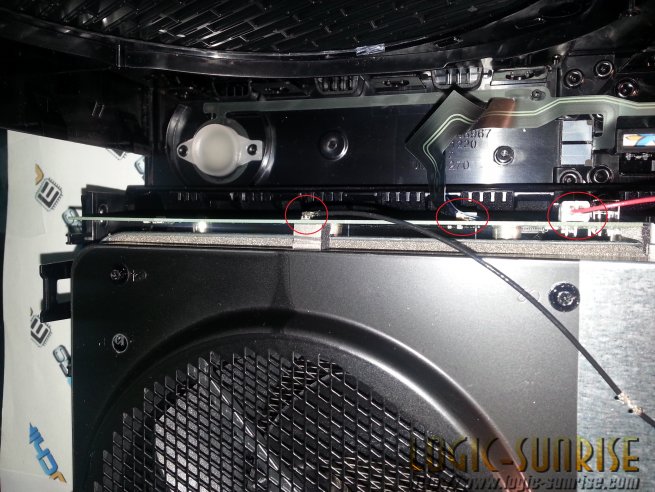

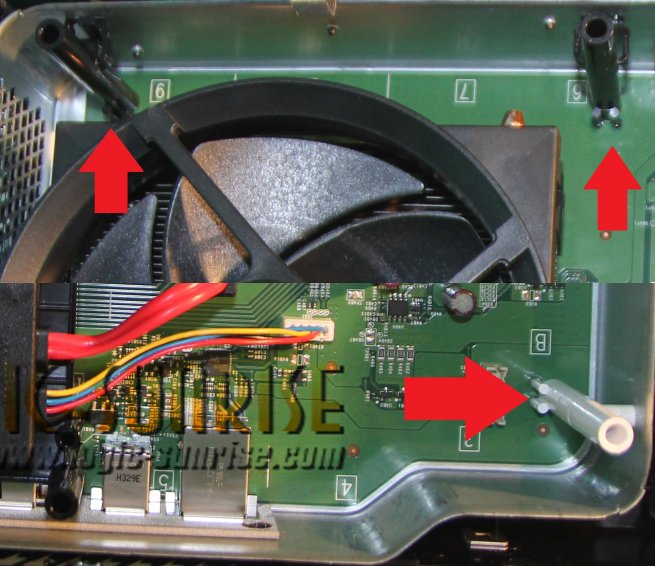

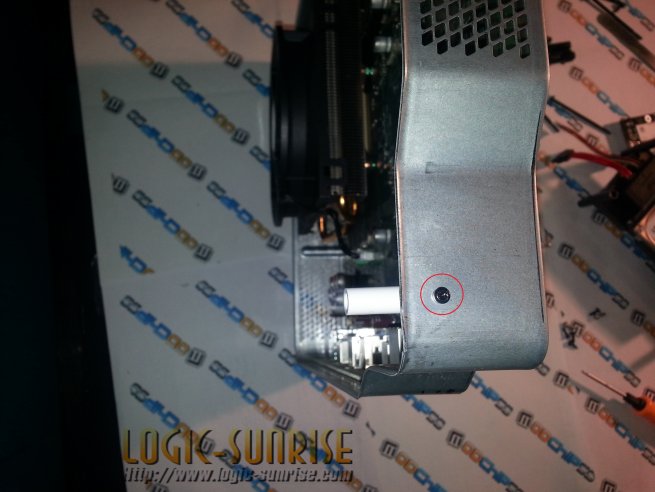

    Remember that little black screws on the side
    [​IMG]

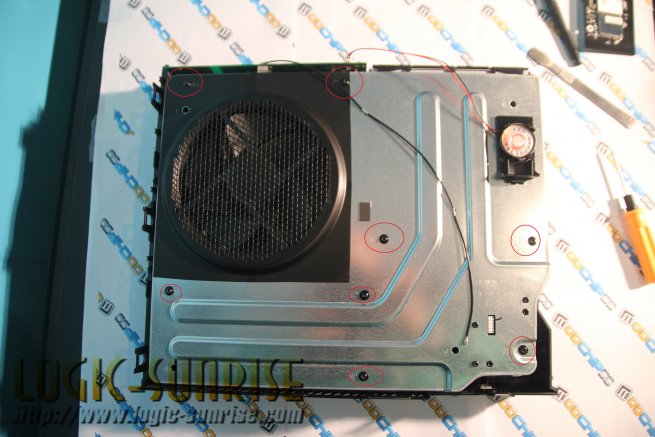

    Remove these screws nuclei.
    [​IMG]

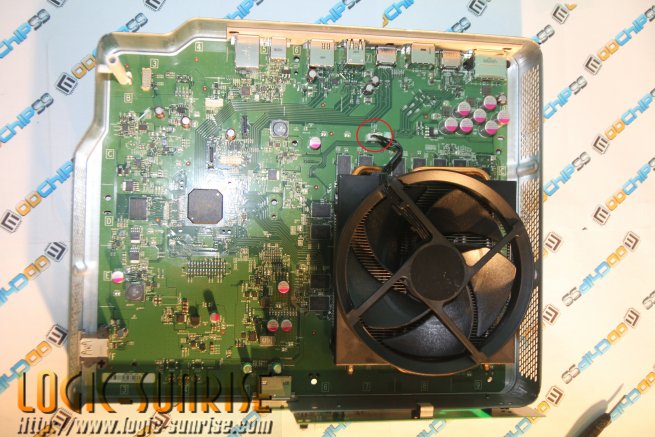

    Disconnect the fan connector, and remove the motherboard from its cage.
    [​IMG]

    [​IMG]

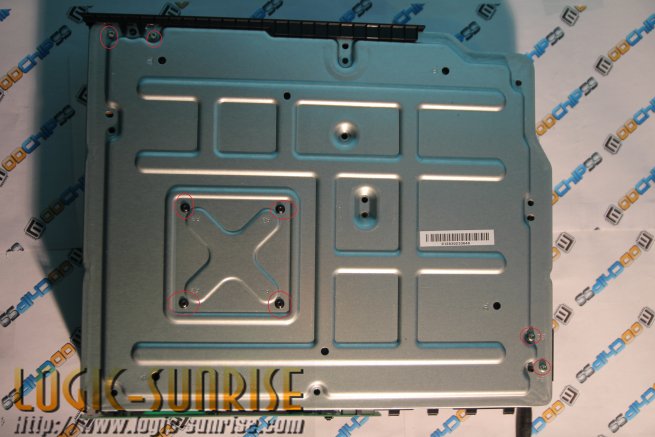

    Now remove the metal cross that holds the radiator, with the same method for the xbox 360, ie use a flat screwdriver as small as possible, and the sharpest possible, be careful if you do not have the proper tool, not force, you may touch the motherboard, and butcher neighboring tracks if you drag.
    To take off each side, proceed as follows: insert your screwdriver in position as shown in the photo, and make a motion separation while pushing the tool inward.

    [​IMG]

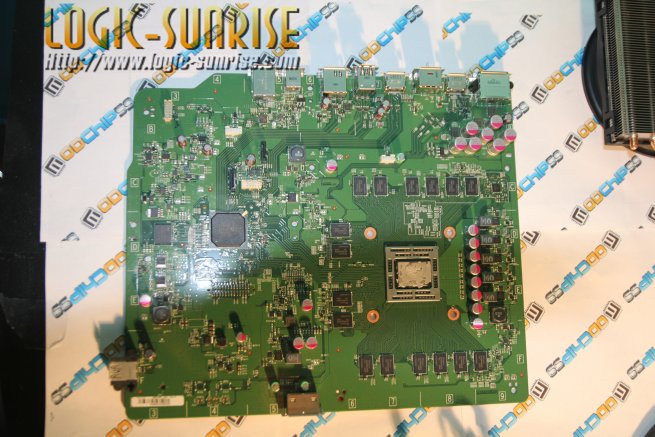

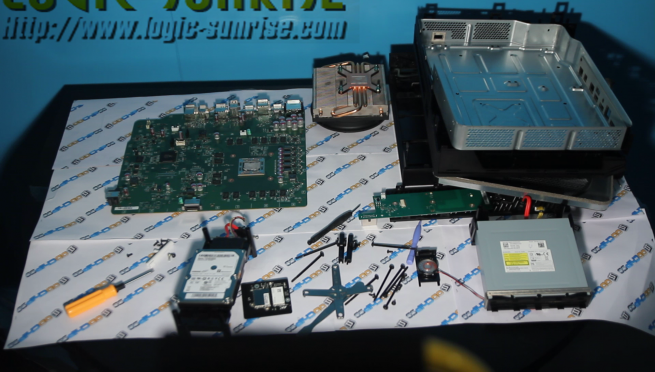

    And now, now you just have to remove the radiator, and the motherboard is up to you.
    [​IMG]
    [​IMG]
