[Tutorial] RT3ME Your first XRPC tool - Part 4

begallegal1 Dec 8, 2013

  1. begallegal1

    begallegal1 Medicine Man Lifetime Gold TeamXPG
    0/47

    Joined:
    Oct 31, 2011
    Messages:
    3,694
    Likes Received:
    3,124
    Trophy Points:
    0
    Gender:
    Male
    Location:
    In a Field of Green
    Console:
    Xbox

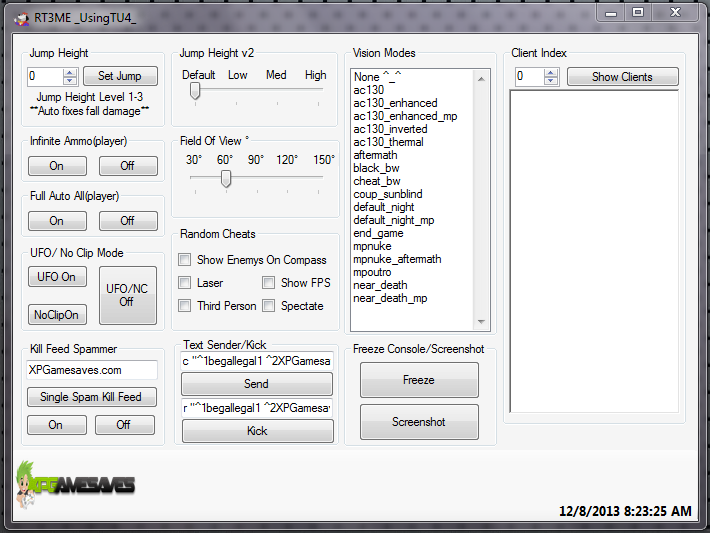

    Hello again all and welcome to part 4 ,please keep in mind I am still using TU4. Here is what my tool looks like after adding everything we will cover today
    [​IMG]
    http://www.youtube.com/watch?v=qS3T3KWGELI

    Today we are going to start off creating a class to store our offsets (optional). As I start to see my offsets pile up putting them in their own class with their own names only seemed the logical thing to do

    add a new class to your solution, something like "Offsets.cs",here is about the simplest setup, all public so we can use it anywhere


    using System;
    namespace RT3ME
    {
    public class Offsets
    {
    public UInt32 player = 0x8328A880;
    public UInt32 plaPri = 0x8328AD54;
    public UInt32 plaSec = 0x8328AD60;
    public UInt32 plaP1 = 0x8328AD3C;
    public UInt32 plaP2 = 0x8328AD48;
    public UInt32 SV_Send = 0x824B9AB0;
    public UInt32 fAutoAll = 0x82231614;
    public UInt32 supJmp = 0x820152A8;
    public UInt32 fallDMg = 0x8201B50C;
    public UInt32 gamTag = 0x8328D81C;
    }
    }


    ok so now we can use these new names in our cheats instead of the offset #'s which can get very confusing.
    Example:


    //near the top of our form code page we create an instance of our offset class,
    // similar to our XRPC instance, but this one has to be static or you will get an error
    public static Offsets of = new Offsets();
    //now we use our instance followed by our offsets name instead of eye blurring numbers LOL
    x.SetMemory(of.fAutoAll, new byte[] { 0x3b, 0x40, 0x00, 0x00 });


    one more optional thing, if you'd like to integrate my "ghosts sound player" into this project , grab it from here
    http://www.xpgamesaves.com/topic/92664-tu4-xrpc-cod-ghosts-sound-player/

    So now lets re-create our jump height cheat using another winform tool called "trackbar".
    we want ours to have a total value of 3 (0-3 so really its 4 default 0,low 1, med 2, high 3)
    I have also added a label to mine to show this.
    [​IMG]
    so then we can use the same code from our numeric up/down box here just altering it a bit, we will use the switch setup


    //Fix fall damage
    x.SetMemory(of.fallDMg, new byte[] { 0x4F, 0xFF, 0x00, 0x00 });
    //jVal is our variable used to "switch" based on our trackbars value
    int jVal = trackBar1.Value;
    switch (jVal)
    { //default
    case :shocked:
    x.SetMemory(0x820152A8, new byte[] { 0x42, 0x1c, 0x00, 0x00 });
    break;
    //Low
    case 1:
    x.SetMemory(0x820152A8, new byte[] { 0x43, 0xFF, 0x00, 0x00 });
    break;
    //Med
    case 2:
    x.SetMemory(0x820152A8, new byte[] { 0x45, 0xFF, 0x00, 0x00 });
    break;
    //High
    case 3:
    x.SetMemory(0x820152A8, new byte[] { 0x48, 0xFF, 0x00, 0x00 });
    break;
    }



    Now lets get into the fun stuff :D
    I don't know much about this since as I have said I am not a COD player, but I will show what I know so far!
    lets start by adding another trackbar to our project, we will use this for our "field of view"
    this one will have a total value of 4 (0-4 is really 5) because the angles we are going to use are 30,60,90,120,150
    60 is default so we will also set the default value of our trackbar to 1 (0=30,1=60) mine looks like this
    [​IMG]

    now here's where things get a bit tricky, we are going to start using the SV_GameSendServerCommand offset to send various commands
    including dvar commands like this one,, we use the same switch setup as we did for our new jump height with our offset and command added



    //switch based on trackbar value
    int FOV = trackBar2.Value;
    switch (FOV)
    { //30 deg
    case :shocked:
    //we call SV_send and use "q" to poke dvar #13 to value 30
    x.Call(of.SV_Send, 0, 0, "q 13 30");
    break;
    //60 deg(default)
    case 1:
    //we call SV_send and use "q" to poke dvar #13 to value 60
    x.Call(of.SV_Send, 0, 0, "q 13 60");
    break;
    //rinse and repeate for all angle values
    case 2:
    x.Call(of.SV_Send, 0, 0, "q 13 90");
    break;
    case 3:
    x.Call(of.SV_Send, 0, 0, "q 13 120");
    break;
    case 4:
    x.Call(of.SV_Send, 0, 0, "q 13 150");
    break;
    }


    Now lets add some checkboxes for a change of pace instead of an on and off button set. Here's mine
    [​IMG]

    first lets do "always show enemys on compass"



    if (showEnemyOnCompass.Checked == true)
    {
    //again call the SV and dvar #1 to a value of 1 for on
    x.Call(of.SV_Send, 0, 0, "q 1 1");
    }
    if (showEnemyOnCompass.Checked == false)
    {
    //again call the SV and dvar #1 to a value of 0 for off
    x.Call(of.SV_Send, 0, 0, "q 1 0");
    }


    third person



    if (thirdPerson.Checked == true)
    {
    //again call the SV and dvar #2 to a value of 1 for on
    x.Call(of.SV_Send, 0, 0, "q 2 1");
    }
    if (thirdPerson.Checked == false)
    {
    //again call the SV and dvar #2 to a value of 0 for off
    x.Call(of.SV_Send, 0, 0, "q 2 0");
    }


    the next 2 are not SV calls but we will use our player/ client index on these instead of the exact offset location

    Laser



    if (laser.Checked == true)
    {
    // @ our player plus 0x124 set the value to turn laser on
    x.SetMemory(PlayerState(Convert.ToUInt32(cliNumber.Value)) + 0x124, new byte[] { 0x00, 0x01, 0x00, 0x00 });
    }
    if (laser.Checked == false)
    {
    // @ our player plus 0x124 set the value to turn laser off
    x.SetMemory(PlayerState(Convert.ToUInt32(cliNumber.Value)) + 0x124, new byte[] { 0x00, 0x00, 0x00, 0x00 });
    }


    Spectate



    if (spectate.Checked == true)
    {
    // @ our player plus 0x10 set the value to turn spectate on
    x.SetMemory(PlayerState(Convert.ToUInt32(cliNumber.Value)) + 0x10, new byte[] { 0x00, 0x00, 0x20, 0x00 });
    }
    if (spectate.Checked == false)
    {
    // @ our player plus 0x10 set the value to turn spectate off
    x.SetMemory(PlayerState(Convert.ToUInt32(cliNumber.Value)) + 0x10, new byte[] { 0x00, 0x00, 0x00, 0x00 });
    }


    and finally FPS on screen, this can be a good staring point for a mod menu ;)



    if (fPS.Checked == true)
    {
    //set value to turn on FPS text
    x.SetMemory(0x8251DC34, new byte[] { 0x40, 0x9a, 0x00, 0x8c });
    }
    if (fPS.Checked == false)
    {
    //set value to turn off FPS text
    x.SetMemory(0x8251DC34, new byte[] { 0x41, 0x9a, 0x00, 0x8c });
    }


    Well now I seem to have an empty space in my tool so lets add one more thing quick, it will use text commands with our SV offset

    add a couple text boxes and a couple buttons ,,here's mine
    [​IMG]

    this can use any of the following color codes by number(may be more not sure)
    ^0 - Black
    ^1 - Red
    ^2 - Green
    ^3 - Yellow
    ^4 - Blue
    ^5 - Cyan
    ^6 - Purple
    ^7 - Default

    for the text sender we use "c" in our text line


    x.Call(of.SV_Send, 0, 0, sendBox.Text);
    //an example of something using colors to send to a client
    // c "^1begallegal1 ^2XPGamesaves.com"


    for the "kick with error" we use "r"


    x.Call(of.SV_Send, 0, 0, kickBox.Text);
    //an example of something using colors give error when kicking from game
    // r "^1begallegal1 ^2XPGamesaves.com"


    enjoy and happy coding
    :begal:

    • Like Like x 4
  2. KillerVidz

    KillerVidz Rocky BANNED
    0/47

    Joined:
    Feb 20, 2012
    Messages:
    3,312
    Likes Received:
    1,277
    Trophy Points:
    0
    Gender:
    Male
    Location:
    XPG-UK
    Console:
    Xbox One
    Yeyy :D Cheers dude ill be busy now

  3. Mectrikz

    Mectrikz Banned BANNED
    0/47

    Joined:
    Nov 15, 2013
    Messages:
    674
    Likes Received:
    25
    Trophy Points:
    0
    Gender:
    Male
    Console:
    Xbox
    Cheers

  4. Bu

    Bullet Guest

    Another very clear tutorial Begal, good job mate ;)

    • Like Like x 2
  5. KillerVidz

    KillerVidz Rocky BANNED
    0/47

    Joined:
    Feb 20, 2012
    Messages:
    3,312
    Likes Received:
    1,277
    Trophy Points:
    0
    Gender:
    Male
    Location:
    XPG-UK
    Console:
    Xbox One
    I know right ;) :p

  6. Heistful

    Heistful Banned (Read The Rules) BANNED
    0/47

    Joined:
    Nov 8, 2013
    Messages:
    131
    Likes Received:
    22
    Trophy Points:
    0
    Console:
    Xbox
    You actually made the tool really good with the default form, nice work bro!

  7. CRACKbomber

    CRACKbomber Resident Xbox Guru XPG Developer
    25/47

    Joined:
    Sep 12, 2011
    Messages:
    276
    Likes Received:
    235
    Trophy Points:
    25
    Gender:
    Male
    Location:
    Michigan
    Console:
    Xbox
    Not to sound like a know it all, but iirc, FOV values for arbitrary and don't really have any unit. Never the less, excellent tutorial series begal :)

  8. De

    DellBoy Veni Vidi Vici Lifetime Gold
    235/282

    Joined:
    May 5, 2012
    Messages:
    4,228
    Likes Received:
    2,565
    Trophy Points:
    235
    Location:
    Under Your Bed
    Console:
    Xbox
    A great tut like this on how to dump/find/extract the offsets would be great would go great with this as this is as long as you already know all of the offsets, great work mate ;)

  9. fl

    flareanon Newbie
    0/47

    Joined:
    Jan 8, 2014
    Messages:
    7
    Likes Received:
    2
    Trophy Points:
    0
    Gender:
    Male
    Console:
    Xbox
    the gt changer was in the tut :(, but other then that great tut
