    How to Dump Memory with Simple Dump ++
    [​IMG]

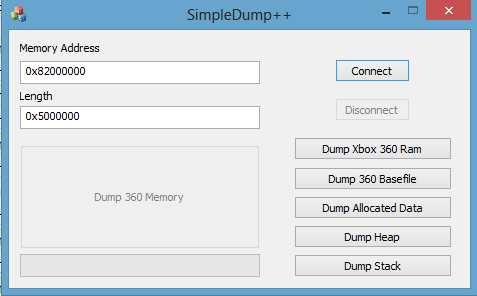

    SimpleDump ++ is a great tool created by Mojobojo to dump Xbox 360 memory ranges.​
    For Simpledump ++ to connect to your Xbox 360 its needs to be modified to run homebrew plugin xbdm or a RGLoader Dev image on it. You also need to have Xbox SDK installed on your PC. And your XBox 360 set to default in Neighborhood.​
    [​IMG]

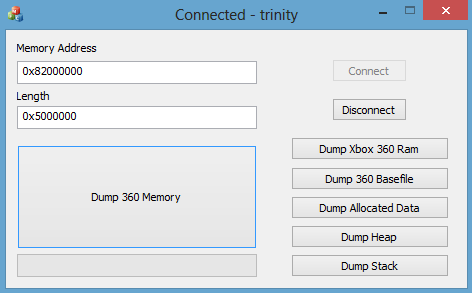

    Once you have all these basics done run SimpleDump++ and hit the Connect Button.​
    Once connected you can select one of the memory range tabs.​
    [​IMG]
    Xbox 360s Memory Regions
    0x30000000 is the Heap Memory Region
    0x40000000 is Allocated Data Memory Region
    0x70000000 is the Stack Memory Region
    0x82000000 is Basefiles Memory Region
    0xC0000000 – 0xDFFFFFFF is the Full 512mb Ram Memory Region


    Which Region do I DUMP when i am searching????? TRY THEM ALL
    Each game is developed differently and offsets are stored in different memory regions.
    Full 512MB Ram Dump takes the longest.


    Once you have chosen your memory region you wish to dump hit the "Dump 360 Memory Region"
    Now a new window will pop up allowing you to select where to save and name your dump.
    For the purpose of searching for offset for trainer making name the dump something similar to what your searching for.

    Example: Looking for ammo??
    Dump a region, save as BaseAmmo21
    [​IMG]
    WHY?? BASEAMMO21
    Base is because we dumped in Base range and will help you to remember what Memory Address range to peek/poke at once you find what your looking for.
    Ammo because we are looking for ammo.
    21 because that's current ammo amount.
    You can name it whatever you like but that's how I do it to have my dumps organized and easy to search in Artmoney or whatever search tool you use.
    After the dump is complete shoot your weapon and dump the same region again. This time name it something like BaseAmmo20, and repeat this until you have enough dumps to be able to find your Ammo offset with Artmoney or whatever search tool you use.

    • Like Like x 7
  2. ma

    matthewjohn Banned BANNED
    0/47

    Joined:
    Nov 16, 2013
    Messages:
    19
    Likes Received:
    5
    Trophy Points:
    0
    i went throu all them regions and still didint find wot i was looking for

  3. ma

    mattboii88 Newbie
    0/47

    Joined:
    Apr 5, 2013
    Messages:
    4
    Likes Received:
    7
    Trophy Points:
    0
    Console:
    Playstation 3

  4. Antraz253

    Antraz253 Newbie
    0/47

    Joined:
    Oct 8, 2014
    Messages:
    150
    Likes Received:
    23
    Trophy Points:
    0
    Console:
    Xbox
    Download link?

  5. dc

    dcfreeman Rookie
    15/47

    Joined:
    Feb 27, 2013
    Messages:
    35
    Likes Received:
    0
    Trophy Points:
    15
    Console:
    Xbox
    help. download link please.

  6. Minecraft

    Minecraft Newbie
    0/47

    Joined:
    May 15, 2012
    Messages:
    64
    Likes Received:
    13
    Trophy Points:
    0
    Gender:
    Male
    Location:
    America
    Console:
    Xbox
    anyone have a download link
