New to Drive Flashing need help

daniyal Jan 14, 2014

  1. daniyal

    daniyal The Deathbringer of COD
    0/47

    Joined:
    May 19, 2012
    Messages:
    969
    Likes Received:
    47
    Trophy Points:
    45
    Gender:
    Male
    Occupation:
    Student
    Location:
    Toronto, Canada
    Console:
    Playstation 4
    So i finally decided to flash my drive i wanted to know the exact tools im going to need to do it i have never opened my Xbox but im pretty sure its a Trinity Slim how ever i want to keep the cost as low as possible.


    Would kindly appreciate it.

    Thanks!

    • Like Like x 1
  2. Shadow

    Shadow Watchers Staff Member XPG Moderator
    430/564

    Joined:
    Mar 9, 2011
    Messages:
    9,013
    Likes Received:
    1,420
    Trophy Points:
    430
    Gender:
    Male
    Location:
    Floating in Space having a beer with the guy who d
    Console:
    Xbox One
    Same here but it's too much 4 me so am just going to send it to someone to do it for me.

  3. AD

    ADDZ Guest

    Depending on the DVD Drive in your slim you will need:

    Opening is a torx 10 and persuasion flat head screwdriver for me but there are kits.

    CK3 Pro
    USB Pro
    Drill and template
    Chip
    Unlock probe
    Solder kit
    PCB
    Coolrunner
    Nand-x

    DG-16D4S is the easier one but there are 2 versions with different methods
    [​IMG]


    DG-16D5S needs RGH to get the drive key



    ...all in all if you're not going to flash more than one I'd get someone else to do it for you

  4. Renegade

    Renegade Super Special Awesome XPG Developer
    105/188

    Joined:
    Nov 19, 2009
    Messages:
    1,212
    Likes Received:
    894
    Trophy Points:
    105
    Gender:
    Male
    Location:
    United Kingdom
    Console:
    Xbox
    The template is not always reliable ADDZ. as each chip can be just a little bit away from the pins.

    You're better off zooming in with a high quality camera or a microscope and taking a picture of the pins under the eproxy and then count 5 from the right from the top and then 4 pins down the side of the right of the chip, then just mark yourself a point to drill.

    Use 0.8,mm drill bits as they won't make a hole in the chip too big.

    Depending on the drive revision, whether it's DG-16D4S or DG-16D5S

    you will need extra hardware as listed above.

    DG-16D4S:

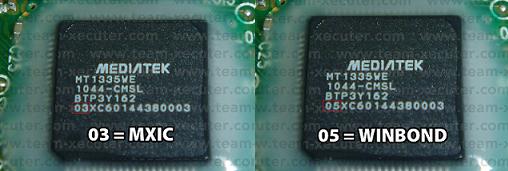

    Sputnik Unlock Probe if MXIC chip
    CK3 Pro or a USB Pro
    and some brains.

    Alternatively as listed above, you can always buy an unlocked PCB which will probably be cheaper that messing up a Kamikazi or Sputnuk unlock. They are not easy tasks for beginners.

    If it's a DG-16D5S

    There is no way for simple here, you will need to RGH the console to retrieve the DVD key and then get a hold of an unlocked PCB.
    Some Trinity consoles DID have the DG-16D5S, so make sure you take a look at the sticker on the DVD drive and tell us exactly what it is.

    • Like Like x 1
  5. AD

    ADDZ Guest

    Very true but I've never got unlucky yet and always have a spare.

  6. Renegade

    Renegade Super Special Awesome XPG Developer
    105/188

    Joined:
    Nov 19, 2009
    Messages:
    1,212
    Likes Received:
    894
    Trophy Points:
    105
    Gender:
    Male
    Location:
    United Kingdom
    Console:
    Xbox
    Let's hope your streak stays that way lol

  7. AD

    ADDZ Guest

    It's over 20 out of over 20 so fingers crossed :p

  8. daniyal

    daniyal The Deathbringer of COD
    45/47

    Joined:
    May 19, 2012
    Messages:
    969
    Likes Received:
    47
    Trophy Points:
    45
    Gender:
    Male
    Occupation:
    Student
    Location:
    Toronto, Canada
    Console:
    Playstation 4
    Thing is the charge triple the amount here and they are unrealible also i only want to be able to play burnt games i was going through a tutorial all he did was use a X360USB Pro v1 powered by his Xbox and he used jungle flasher to flash the drive shouldnt that be enough?

  9. Renegade

    Renegade Super Special Awesome XPG Developer
    105/188

    Joined:
    Nov 19, 2009
    Messages:
    1,212
    Likes Received:
    894
    Trophy Points:
    105
    Gender:
    Male
    Location:
    United Kingdom
    Console:
    Xbox
    Powering the drive with the xbox is dangerous and will most likely flag you for ban immediately, unless you are planning to play offline offline permanently of course.

    If it's a Slim drive there is no way he managed to flash it like that. Either he had already replaced the PCB with an unlocked one or unlocked that PCB.

  10. daniyal

    daniyal The Deathbringer of COD
    45/47

    Joined:
    May 19, 2012
    Messages:
    969
    Likes Received:
    47
    Trophy Points:
    45
    Gender:
    Male
    Occupation:
    Student
    Location:
    Toronto, Canada
    Console:
    Playstation 4
    it was a slim im not sure how he managed that and yes i will be offline permanently would that method work on any phat?

  11. daniyal

    daniyal The Deathbringer of COD
    45/47

    Joined:
    May 19, 2012
    Messages:
    969
    Likes Received:
    47
    Trophy Points:
    45
    Gender:
    Male
    Occupation:
    Student
    Location:
    Toronto, Canada
    Console:
    Playstation 4
    BUMP

  12. daniyal

    daniyal The Deathbringer of COD
    45/47

    Joined:
    May 19, 2012
    Messages:
    969
    Likes Received:
    47
    Trophy Points:
    45
    Gender:
    Male
    Occupation:
    Student
    Location:
    Toronto, Canada
    Console:
    Playstation 4
    bump

  13. scunnyemce

    scunnyemce Loading ......... Lifetime Gold
    75/94

    Joined:
    Jun 6, 2012
    Messages:
    836
    Likes Received:
    103
    Trophy Points:
    75
    Gender:
    Male
    Location:
    Scunthorpe
    Console:
    Xbox
    buy a cheap phat console easier to do and cheaper

  14. daniyal

    daniyal The Deathbringer of COD
    45/47

    Joined:
    May 19, 2012
    Messages:
    969
    Likes Received:
    47
    Trophy Points:
    45
    Gender:
    Male
    Occupation:
    Student
    Location:
    Toronto, Canada
    Console:
    Playstation 4
    i dont know about that my father will get angry just tell me the easiest way

  15. Db

    Dblock150 Newbie
    0/47

    Joined:
    Mar 14, 2011
    Messages:
    98
    Likes Received:
    2
    Trophy Points:
    0
    Console:
    Xbox
    There's no easy way. Renegade explain to you already. Youtube- how to open xbox 360 slim.
