Make PMT Cable For CK3 Probe 2

Holliday Jul 29, 2012

  1. Ho

    Holliday Newbie
    0/47

    Joined:
    Jul 9, 2012
    Messages:
    121
    Likes Received:
    15
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Kentucky
    Console:
    Xbox
    So figured I'd put some of my knowledge on here. I made my CK3 Probe V2 work with all PHAT Liteon drives with no trace cuts.

    What you will need:
    Wire
    2 Prong Switch
    Solder
    Soldering iron
    Electrical Tape
    This Tut ;)

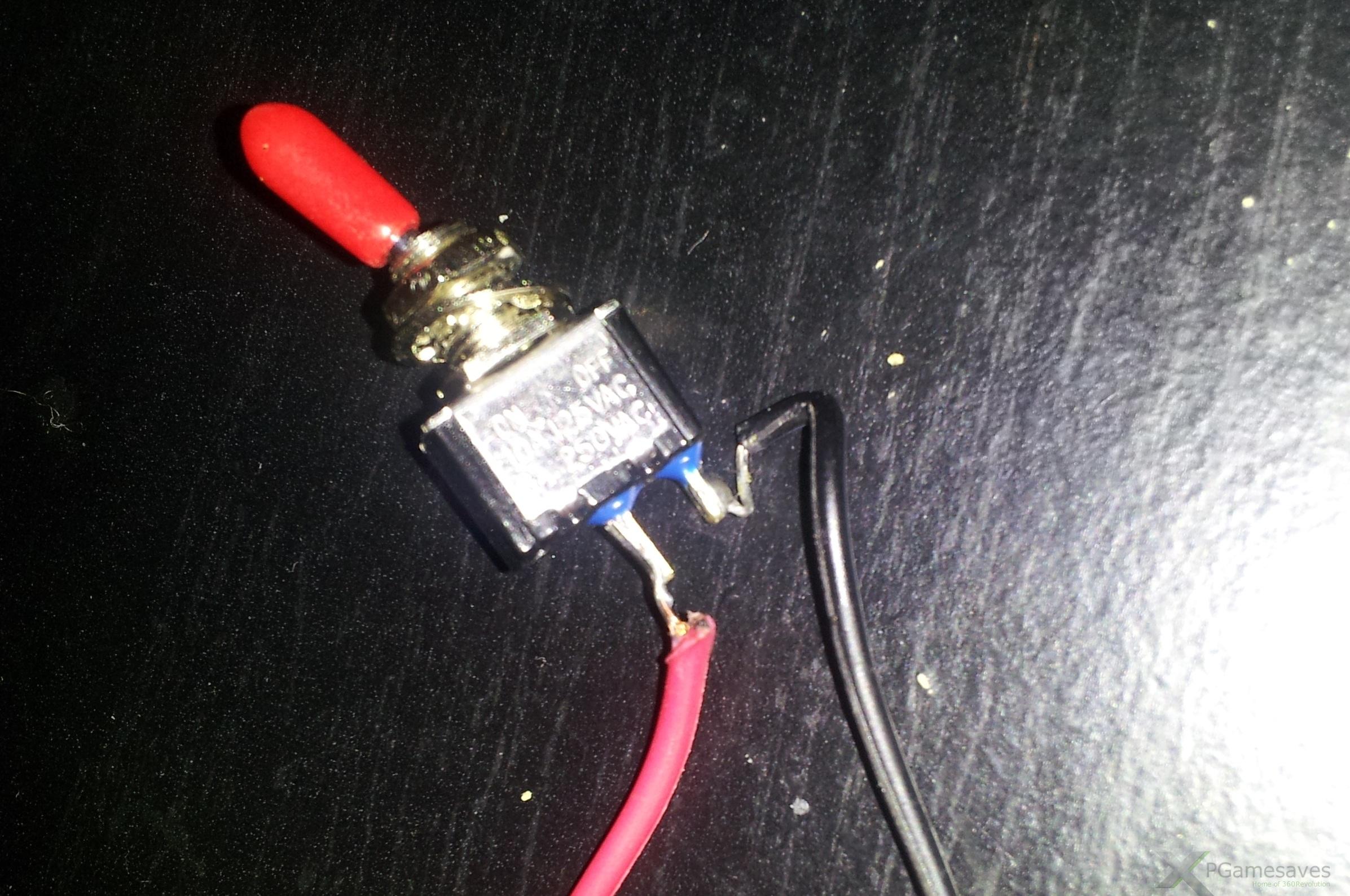

    So first you need to cut your wire in two strips about 3 inches long and solder them to your switch
    [​IMG]

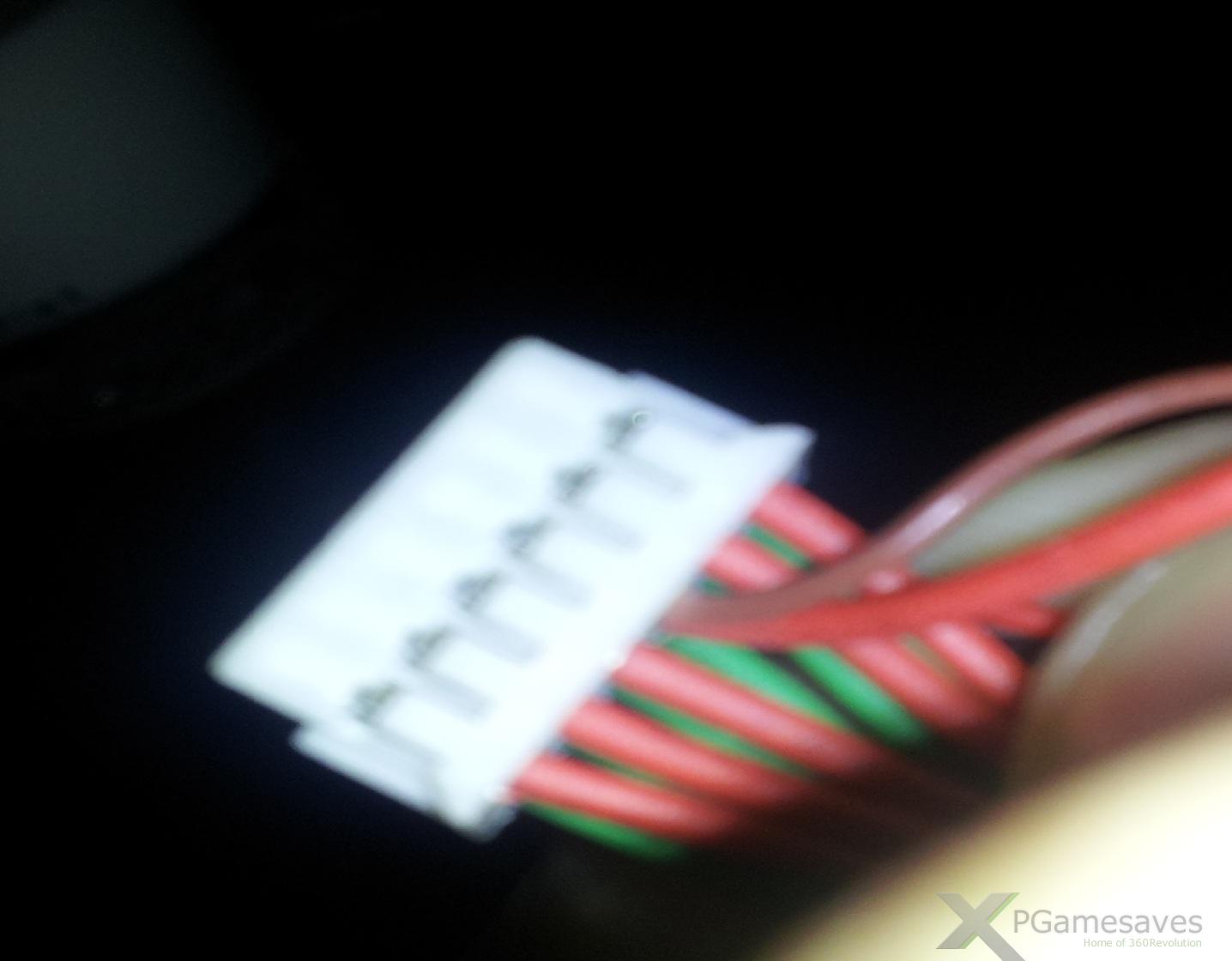

    Now you need to locate your 3.3 volt wire on you dvd power cable.
    [​IMG]


    It is the cable the brown from your probe is connected.
    [​IMG]

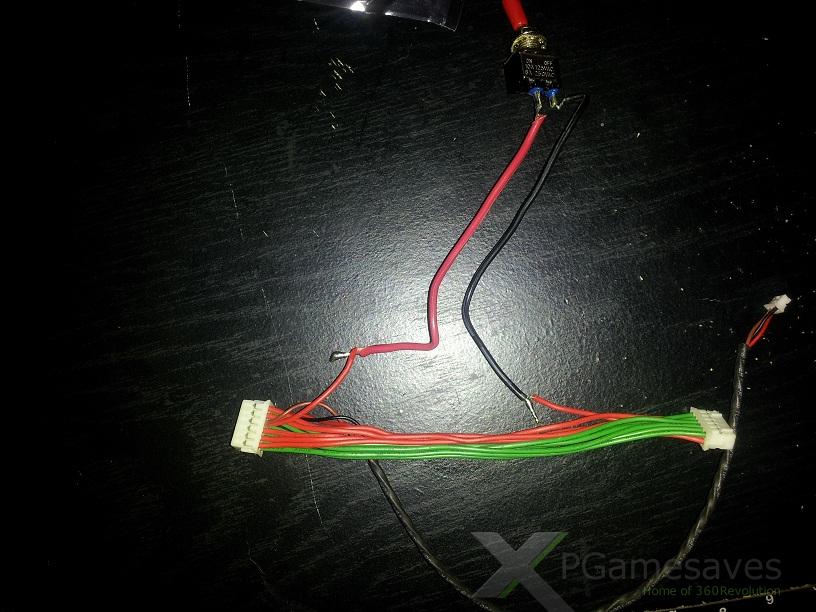

    Now that you have located it you need to cut it right in the middle and solder in your switch.
    [​IMG]

    Now you need to tape it. The more the better.

    Set your probe so that the probe switch is selected, the op switch is out, and use the red mra side to probe MPX01. You have to keep it like this and use it like this. I have been using mine on this set up for a while now with no problems.

    Now you're ready to flash..

    CK3 Main power on. 3.3 volt switch on
    Press phat key
    Click yes
    3.3 volt switch off
    connect probe to MPX01
    3.3 volt switch back
    Wait until extract complete
    Remove probe
    Switch 3.3 volt off
    Then click ok

    Now you have made your probe 2 flash with no trace cuts and never have to.

    Hope this helps and happy flashing ;)
