How To Upgrade Xbox One HDD

Bullet Nov 29, 2013

  1. Bu

    Bullet Guest

    This tutorial will show you how to take apart the Xbox One for the purpose of upgrading the 500GB HDD. Team Xecutor have released a method for upgrading the internal HDD of the Xbox One and I have compiled the information into a full complete guide. Remember that before attempting this it will void the warranty of the Xbox One.

    Things you will need:

    Xbox One ( doy )
    Small plastic prying tool
    T9 Torx screwdriver
    Replacement HDD
    Xbox One HDD Tools


    So lets get started shall we:

    Step 1 :

    Take a small plastic prying tool and gently lift the bottom end grill

    [​IMG]

    Step 2 :

    Using the same pry tool loosen up the clips that hold the top and bottom case together

    [​IMG]


    Step 3 :

    You will need to remove the wifi board

    [​IMG]


    Step 4:

    Detach the small speaker from the chassis with your fingers.
    [​IMG]

    Step 5 :

    There are eight 64 mm T9 Torx screws securing the upper metal shield to the chassis.

    [​IMG]

    Step 6 :

    Once you remove the shield from the chassis you should now be feasting your eyes upon the inner belly of the beast..

    [​IMG]

    Step 7 :

    Finally removing the drive from the mobo

    [​IMG]

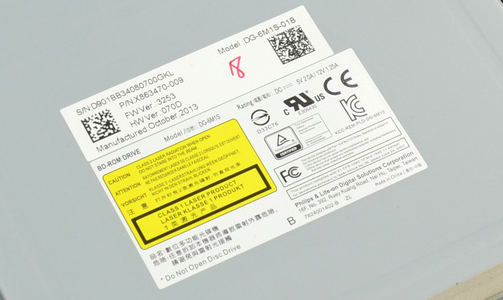

    The drive sticker:

    [​IMG]

    [​IMG]

    Step 8 :

    Remove the standard 2.5 inch SATA II drive.

    [​IMG]




    How To Upgrade Xbox One HDD:


    Xbox One HDD Tools
    https://github.com/juvenal1/xboxonehdd

    CLICK ME FOR DOWNLOAD

    Given any HDD over 500GB in size, you can format it for use with you Microsoft Xbox One console

    Instructions

    All of this must be done as root! I HIGHLY suggest you do this on a livecd or usb booted system if you don't 'know linux' and would rather not wipe the wrong hard drive.

    Connect your HDD and take note of what its called (ex: sda, sdb etc)
    Run the script with the device name as the first parameter
    It will ***** about missing partitions etc, but write a file with commands to create said missing partitions
    Run the created script
    Copy the correct files to the newly created partitions
    Unmount the newly created partitions
    Run the main script again


    Putting it back together

    When you put the new HDD in your console for the first time and boot up, the console will go the the green "Xbox One" screen, pause for a second or two, then shut down. Boot the console again. This time it should pause at the green screen for a while longer, then go to a black screen for even longer. It can take several minutes before anything happens after this, the xbox is automatically creating temporary files during this time. If you copied everything correctly, it WILL go to the dashboard eventually, just be patient!

    What is linux?

    Wait for a windows version

    Required Files
    [​IMG]
    These can be gotten off your original HDD easily



    We are working on a Windows app - maybe integrating with our already established HDD Hacker Tool that was used for the 360 or something standalone. Stay Tuned

    Credits to Team Xecutor


    This post has been promoted to an article
