How to upgrade to Freestyledash 3 threw FTP

sensi420 Sep 23, 2012

  1. sensi420

    sensi420 Contributor TeamXPG
    0/47

    Joined:
    May 20, 2012
    Messages:
    2,535
    Likes Received:
    5,110
    Trophy Points:
    205
    Location:
    In your kitchen drinking your MILK!!!
    Console:
    Xbox
    This tutorial will guide you on how to install the new FSD 3.0
    This tutorial will be based on a XBox with dashlaunch 3.02 installed and FSD already installed previously.
    First Step: Download and extract FSD .3.0 with winrar.

    http://www.mediafire...q1rk4e0e2wx9m34 FSD 3.0

    http://www.win-rar.c...nload.html?&L=0 winrar

    http://www.flashfxp.com/download Flashfxp

    Install Winrar as normal.
    install FlashFxp as normal. or use whatever FTP app you like there are all somewhat the same.

    Double click the Freestyle3Rev58.TeamFSD archive you downloaded and it will open with winrar.
    Inside there we want to highlight the top archive named F3Rev58Release.7z and then Click "Extract to"
    For our guide we will extract to the desktop.

    [​IMG]

    Next we have to extract the F3Rev58Release archive that was in the original archive. This contains what we need for FSD 3.0 to work on the XBox360 Jtag/RGH/RGloader. Highlight and right click the archive and select "Extract to F3Rev58Release" Now you should have a folder named F3Rev58Release on your desktop. Lets rename that to "Freestsyledash 3.0"
    [​IMG]

    Next we are going to Boot up our XBOX 360 that is networked so we can transfer it to our HDD.

    Now you can do this 3 ways
    1:FTP
    2:XBOX neighborhood transfer
    3:USB Transfer

    This guide will be using FTP
    Open up your FTP program and
    Enter in your Xbox IP username = xbox password = xbox

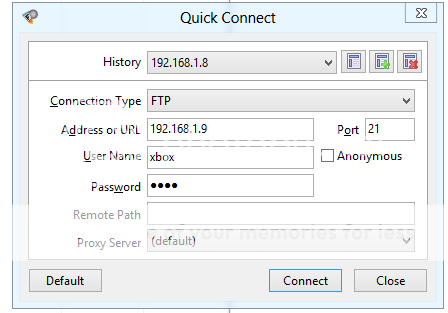

    I use FlashXP so i just hit F8 and it opens up Quick connect and enter in my info.
    [​IMG]

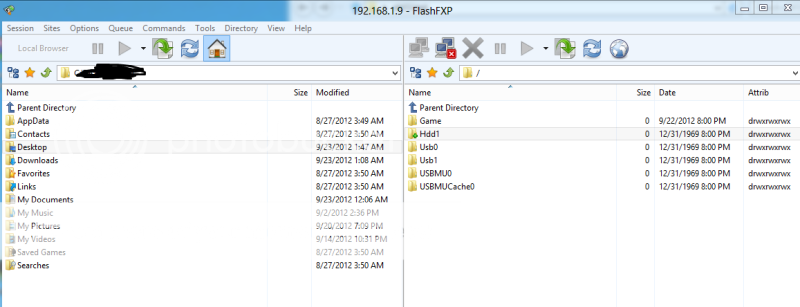

    Then hit connect. If all the settings are correct you will have two windows in the FTP app. One side your XBOX360 the other your PC. On the pc side we want to go to your desktop, on the Xbox360 side we want to go to hdd1
    [​IMG]

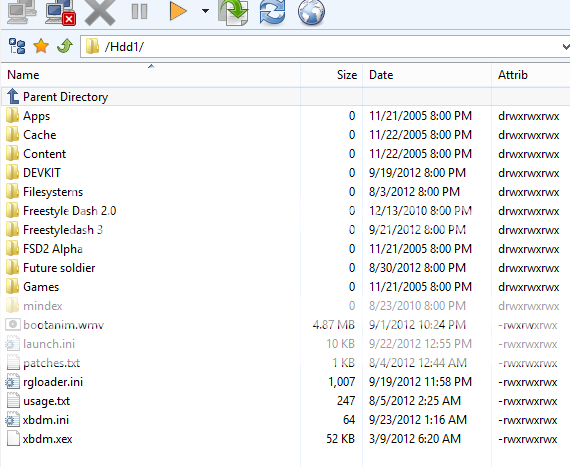

    Now we have those open we can see whats on our desktop and our Xbox Hdd root.
    What we need to do is drag and drop the freestyledash 3.0 folder from the pc side to XBox 360 side

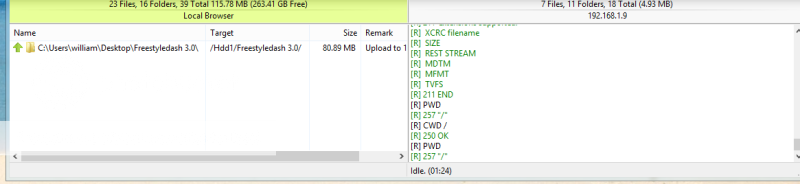

    On bottom left and right windows it will show the transfer going
    [​IMG]

    Now once that is complete we want to drag and drop the dashlaunch "launch.ini" from Xbox360 to PC desktop so we can edit it on PC.

    [​IMG]

    Now we want to open "launch.ini with notepad and we re going to edit the default launch path to our new Freestyledash 3.0 folder default.xex location like so

    [​IMG]

    Now before we save it and transfer it back to XBOX360
    MAKE SURE IT IS SPELLED CORRECTLY
    If not FSD 3 will not boot as default dash, you will get black screen or it will go to retail dash.

    Once you are 110% sure it is correct click "File" then "Save"

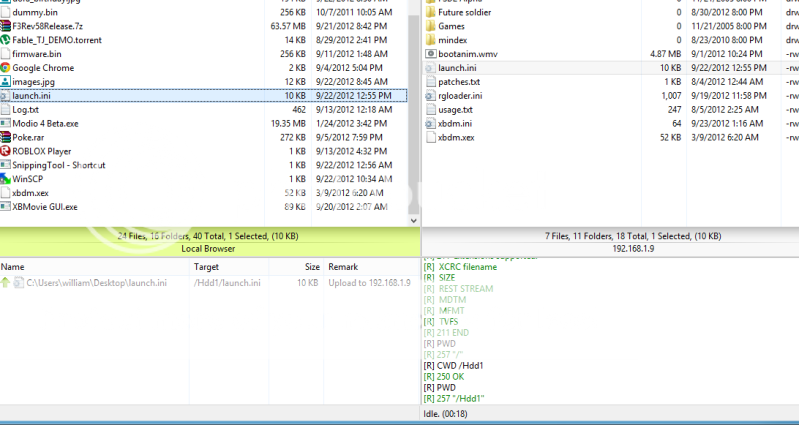

    Now back to the FTP app to transfer it back to XBOX360
    [​IMG]

    Once that is complete reboot your Xbox360 and ENJOY THE NEW FSD 3.0
    **********************************************************************

    Now you could always customize this to whatever FSD 3 folder name you like
    Example:
    Hdd:\FreeStyle\default.xex
    Hdd:\FSD 3\default.xex
    Hdd:\Apps\FSD 3\default.xex

    Our add it to whatever path you want if you like Xexmenu or retail dash as default.
    example

    [Paths]
    Default = Hdd:\Apps\Xexmenu\default.xex
    BUT_A =
    BUT_B = Hdd:\Apps\Dashlaunch 3.02\default.xex
    BUT_X = Hdd:\FreeStyle\default.xex
    BUT_Y =
    Start =
    Back =
    LBump =
    RThumb =
    LThumb =

    But the main thing is to make the launch.ini match the actual location on the xbox Hdd

    • Like Like x 6
  2. taimur

    taimur Lifetime Gold Lifetime Gold
    0/47

    Joined:
    Aug 9, 2012
    Messages:
    513
    Likes Received:
    39
    Trophy Points:
    0
    Gender:
    Male
    Console:
    Xbox
    Man loving fsd3 my question is does it start to initialize every time when it's loading like I notice fsd2.2 was instant on startup but this takes bit of time.

  3. sensi420

    sensi420 Contributor TeamXPG
    205/282

    Joined:
    May 20, 2012
    Messages:
    2,535
    Likes Received:
    5,110
    Trophy Points:
    205
    Location:
    In your kitchen drinking your MILK!!!
    Console:
    Xbox
    There is a animated gif on the intro that i believe is causing that lag.

  4. Bu

    Bullet Guest

    Another awesome tutorial, congrats on the tutor forum award

  5. extraginger

    extraginger Newbie
    0/47

    Joined:
    Aug 15, 2011
    Messages:
    72
    Likes Received:
    5
    Trophy Points:
    0
    Console:
    Xbox
    amazing tut, I noticed you have rgloader installed or you have the files in there at least. Does this work with a dev kernel? Because dashlaunch doesn't work with rgloader right? Thanks a lot, Extraginger

  6. sensi420

    sensi420 Contributor TeamXPG
    205/282

    Joined:
    May 20, 2012
    Messages:
    2,535
    Likes Received:
    5,110
    Trophy Points:
    205
    Location:
    In your kitchen drinking your MILK!!!
    Console:
    Xbox
    Yeah i use Rgloader 3.05... You can use Freestyledash but you have to delete the plugin folder.

  7. •Σиïgмλ•

    •Σиïgмλ• The Walrus Of Love XPG Developer Lifetime Gold
    235/282

    Joined:
    Jul 29, 2009
    Messages:
    5,020
    Likes Received:
    1,539
    Trophy Points:
    235
    Gender:
    Male
    Console:
    Xbox
    spot on tut and nice badge ya got there mentor ;)

    • Like Like x 2
  8. sensi420

    sensi420 Contributor TeamXPG
    205/282

    Joined:
    May 20, 2012
    Messages:
    2,535
    Likes Received:
    5,110
    Trophy Points:
    205
    Location:
    In your kitchen drinking your MILK!!!
    Console:
    Xbox
    Thanks for the badge Enigma

  9. ka

    kasek Newbie
    0/47

    Joined:
    Apr 4, 2012
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    0
    Console:
    Xbox
    great tutorial tyhanks

  10. madmaca

    madmaca Newbie
    0/47

    Joined:
    Sep 5, 2012
    Messages:
    109
    Likes Received:
    21
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Liverpool, England
    Console:
    Xbox
    nice tut buddy :)

  11. mickey79

    mickey79 Developer XPG Developer
    0/47

    Joined:
    Jan 26, 2012
    Messages:
    892
    Likes Received:
    189
    Trophy Points:
    0
    Gender:
    Male
    Location:
    Burbank, California
    Console:
    Xbox
    So I have a Question --- Do I need to DELETE the current FSD2.2 folder from my HDD1? Also, I have some plugins installed that are required by some trainers ... like the xbdm.xex that is required by the Raccoon City trainer .. do I have to get rid of those?

    Lastly, if things don't work out with FS3, how can I go back to FSD2.2? Just switch the launch in launch.ini?

    Thanks Guys!!

  12. Ro

    Rocky Guest

    Great TuT, Just followed it and had no problems at all. Thankyou!

  13. th

    thelostguy7 Newbie
    0/47

    Joined:
    Oct 21, 2012
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Console:
    Xbox
    Question. Neither the xbox neighborhood nor the flash fxp can find my xbox. I have it set up for wireless and my pc can play windows media center on it so I am wondering what I am doing wrong? Any help would be appreciated.

  14. sensi420

    sensi420 Contributor TeamXPG
    205/282

    Joined:
    May 20, 2012
    Messages:
    2,535
    Likes Received:
    5,110
    Trophy Points:
    205
    Location:
    In your kitchen drinking your MILK!!!
    Console:
    Xbox
    It has to be a RGH/Jtag or Dev and u need to get the IP address for your console and setup Flashxp or Neighborhood

  15. th

    thelostguy7 Newbie
    0/47

    Joined:
    Oct 21, 2012
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Console:
    Xbox
    I have my IP, and both neighborhood and fxp, but neither work. I just installed fsd3 through a usb drive but I can not find the launch.ini file. I have xexmenu 1.1 so it could be in any folder.

  16. sensi420

    sensi420 Contributor TeamXPG
    205/282

    Joined:
    May 20, 2012
    Messages:
    2,535
    Likes Received:
    5,110
    Trophy Points:
    205
    Location:
    In your kitchen drinking your MILK!!!
    Console:
    Xbox
    Launch.ini is created by Dashlaunch

  17. th

    thelostguy7 Newbie
    0/47

    Joined:
    Oct 21, 2012
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Console:
    Xbox
    ok for the noob in me where is that. When my xbox turns on it go straight to the standard xbox screen and I have to access xex through a quicklaunch app.
