How To Read / Write Xbox One NAND Filesystem

Bullet Dec 25, 2013

  1. Bu

    Bullet Guest

    This tutorial shows you how to correctly read / write the xbox one nand filesystem, courtesy of Team Xecutor.

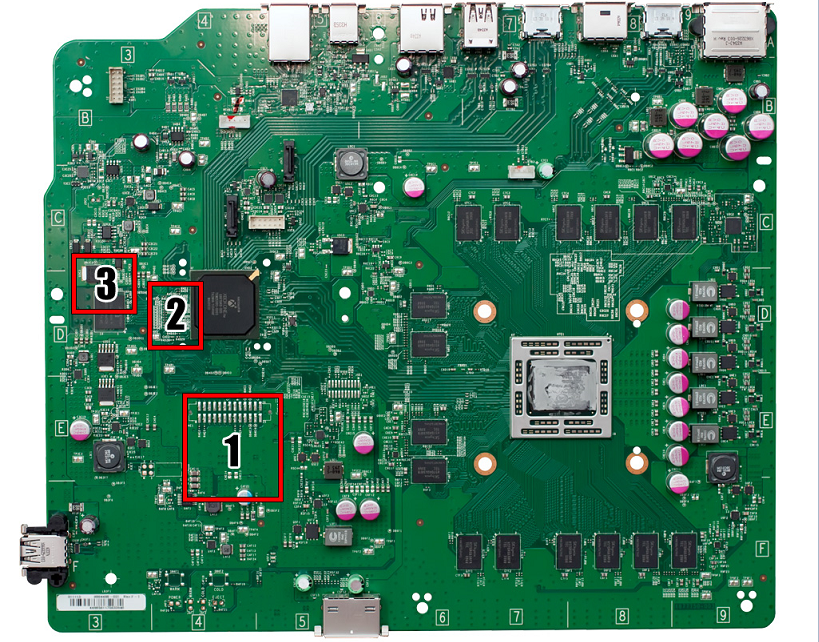

    [​IMG]

    [​IMG]

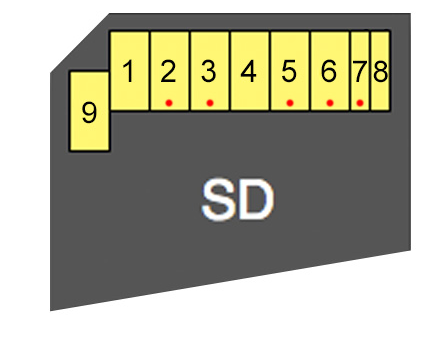

    SD Card Connections:

    [​IMG]

    Important:

    For the x2 GND wires use 12 awg
    For the other connections use 28 awg

    2 = CMD
    3 = GND
    5 = CLK
    6 = GND
    7 = DAT0

    Enable SMC_RESET (VERY IMPORTANT TO DO THIS FIRST!!)

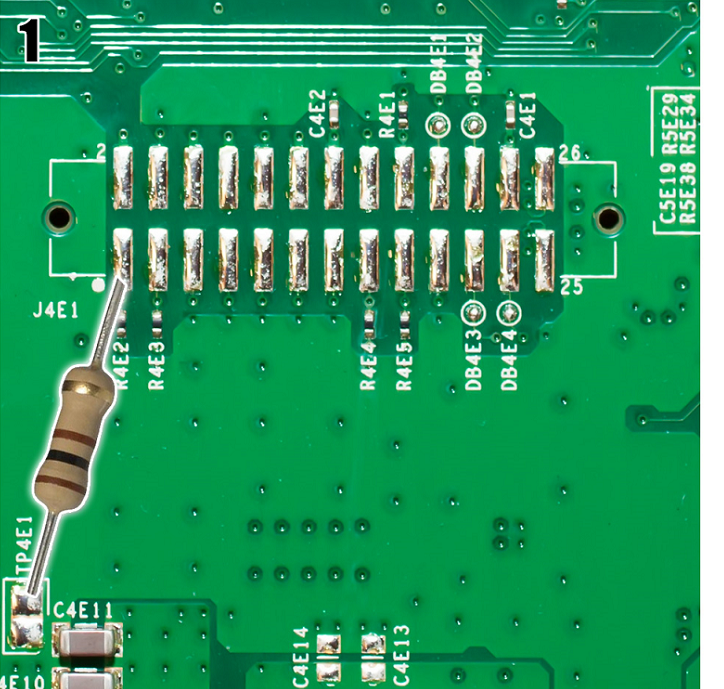

    Place a 200-300 Ohm resister between J4E1.1 and TP4E1

    [​IMG]

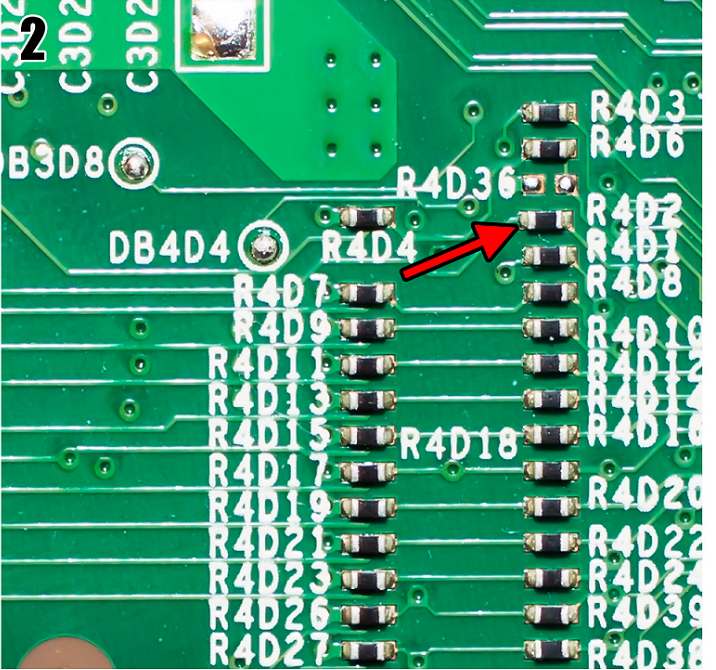

    Disconnect the SMC clock from the Southbridge by removing R4D2.
    Save the resistor as it is needed for the Xbox One to function. If you do lose it then a solder bridge should work as the value is 0 Ohms.

    [​IMG]

    NAND logic runs on the 1.8v rail and readers try to use 3.3v which is most of them don't work with the Xbox One NAND.

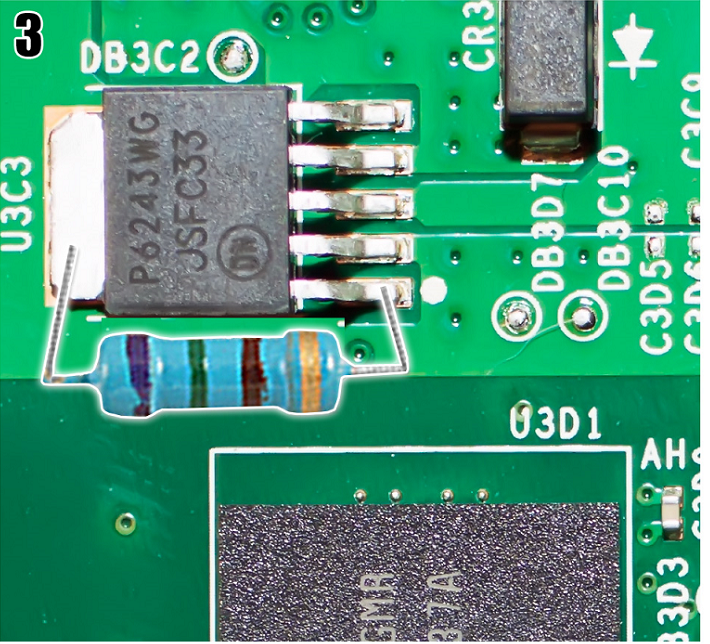

    Bridge a 700-800 Ohm resistor between Pin 1 of U3C3 and Ground. This should make an output 3v3 on the rail without damaging anything becuase the smc is held in reset, so it won't try to power anything on.

    [​IMG]

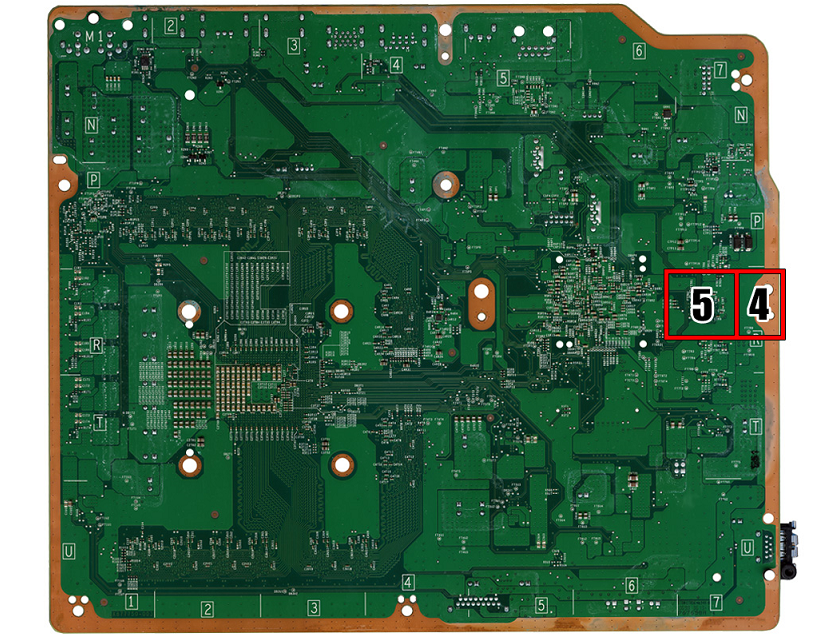

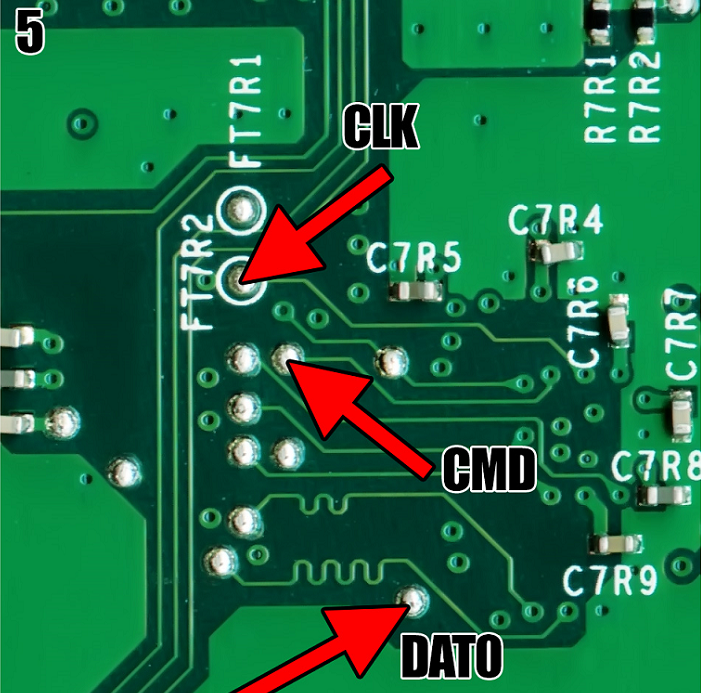

    Directly underneath the NAND on the underside of the mobo are access points that will let you easily solder the CMD,DAT0 and CLK lines.

    Everything works better when you hook everything up to the SD reader with everything turned off, then turn the Xbox One on and then plug in the SD reader.

    [​IMG]

    [​IMG]

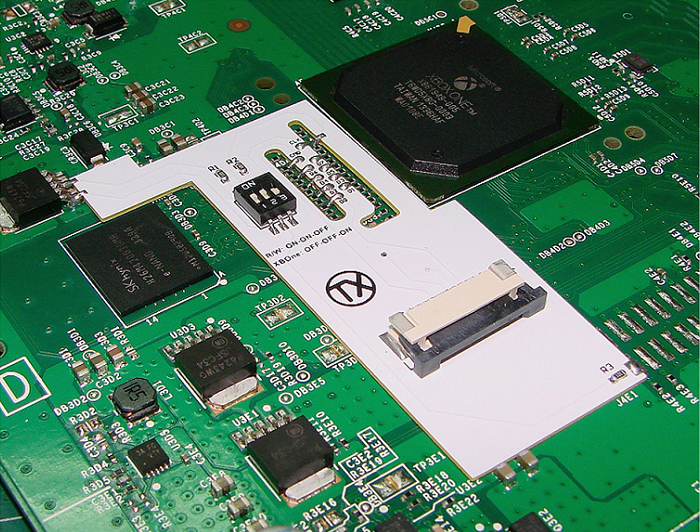

    Team Xecutor are already all over this !

    [​IMG]


    Credits:

    Tydye81, Juvenal,RF1911,RickyB82

    Source

    • Like Like x 9
  2. AD

    ADDZ Guest

    Oh my days lol, the encryption should be pretty good on this thing but there are some unread devs out there so who knows what if anything will come from it.

    • Like Like x 1
  3. KillerVidz

    KillerVidz Rocky BANNED
    85/94

    Joined:
    Feb 20, 2012
    Messages:
    3,312
    Likes Received:
    1,279
    Trophy Points:
    0
    Gender:
    Male
    Location:
    XPG-UK
    Console:
    Xbox One
    Nice one mate ;)

    +Happy Xmas :p

  4. eric22

    eric22 Member
    45/47

    Joined:
    Aug 8, 2009
    Messages:
    892
    Likes Received:
    149
    Trophy Points:
    45
    Gender:
    Male
    Console:
    Xbox
    Nice one dude, hope we can play some backups soon

  5. XPMaster

    XPMaster Lifetime XPG Lifetime Gold
    50/94

    Joined:
    Dec 9, 2013
    Messages:
    92
    Likes Received:
    9
    Trophy Points:
    50
    Gender:
    Male
    Location:
    UK
    Console:
    Xbox
    Very nice, progress is fast!

  6. Homura

    Homura Creator of Avalon XPG Developer Lifetime Gold
    85/94

    Joined:
    Mar 8, 2011
    Messages:
    857
    Likes Received:
    793
    Trophy Points:
    85
    Gender:
    Male
    Location:
    Wouldn't you like to know.
    Console:
    Xbox
    Nice info but gonna still need a decrypted nand dump + cpu key before anything good can happen. But since they made the xbone and ps4 both like a windows gaming pc they pretty much fucked up big time as it is basically windows 8.1 mobo (for xbone anyways) so yeah.. probably easier to exploit since it is basically a 1337 windows 8.1 gaming pc.
